HEADLIGHT ('80 D1)

KZ250D1 KZ250 1980 USA CANADA / MPH KPH

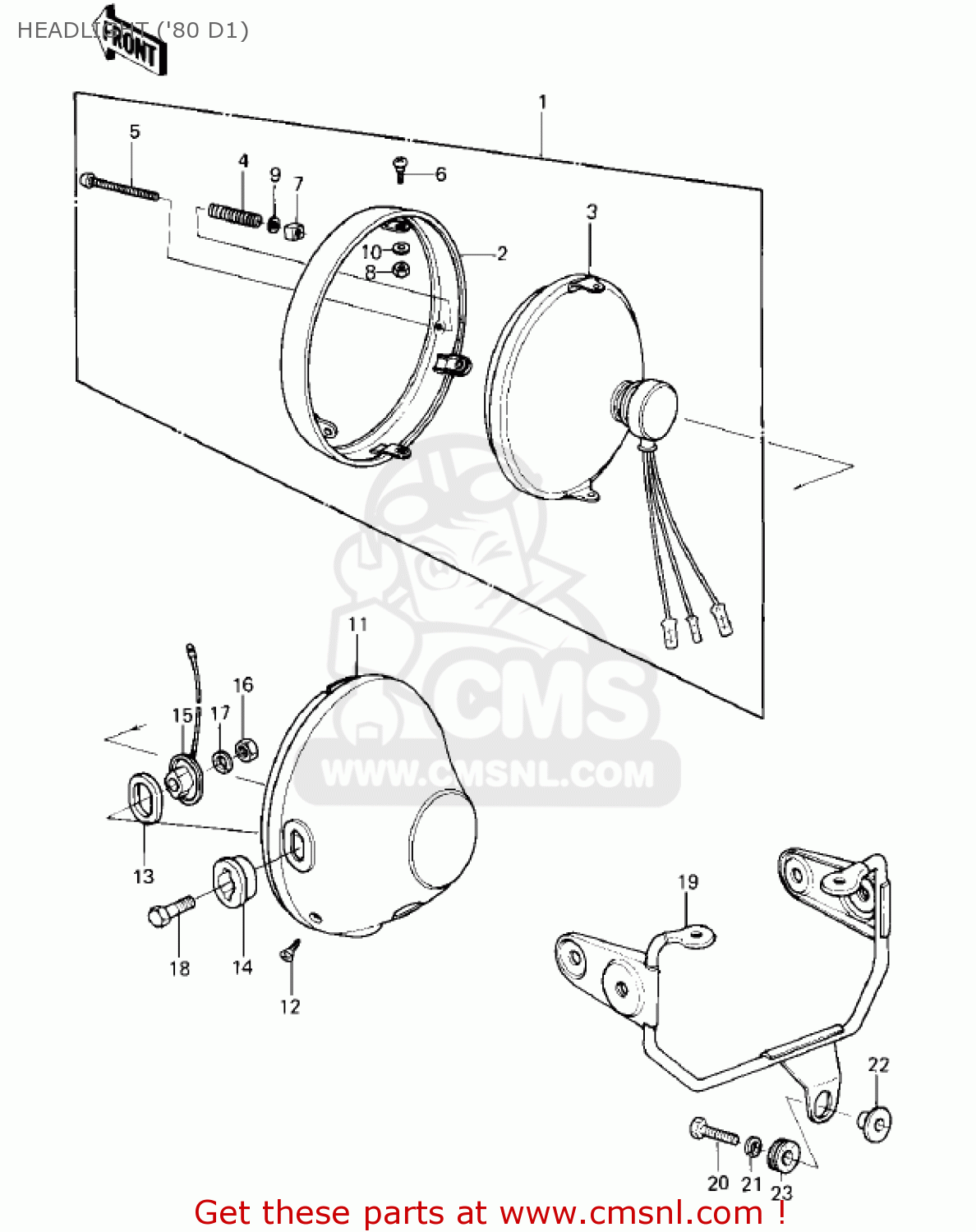

Headlight ('80 d1) diagram KZ250D1 KZ250 1980 USA CANADA / MPH KPH

HEADLIGHT ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

HEADLIGHT ('80 D1) KZ250D1 KZ250 1980 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

23003025
ref: 1

HEADLAMP,UNIT

€ 334.50

2

23006034
ref: 2

HEADLAMP RIM

€ 174.00

3

23007043
ref: 3

SEALED BEAM UNIT

€ 244.50

4

23014005
ref: 4

SPRING-FOCUS ADJUST

€ 2.50

5

23019021
ref: 5

SCREW-FORCUS ADJUST

€ 3.00

6

23019023
ref: 6

SCREW-PAN HEAD,5X12

€ 3.50

7

23020018
ref: 7

NUT,4MM,FOCUS ADJUST

€ 3.00

8

23020023
ref: 8

NUT,5MM

€ 3.00

9

23021004
ref: 9

WASHER,4.1X8X0.8

€ 2.00

10

23021012
ref: 10

WASHER

€ 3.00

11

230051013
ref: 11

BODY,HEAD LAMP

€ 84.00

12

23019022
ref: 12

SCREW-SPECIAL,5X14

€ 1.50

13

23066001
ref: 13

DAMPER

€ 8.00

14

23066005
ref: 14

DAMPER RUBBER

€ 1.00

15

23076005
ref: 15

COLLAR

€ 31.00

16

315B1000
ref: 16

NUT,10MM

€ 0.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

92007041
ref: 18

BOLT,HEX HEAD,10X30

€ 7.00

19

110341691
ref: 19

BRACKET,HEAD LAMP

€ 111.50

20

112G0625
ref: 20

BOLT-UPSET,6X25

€ 4.00

21

461F0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

92027251
ref: 22

COLLAR,L=13.1

€ 1.00

23

92075209
ref: 23

DAMPER RUBBER

€ 3.00
