TRANSMISSION ('82-'83 KE175-D4/D

KE175-D5 KE175 1983 USA CANADA

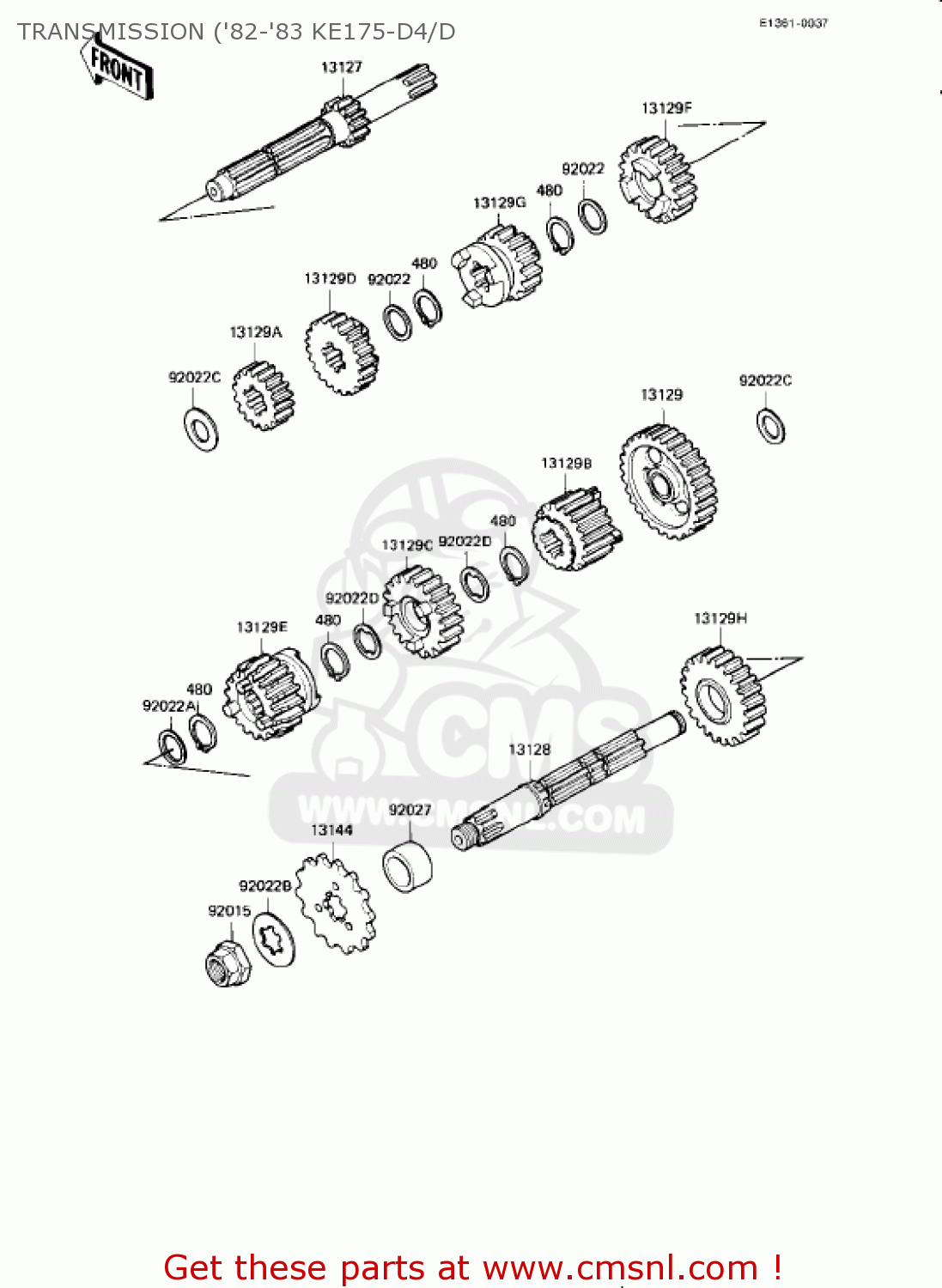

Transmission ('82-'83 ke175-d4/d diagram KE175-D5 KE175 1983 USA CANADA

TRANSMISSION ('82-'83 KE175-D4/D KE175-D5 KE175 1983 USA CANADA

TRANSMISSION ('82-'83 KE175-D4/D KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

13127

131271006
ref: 13127

SHAFT,DRIVE,12T

€ 85.50

13128

131281008
ref: 13128

SHAFT-TRANSMISSION OU

€ 122.50

13129

13129051
ref: 13129

LOW GEAR,OUTPUT SHAF

€ 25.50

13129A

131291075
ref: 13129A

GEAR,INPUT 2ND,17T

€ 51.00

13129B

131291134
ref: 13129B

TOP GEAR,DRIVEN,20T

€ 34.00

13129C

131291142
ref: 13129C

GEAR,OUTPUT 3RD,22T

€ 71.50

13129D

131291143
ref: 13129D

GEAR,INPUT 4TH,20T

€ 52.50

13129E

131291144
ref: 13129E

GEAR,OUTPUT 4TH,19T

€ 66.00

13129F

131291145
ref: 13129F

TOP GEAR,DRIVE,25T

€ 27.50

13129G

131291212
ref: 13129G

GEAR,INPUT 3RD,18T

€ 81.00

13129H

131291278
ref: 13129H

2ND GEAR,OUTPUT,28T

€ 47.50

13144

131441058
ref: 13144

SPROCKET-OUTPUT,14T

€ 20.00

92015

920151062
ref: 92015

NUT,14MM

€ 11.00

92022

92022106
ref: 92022

WASHER,22.5X30X1

€ 2.50

92022A

920221087
ref: 92022A

WASHER,22X28X2

€ 3.00

92022B

920221113
ref: 92022B

WASHER,SPLINED,20.3X3

€ 2.50

92022C

92022170
ref: 92022C

WASHER-THRUST

€ 6.00

92022D

92024031
ref: 92022D

WASHER,TOOTHED,22.5X3

€ 4.00

92027

920271083
ref: 92027

COLLAR,20X30X15

€ 8.00

480

480J2100
ref: 480

CIRCLIP-TYPE-C,21MM

€ 3.00
