CRANKCASE ('80-'81 KE175-D2/D3)

KE175-D5 KE175 1983 USA CANADA

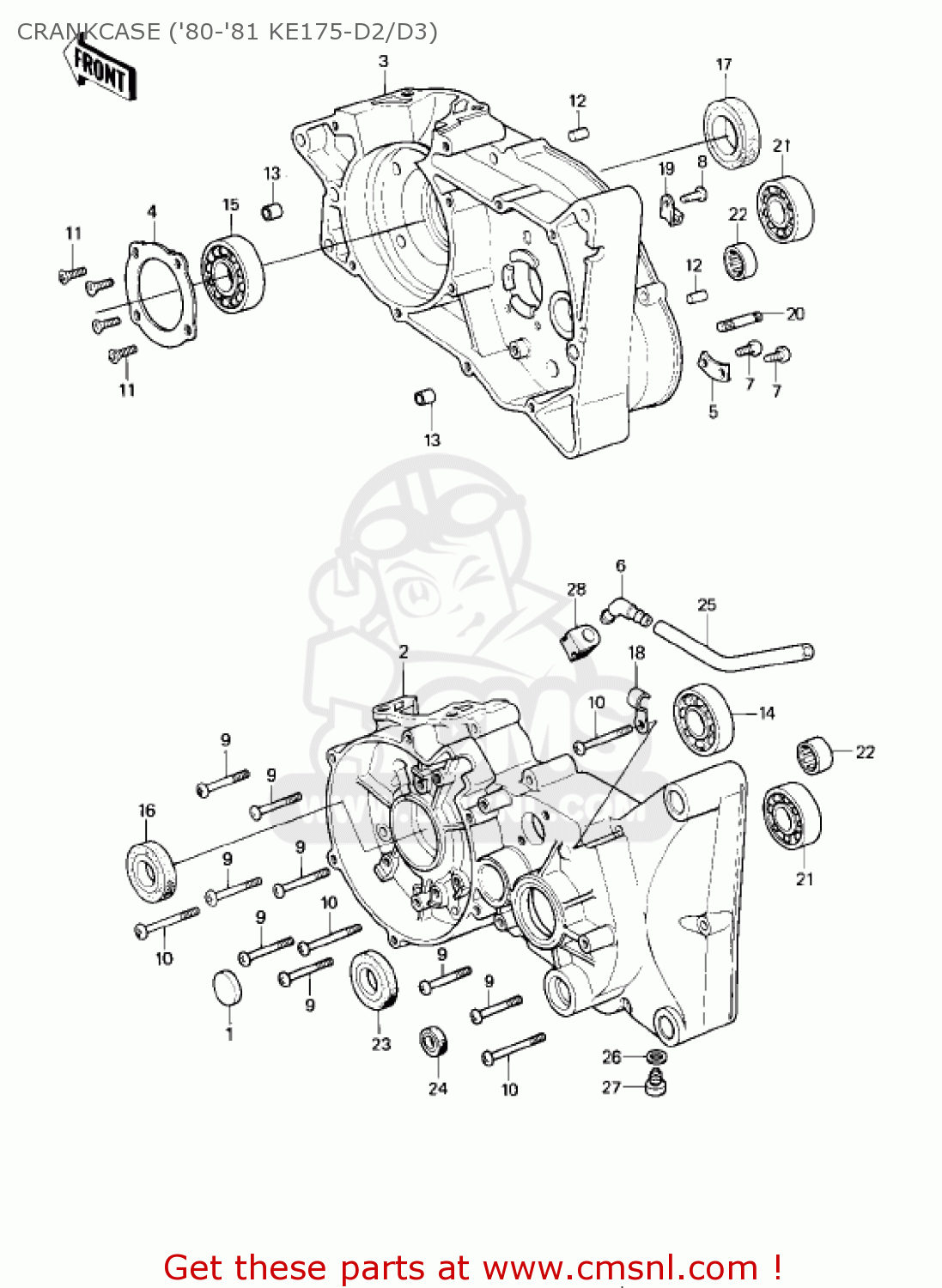

Crankcase ('80-'81 ke175-d2/d3) diagram KE175-D5 KE175 1983 USA CANADA

CRANKCASE ('80-'81 KE175-D2/D3) KE175-D5 KE175 1983 USA CANADA

CRANKCASE ('80-'81 KE175-D2/D3) KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

110121040
ref: 1

CAP,DRIVE SHAFT SEAL

€ 4.50

2

140021023
ref: 2

CRANKCASE,LH,F.BLACK

€ 370.00

3

140021079
ref: 3

CRANKCASE,RH,F.BLACK

€ 370.00

4

14014021
ref: 4

HOLDER-CRANK BEARING

€ 2.00

5

14014022
ref: 5

HOLDER-MISSION BERNG

€ 2.00

6

140691001
ref: 6

BREATHER

€ 17.50

7

220B0612
ref: 7

SCREW-PAN HEAD,6X12

€ 1.00

8

220B0614
ref: 8

SCREW-PAN HEAD,6X14

€ 2.00

9

220B0640
ref: 9

SCREW-PAN HEAD,6X40

€ 2.00

10

220B0660
ref: 10

SCREW-PAN HEAD,6X60

€ 2.50

11

221B0616
ref: 11

SCREW-CNTSNK HD,6X16

€ 0.50

12

551A0816
ref: 12

PIN-DOWEL,8X16

€ 0.50

13

552B1012
ref: 13

PIN,DOWEL,6.5X10X12

€ 1.00

14

601B6205
ref: 14

BEARING-BALL,#6205C3

€ 14.00

15

601B6305
ref: 15

BEARING-BALL,#6305C3

€ 30.00

16

920491250
ref: 16

SEAL-OIL

€ 12.00

17

653B324507
ref: 17

OIL SEAL,TB32457

€ 11.50

18

92037016
ref: 18

CLAMP,WIRING HARNESS

€ 1.50

19

92037157
ref: 19

CLAMP,OIL PIPE

€ 2.00

20

92043117
ref: 20

PIN,KICK PEDAL

€ 5.50

21

920451046
ref: 21

BEARING-BALL,6204C3

€ 22.00

22

92046026
ref: 22

BEARING-NEEDLE,#7E-HK

€ 24.50

23

92050039
ref: 23

OIL SEAL SC30426

€ 9.00

24

92051005A
ref: 24

OIL SEAL,TB13225.5

€ 5.50

25

92059061
ref: 25

PIPE-BREATHER

€ 3.00

26

92065058
ref: 26

GASKET, 10,5X16X1 (NAS)

€ 2.50

27

92067001
ref: 27

PLUG-OIL DRAIN

€ 3.00

28

92071042
ref: 28

GROMMET

€ 2.50
