SEAT ('80-'81 KE175-D2/D3)
KE175-D5 KE175 1983 USA CANADA

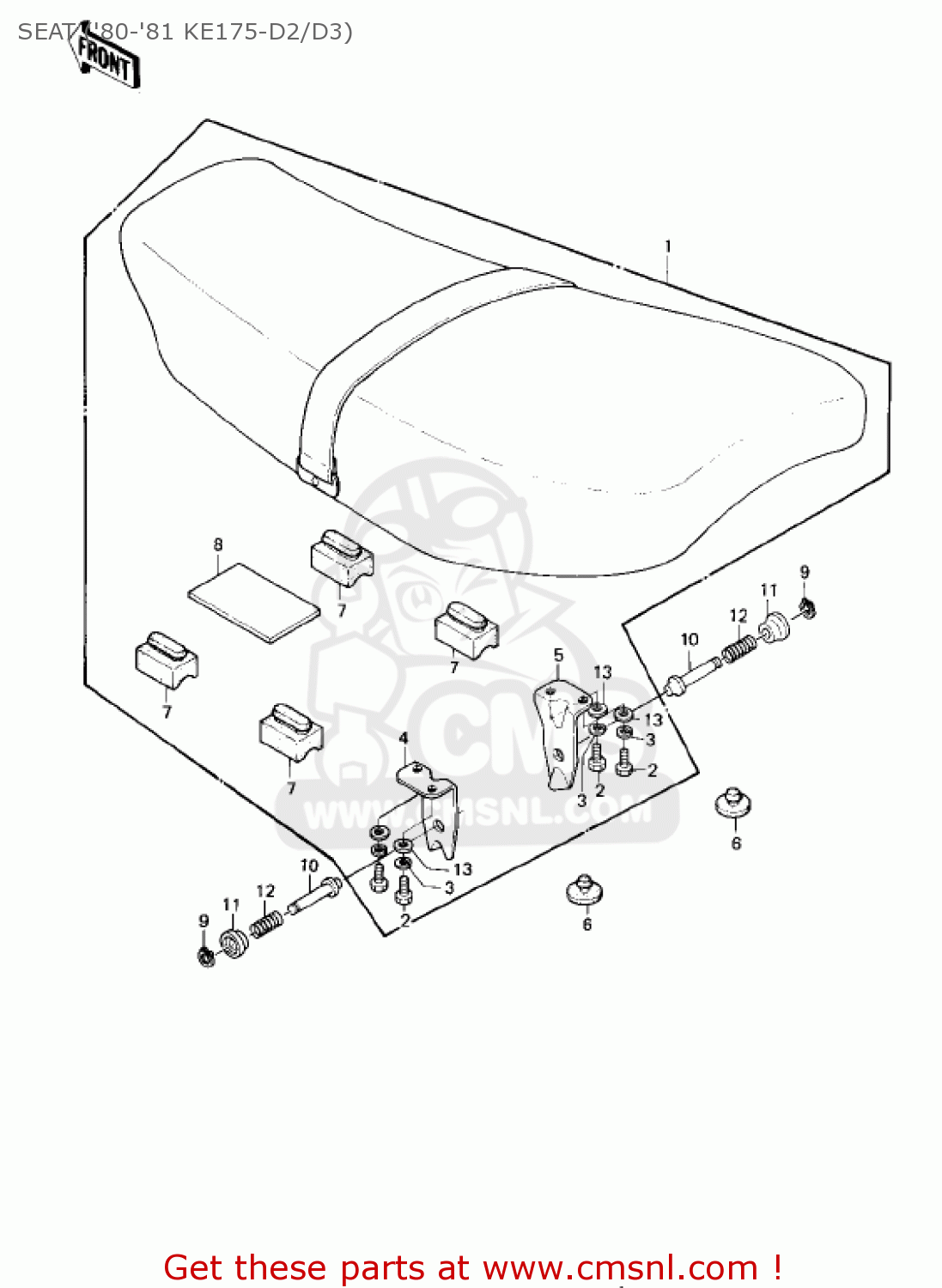

Seat ('80-'81 ke175-d2/d3) diagram KE175-D5 KE175 1983 USA CANADA
SEAT ('80-'81 KE175-D2/D3) KE175-D5 KE175 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
530011248
ref: 1
SEAT ASSEMBLY,WITH BAND
€ 257.00
2
112B0614
ref: 2
BOLT-UPSET 6X14
€ 2.50
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
320461030
ref: 4
BRACKET-SEAT,LH
€ 6.00
5
320461031
ref: 5
BRACKET-SEAT,RH
€ 6.00
6
92075099
ref: 6
DAMPER RUBBER
€ 3.50
7
92075216
ref: 7
DAMPER,SEAT
€ 3.00
8
92075224
ref: 8
DAMPER,RUBBER
€ 4.50
9
920331039
ref: 9
CIRCLIP,8M/M
€ 2.50
10
920431036
ref: 10
PIN,SEAT STOPPER
€ 3.50
11
920771007
ref: 11
KNOB,SEAT STOPPER
€ 3.00
12
920811135
ref: 12
SPRING,SEAT STOPPER
€ 2.00
13
411B0600
ref: 13
WASHER-PLAIN,6MM
€ 0.50
