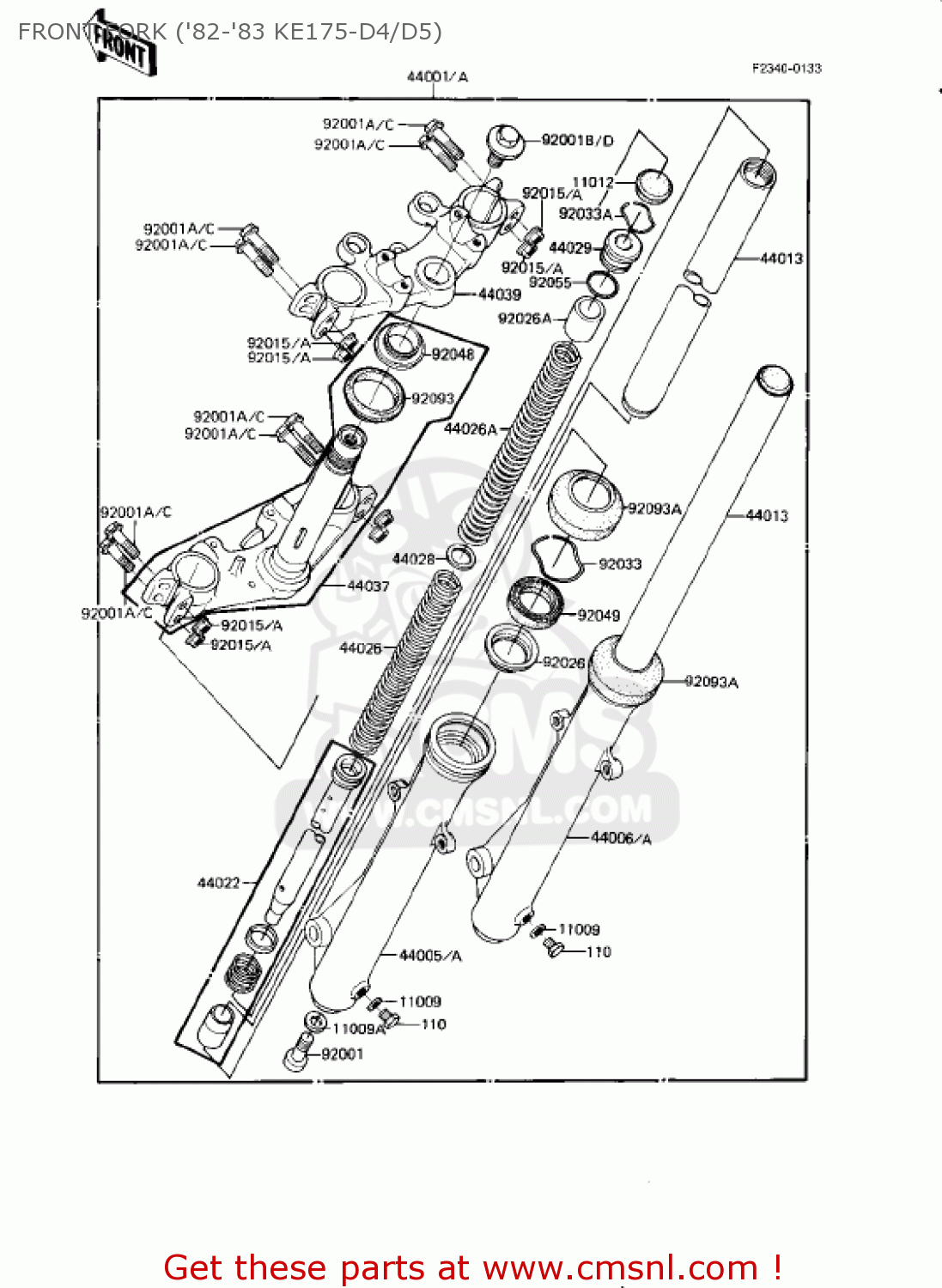

FRONT FORK ('82-'83 KE175-D4/D5)

ref

part #

description

quantity

11009

44045047
ref: 11009

GASKET,DRAIN PLUG (NAS)

€ 6.00

11009A

44045051
ref: 11009A

GASKET,FORK CYLINDER (NAS)

€ 4.00

11012

110121061
ref: 11012

CAP,RUBBER,FORK TOP

€ 9.50

44001

440011417
ref: 44001

FORK-FRONT

€ 658.50

44001A

440011417
ref: 44001A

FORK-FRONT

€ 658.50

44005

440051113
ref: 44005

PIPE-LEFT FORK OUTER

€ 148.00

44005A

440051113
ref: 44005A

PIPE-LEFT FORK OUTER

€ 148.00

44006

440061017
ref: 44006

TUBE,R.H,FORK OUTER

€ 113.50

44006A

440061113
ref: 44006A

PIPE-RIGHT FORK OUTER

€ 146.00

44013

440131014
ref: 44013

TUBE,FORK INNER

€ 179.50

44022

440221015
ref: 44022

CYLINDER FORK

€ 43.50

44026

440261019
ref: 44026

SPRING,FORK LOWER

€ 17.00

44026A

440261034
ref: 44026A

SPRING,FORK,UPPER

€ 17.00

44028

440281005
ref: 44028

WASHER,FORK SPRING

€ 2.50

44029

440291012
ref: 44029

SEAT,FORK SPRING

€ 14.00

44037

440371012
ref: 44037

STEM,STEERING

€ 177.00

44039

440391020
ref: 44039

HEAD,STEERING STEM

€ 115.50

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92001A

920011136
ref: 92001A

BOLT,8X45

€ 7.00

92001B

920011741
ref: 92001B

BOLT,STEERING STEM HD

€ 6.50

92001C

920011579
ref: 92001C

BOLT,FLANGED,8X45

€ 3.00

92001D

920011741
ref: 92001D

BOLT,STEERING STEM HD

€ 6.50

92015

920151022
ref: 92015

NUT, 8MM

€ 0.50

92015A

920151055
ref: 92015A

NUT,8M/M

€ 3.00

92026

920261028
ref: 92026

SPACER,OUTER TUBE

€ 4.50

92026A

920261054
ref: 92026A

COLLAR,FORK SPRING

€ 6.50

92033

920331022
ref: 92033

RING,OIL SEAL STOPPER

€ 4.00

92033A

920331023
ref: 92033A

CIRCLIP

€ 3.00

92048

92047010
ref: 92048

CONE-STERNG BERG LOW

€ 10.00

92049

920491268
ref: 92049

SEAL-OIL,FORK

€ 25.50

92055

920551060
ref: 92055

RING-O,SPRING SEAT

€ 3.50

92093

44010027
ref: 92093

SEAL,STEERING STEM

€ 7.50

92093A

920931017
ref: 92093A

DUST SHIELD,FORK

€ 18.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50
