REAR HUB/BRAKE/CHAIN ('80-'81 KE

KE175-D5 KE175 1983 USA CANADA

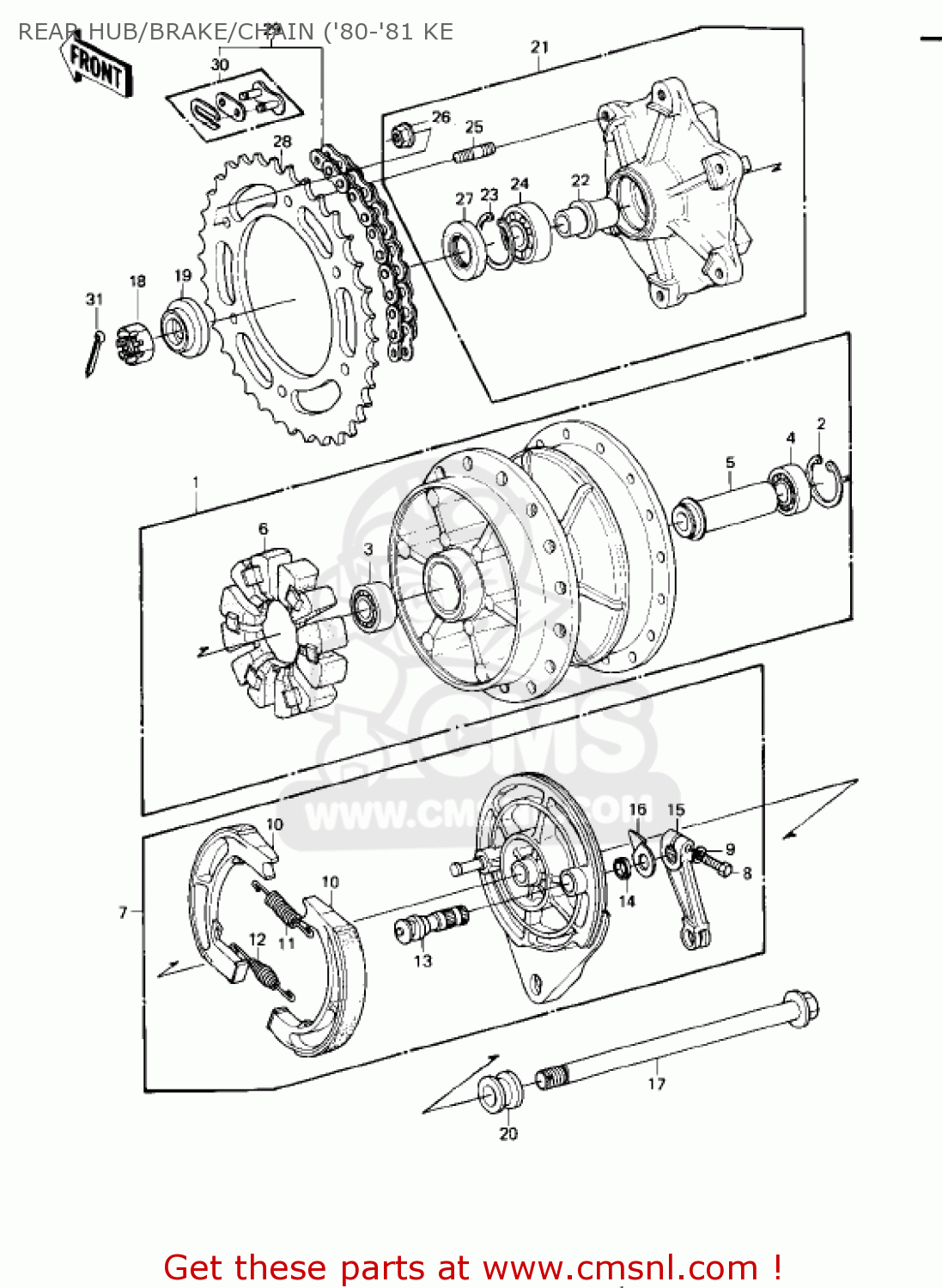

Rear hub/brake/chain ('80-'81 ke diagram KE175-D5 KE175 1983 USA CANADA

REAR HUB/BRAKE/CHAIN ('80-'81 KE KE175-D5 KE175 1983 USA CANADA

REAR HUB/BRAKE/CHAIN ('80-'81 KE KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

410341015
ref: 1

DRUM ASSY,REAR BRAKE

€ 320.50

2

481J3500
ref: 2

CIRCLIP-TYPE-C,35MM

€ 1.00

3

601B6202
ref: 3

BEARING-BALL,#6202C3

€ 14.50

4

601B6202U
ref: 4

BEARING-BALL,#6202UC3

€ 19.50

5

920271099
ref: 5

COLLAR,L=86

€ 13.00

6

920751068
ref: 6

DAMPER,SHOCK,RR HUB

€ 34.50

7

410351017
ref: 7

PANEL ASSY,REAR BRAKE

€ 232.00

8

112G0625
ref: 8

BOLT-UPSET,6X25

€ 4.00

9

410B0600
ref: 9

WASHER-PLAIN-SMALL,6M

€ 0.50

10

410481012
ref: 10

SHOE,BRAKE (MCA)

€ 26.00

11

920811766
ref: 11

SPRING,BRAKE SHOE

€ 5.50

12

920811550
ref: 12

SPRING,BRAKE SHOE

€ 6.00

13

410501011
ref: 13

CAM-BRAKE

€ 25.00

14

41051001
ref: 14

DUST SHIELD-BRAKE CAM

€ 2.50

15

410531013
ref: 15

LEVER-BRAKE CAM

€ 32.50

16

41085017
ref: 16

INDICATOR,BRAKE SHOE

€ 7.50

17

410681103
ref: 17
~F/NO. 002973

AXLE,RR,L=266

€ 60.50

17

410681103
ref: 17
F/NO. 002974~

AXLE,RR,L=266

€ 60.50

18

920151407
ref: 18
~F/NO. 002973

NUT,14MM

€ 6.50

18

42045020
ref: 18
F/NO. 002974~

NUT,14MM

€ 6.50

19

920271100
ref: 19

COLLAR,AXLE,RR,L=21

€ 16.00

20

920271101
ref: 20

COLLAR,R.AXLE,L=16M/M

€ 8.00

21

420331007
ref: 21

COUPLING ASSY,R.HUB

€ 113.00

22

420361020
ref: 22

SLEEVE,RR HUB COUPLIN

€ 15.50

23

920331041
ref: 23

CIRCLIP,42MM

€ 4.00

24

601B6004
ref: 24

BEARING-BALL,#6004C3

€ 10.50

25

920041015
ref: 25

STUD,8X17

€ 2.50

26

920151022
ref: 26

NUT, 8MM

€ 0.50

27

92050060
ref: 27

OIL SEAL,RR HUB BRNK

€ 12.00

28

420411050
ref: 28

SPROCKET,REAR,44T

€ 29.50

29

920571096
ref: 29

CHAIN,DRV,EK428SH-PG

€ 36.00

30

920581015
ref: 30

JOINT-CHAIN,EK428SH

€ 3.50

31

550D3030
ref: 31
F/NO. 002974~

PIN-COTTER,3.0X30

€ 1.50
