GEAR CHANGE DRUM & FORKS ('80-'8

KE175-D5 KE175 1983 USA CANADA

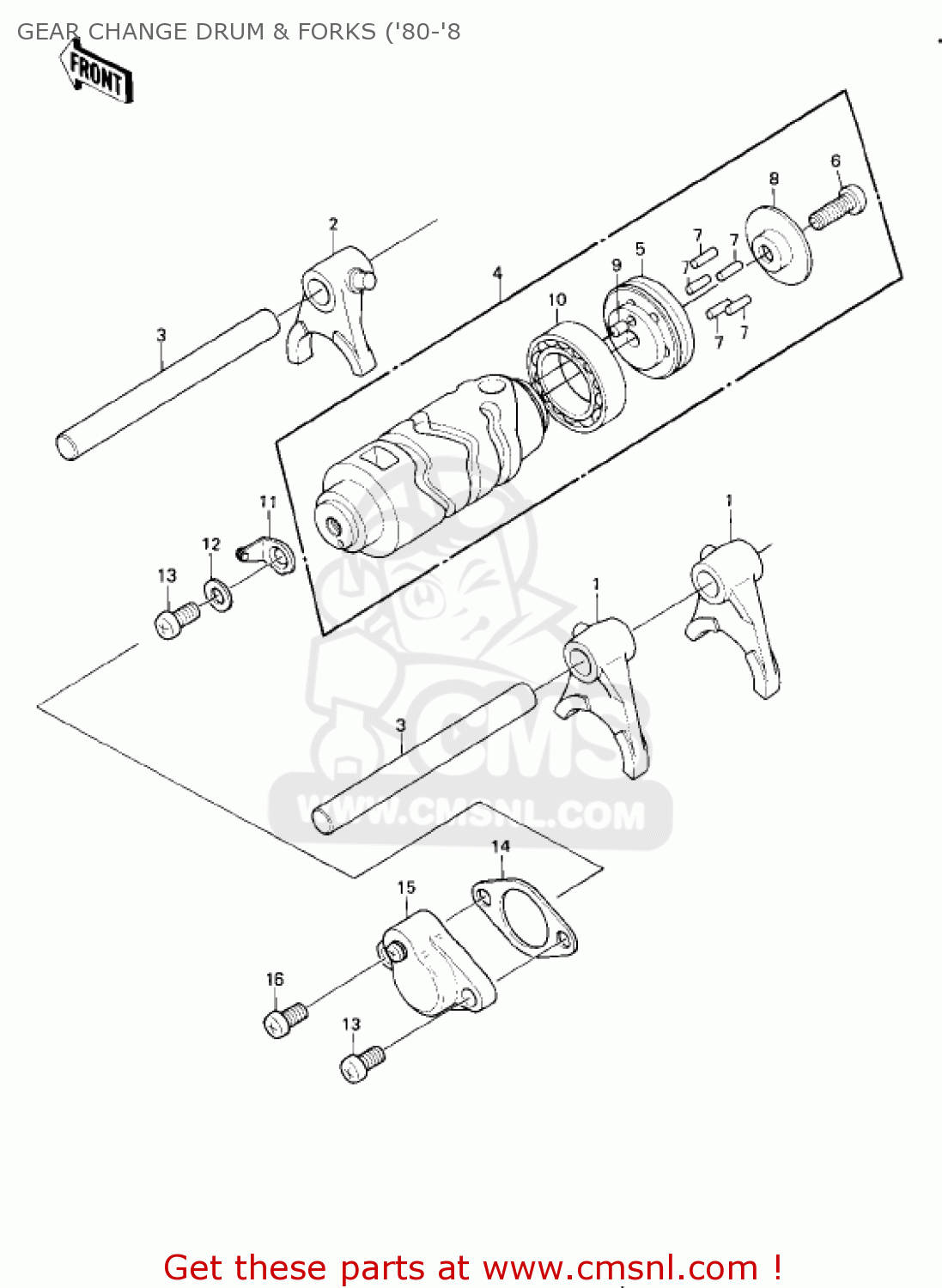

Gear change drum & forks ('80-'8 diagram KE175-D5 KE175 1983 USA CANADA

GEAR CHANGE DRUM & FORKS ('80-'8 KE175-D5 KE175 1983 USA CANADA
GEAR CHANGE DRUM & FORKS ('80-'8 KE175-D5 KE175 1983 USA CANADA
GEAR CHANGE DRUM & FORKS ('80-'8 KE175-D5 KE175 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
131401013
ref: 1
FORK-SHIFT,LOW,2ND,3R
€ 59.50
2
131401014
ref: 2
FORK-SHIFT,4TH&TOP
131401014
€ 56.50
3
490471060
ref: 3
ROD-SHIFT,10X102
€ 12.00
4
132391029
ref: 4
~E/NO.007908
DRUM ASSY,GEAR CHANGE
€ 50.50
4
132391039
ref: 4
E/NO.007909~
DRUM ASSY,GEAR CHANGE
€ 75.00
5
130911070
ref: 5
~E/NO.007908
HOLDER,DRUM PIN
€ 17.50
5
130911082
ref: 5
E/NO.007909~
HOLDER,CHANGE DRUM PI
€ 18.50
6
220B0630
ref: 6
~E/NO.007908
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
6
120S0630
ref: 6
E/NO.007909~
BOLT-SOCKET,6X30,BLAC
120S0630
€ 1.00
7
92042042
ref: 7
PIN,DOWEL,4X14.8
92042042
€ 2.50
8
13142008
ref: 8
PLATE-CHANGE DRUM PIN
13142008
€ 4.00
9
610A0406
ref: 9
ROLLER,4X6
610A0406
€ 2.50
10
92045036
ref: 10
~E/NO.007908
BEARING-BALL,#6905
92045036
€ 29.00
10
601B6004
ref: 10
E/NO.007909~
BEARING-BALL,#6004C3
601B6004
€ 10.50
11
210071003
ref: 11
ROTOR,TOP & NEUTRAL
210071003
€ 4.50
12
410B0600
ref: 12
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
13
220B0616
ref: 13
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
14
13146002
ref: 14
GASKET,NEUTRAL SWITCH (NAS)
13146002
€ 2.50
15
131511001
ref: 15
SWITCH-COMP,NEUTRAL
131511001
€ 9.50
16
220B0616
ref: 16
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
