TAILLIGHT ('80-'81 KE175-D2/D3)

KE175-D5 KE175 1983 USA CANADA

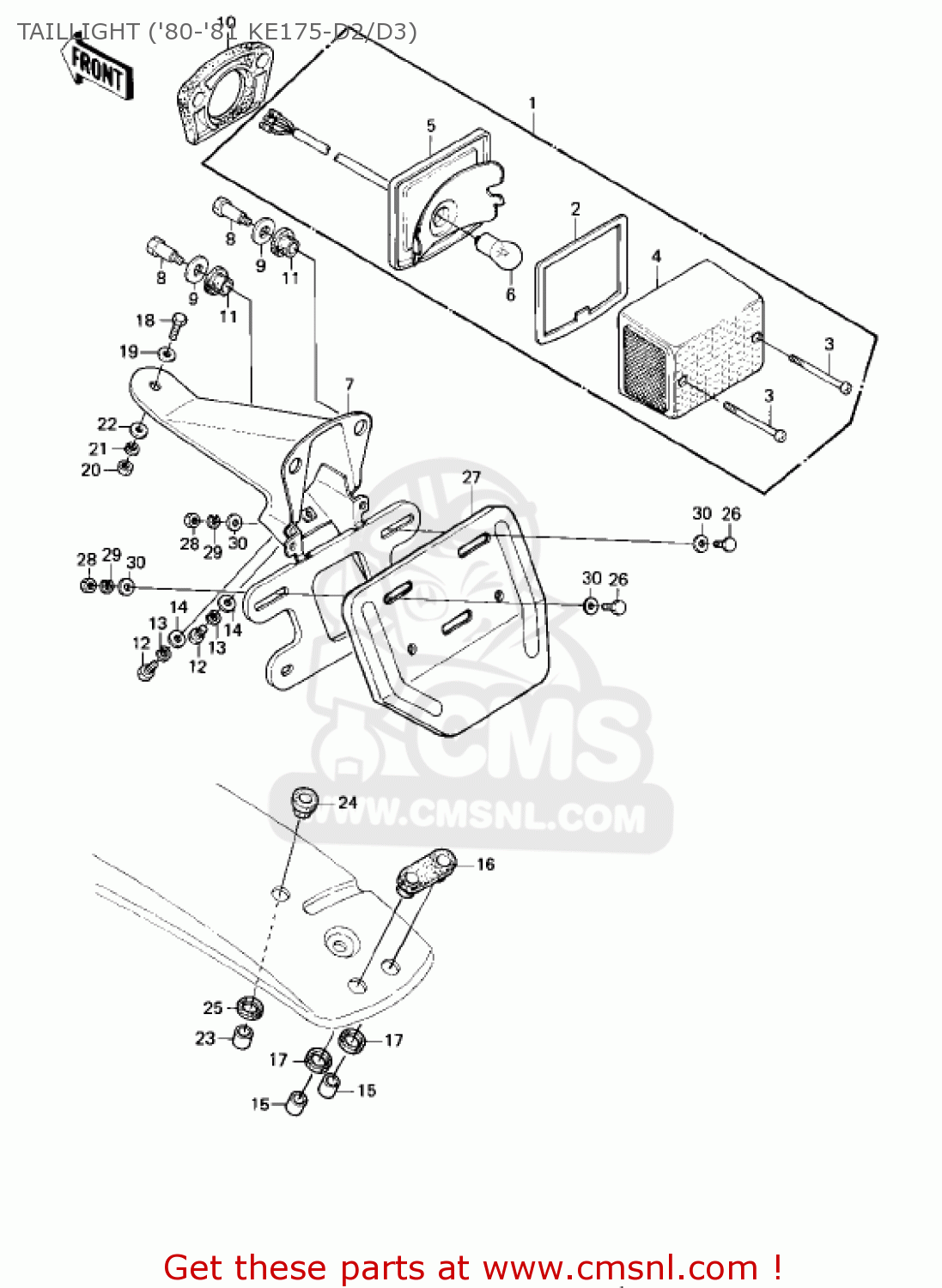

Taillight ('80-'81 ke175-d2/d3) diagram KE175-D5 KE175 1983 USA CANADA

TAILLIGHT ('80-'81 KE175-D2/D3) KE175-D5 KE175 1983 USA CANADA

TAILLIGHT ('80-'81 KE175-D2/D3) KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

230251006
ref: 1

TAIL LAMP UNIT

€ 83.50

1

230251032
ref: 1

TAIL LAMP

€ 83.50

2

110091078
ref: 2

GASKET,TAIL LAMP LENS (NAS)

€ 4.50

3

220R0440
ref: 3

SCREW-PAN-CROS,4X40

€ 3.00

4

230261003
ref: 4

LENS,TAIL LAMP

€ 50.50

5

230271020
ref: 5

BODY-COMP-TAIL LAMP

€ 71.50

6

92069074
ref: 6

BULB,6V-32X3CP

€ 4.50

7

230361010
ref: 7

LICENSE PLATE BRACKET

€ 62.00

8

920011118
ref: 8

BOLT,HEX HEAD

€ 4.50

9

920221561
ref: 9

WASHER,8.5X20X1.6

€ 2.50

10

920751094
ref: 10

DAMPER,TAIL LAMP

€ 10.00

11

920751095
ref: 11

DAMPER

€ 2.00

12

112G0630
ref: 12

BOLT-UPSET

€ 1.00

13

461F0600
ref: 13

WASHER-SPRING,6MM

€ 0.50

14

92022125
ref: 14

WASHER,6.5X20X1.6

€ 1.00

15

92027156
ref: 15

COLLAR-BATTERY CASE

€ 3.00

16

920751005
ref: 16

DAMPER,TAIL LAMP

€ 3.00

17

92075310
ref: 17

DAMPER,RUBBER

€ 2.50

18

112G0630
ref: 18

BOLT-UPSET

€ 1.00

19

411B0600
ref: 19

WASHER-PLAIN,6MM

€ 0.50

20

311B0600
ref: 20

NUT,6MM

€ 0.50

21

461F0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

92022125
ref: 22

WASHER,6.5X20X1.6

€ 1.00

23

92027256
ref: 23

COLLAR,2.5X5X9.8

€ 2.50

24

920751004
ref: 24

DAMPER,TAIL LAMP

€ 2.50

25

92075310
ref: 25

DAMPER,RUBBER

€ 2.50

26

112G0620
ref: 26

BOLT 6X20

€ 1.00

27

110341117
ref: 27

BRACKET,LICENSE PLATE

€ 12.50

28

311B0600
ref: 28

NUT,6MM

€ 0.50

29

461F0600
ref: 29

WASHER-SPRING,6MM

€ 0.50

30

92022125
ref: 30

WASHER,6.5X20X1.6

€ 1.00
