Genuine KE Kawasaki Parts delivered quickly!

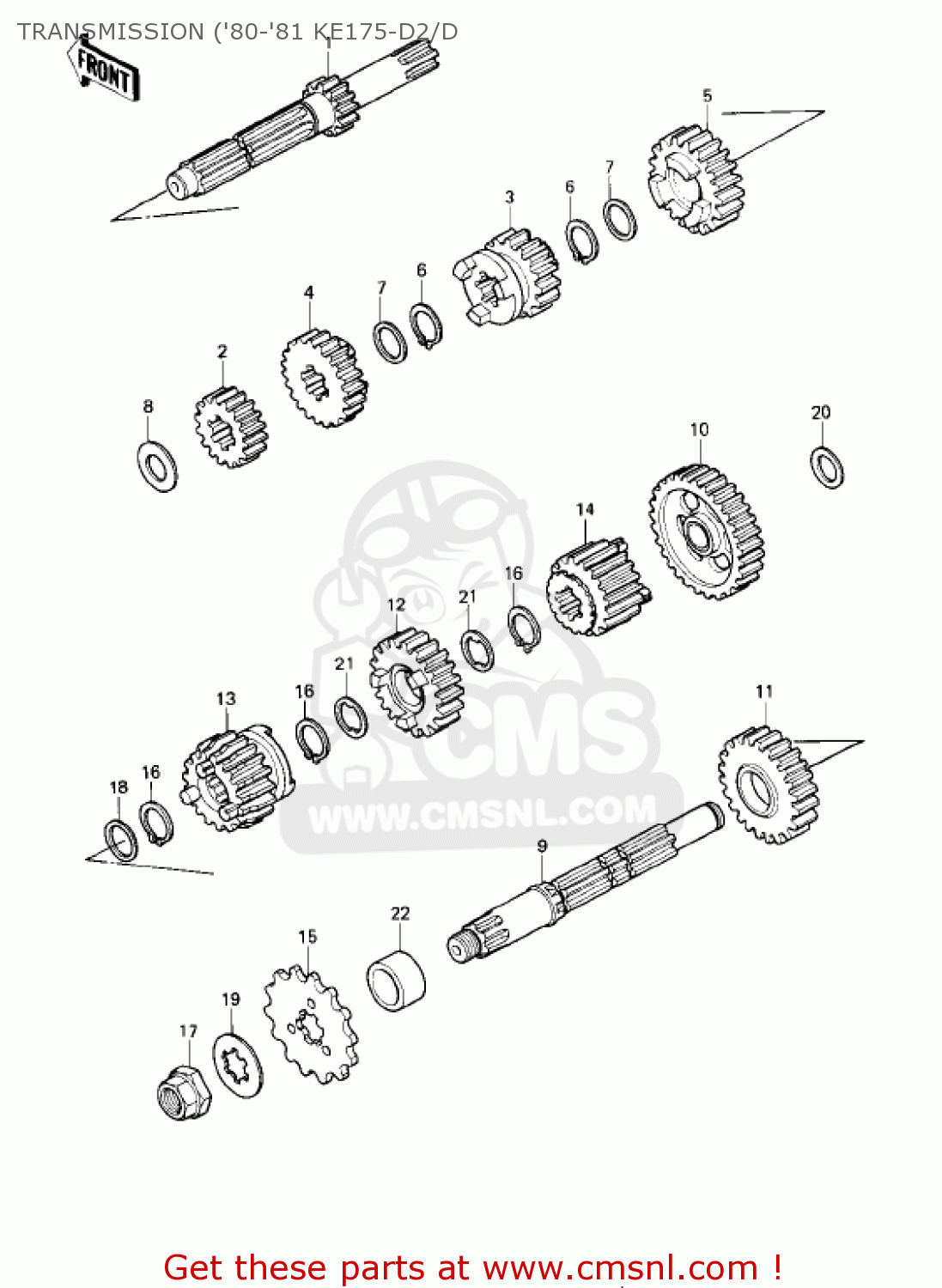

TRANSMISSION ('80-'81 KE175-D2/D

KE175-D5 KE175 1983 USA CANADA

Transmission ('80-'81 ke175-d2/d diagram KE175-D5 KE175 1983 USA CANADA

TRANSMISSION ('80-'81 KE175-D2/D KE175-D5 KE175 1983 USA CANADA
TRANSMISSION ('80-'81 KE175-D2/D KE175-D5 KE175 1983 USA CANADA
TRANSMISSION ('80-'81 KE175-D2/D KE175-D5 KE175 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
131271006
ref: 1
SHAFT,DRIVE,12T
131271006
€ 85.50
2
131291075
ref: 2
GEAR,INPUT 2ND,17T
€ 51.00
3
131291212
ref: 3
~E/NO.001900
GEAR,INPUT 3RD,18T
€ 81.00
3
131291212
ref: 3
E/NO.001901~
GEAR,INPUT 3RD,18T
€ 81.00
4
131291143
ref: 4
GEAR,INPUT 4TH,20T
€ 52.50
5
131291145
ref: 5
TOP GEAR,DRIVE,25T
€ 27.50
6
480J2100
ref: 6
CIRCLIP-TYPE-C,21MM
480J2100
€ 3.00
7
92022106
ref: 7
WASHER,22.5X30X1
92022106
€ 2.50
8
92022170
ref: 8
WASHER-THRUST
92022170
€ 6.00
9
131281008
ref: 9
SHAFT-TRANSMISSION OU
€ 122.50
10
13129051
ref: 10
LOW GEAR,OUTPUT SHAF
13129051
€ 25.50
11
131291278
ref: 11
2ND GEAR,OUTPUT,28T
€ 47.50
12
131291142
ref: 12
GEAR,OUTPUT 3RD,22T
€ 71.50
13
131291144
ref: 13
GEAR,OUTPUT 4TH,19T
€ 66.00
14
131291134
ref: 14
TOP GEAR,DRIVEN,20T
€ 34.00
15
131441058
ref: 15
SPROCKET-OUTPUT,14T
131441058
€ 20.00
16
480J2100
ref: 16
CIRCLIP-TYPE-C,21MM
480J2100
€ 3.00
17
920151062
ref: 17
NUT,14MM
920151062
€ 11.00
18
9200221087
ref: 18
UNAVAILABLE IN PRICE BOOK
€ 0.00
19
920221113
ref: 19
WASHER,SPLINED,20.3X3
920221113
€ 2.50
20
92022170
ref: 20
WASHER-THRUST
92022170
€ 6.00
21
92024031
ref: 21
WASHER,TOOTHED,22.5X3
92024031
€ 4.00
22
920271083
ref: 22
COLLAR,20X30X15
920271083
€ 8.00
