FRAME

KE175-D5 KE175 1983 USA CANADA

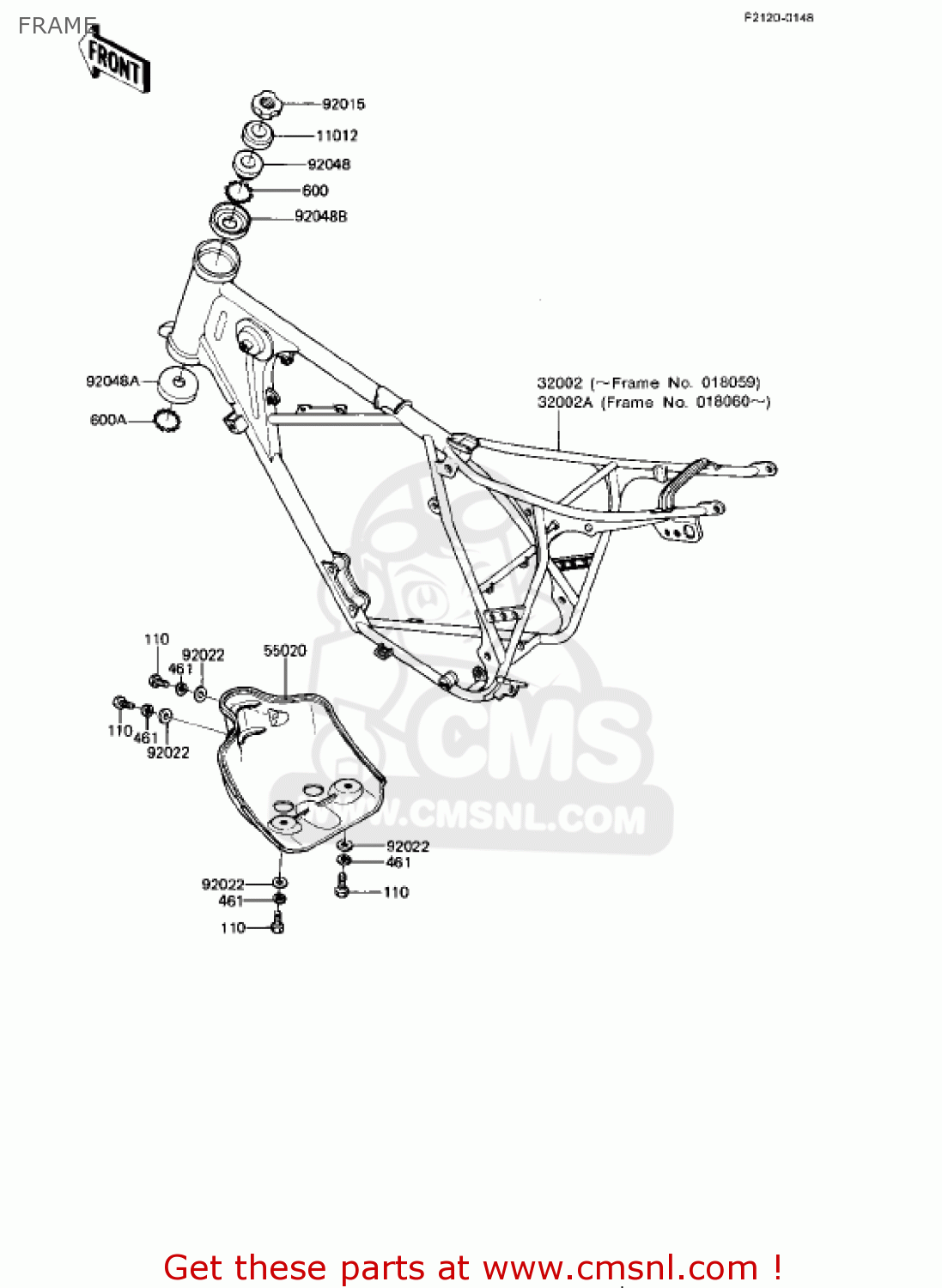

Frame diagram KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

46098018
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021142
ref: 32002

FRAME

€ 432.00

32002A

320021482
ref: 32002A

FRAME-COMP,US (Canada)

€ 0.00

55020

550201025
ref: 55020

GUARD,ENGINE

€ 19.00

92015

92090022
ref: 92015

NUT,STEERING LOCK,25M

€ 18.50

92022

92022240
ref: 92022

WASHER,7X18X1.2,BLACK

€ 1.00

92048

92047014
ref: 92048

RACE,STEERING STEM BE

€ 12.50

92048A

92048005
ref: 92048A

RACE-STEERING BEARING

€ 11.50

92048B

92048009
ref: 92048B

RACE,STRG STM

€ 14.00

110

112G0616
ref: 110

BOLT UPSET,6X16

€ 1.00

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

600A

600A0800
ref: 600A

BALL-STEEL,1/4

€ 0.50
