KICKSTARTER MECHANISM ('80-'81 K

KE175-D5 KE175 1983 USA CANADA

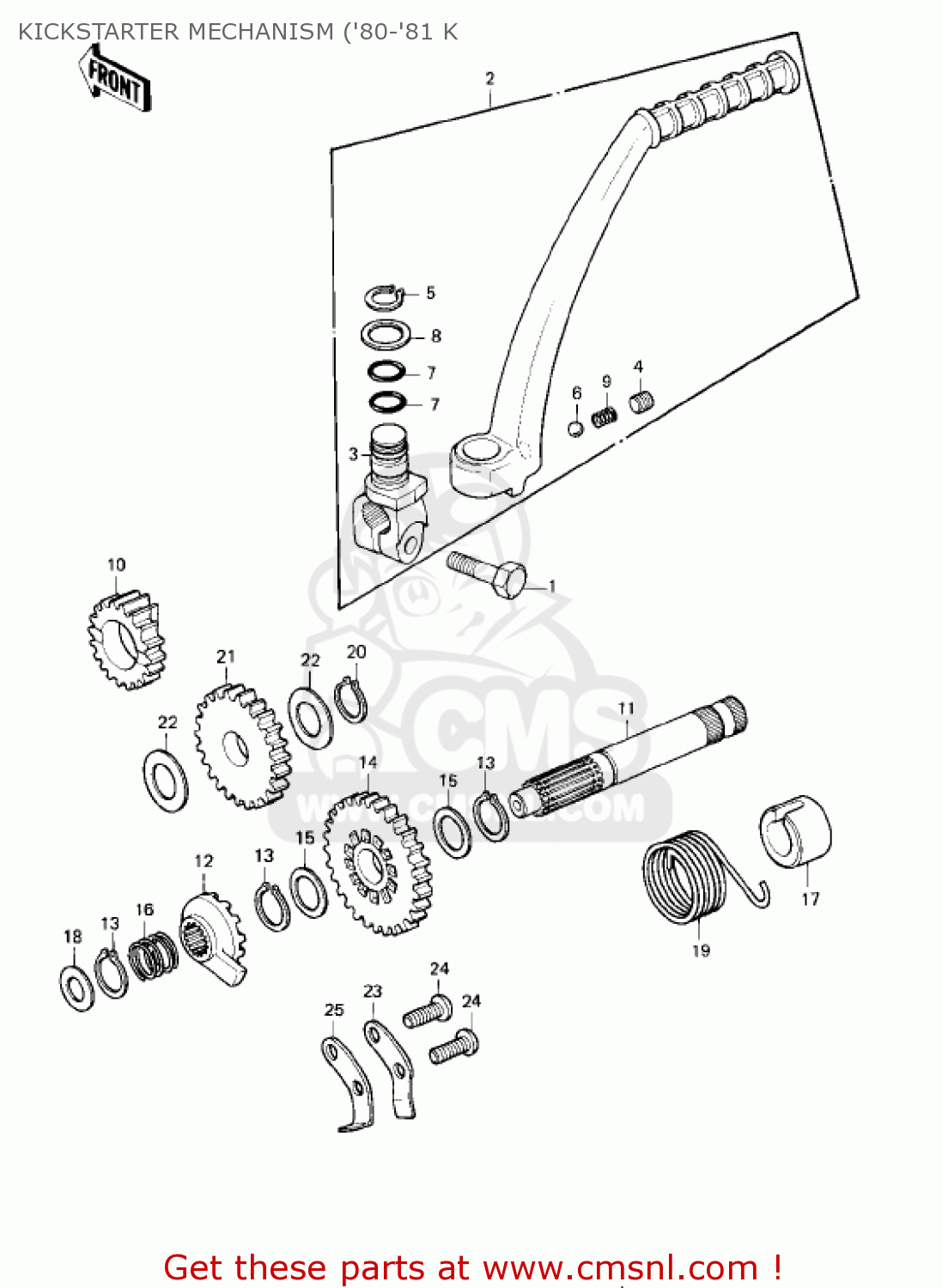

Kickstarter mechanism ('80-'81 k diagram KE175-D5 KE175 1983 USA CANADA

KICKSTARTER MECHANISM ('80-'81 K KE175-D5 KE175 1983 USA CANADA

KICKSTARTER MECHANISM ('80-'81 K KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

115G0825
ref: 1

BOLT-HEX,HEAD,8X25

€ 3.00

2

130641027
ref: 2

LEVER-ASSY-KICK,PEDAL

€ 134.00

3

130615001
ref: 3

BOSS,KICK PEDAL

€ 41.00

4

290Q0808
ref: 4

SCREW,8X8

€ 2.50

5

482K0100
ref: 5

CIRCLIP-TYPE-E,10MM

€ 0.50

6

600A0800
ref: 6

BALL-STEEL,1/4

€ 0.50

7

670B2012
ref: 7

O RING,12MM

€ 1.00

8

920221019
ref: 8

WASHER,15.2X20X1

€ 3.50

9

92081020
ref: 9

SPRING-KICK PEDAL

€ 2.50

10

13075006
ref: 10

GEAR-SPUR,KICKSTARTER

€ 36.00

11

130661006
ref: 11

SHAFT-KICK

€ 60.50

12

130781001
ref: 12

RATCHET

€ 44.50

13

480J1600
ref: 13

CIRCLIP-TYPE-C,16MM

€ 2.50

14

590511010
ref: 14

GEAR,KICKSTARTER,34T

€ 38.50

15

92022315
ref: 15

WASHER, 16.8X22X0.5

€ 4.00

16

92081122
ref: 16

SPRING,RATCHET

€ 6.00

17

130701007
ref: 17

GUIDE,KICK SPRING

€ 6.50

18

92022269
ref: 18

WASHER,PLAIN

€ 1.00

19

92082005
ref: 19

SPRING,KICKSTARTER

€ 13.50

20

480J1500
ref: 20

CIRCLIP-TYPE-C,15MM

€ 1.00

21

590511019
ref: 21

GEAR-SPUR,IDLE,29T

€ 37.00

22

92022169
ref: 22

WASHER-PLAIN

€ 3.00

23

132061002
ref: 23

GUIDE-KICK

€ 5.50

24

220B0616
ref: 24

SCREW-PAN HEAD,6X16

€ 2.50

25

320851027
ref: 25

STOPPER,KICKSTARTER

€ 5.50
