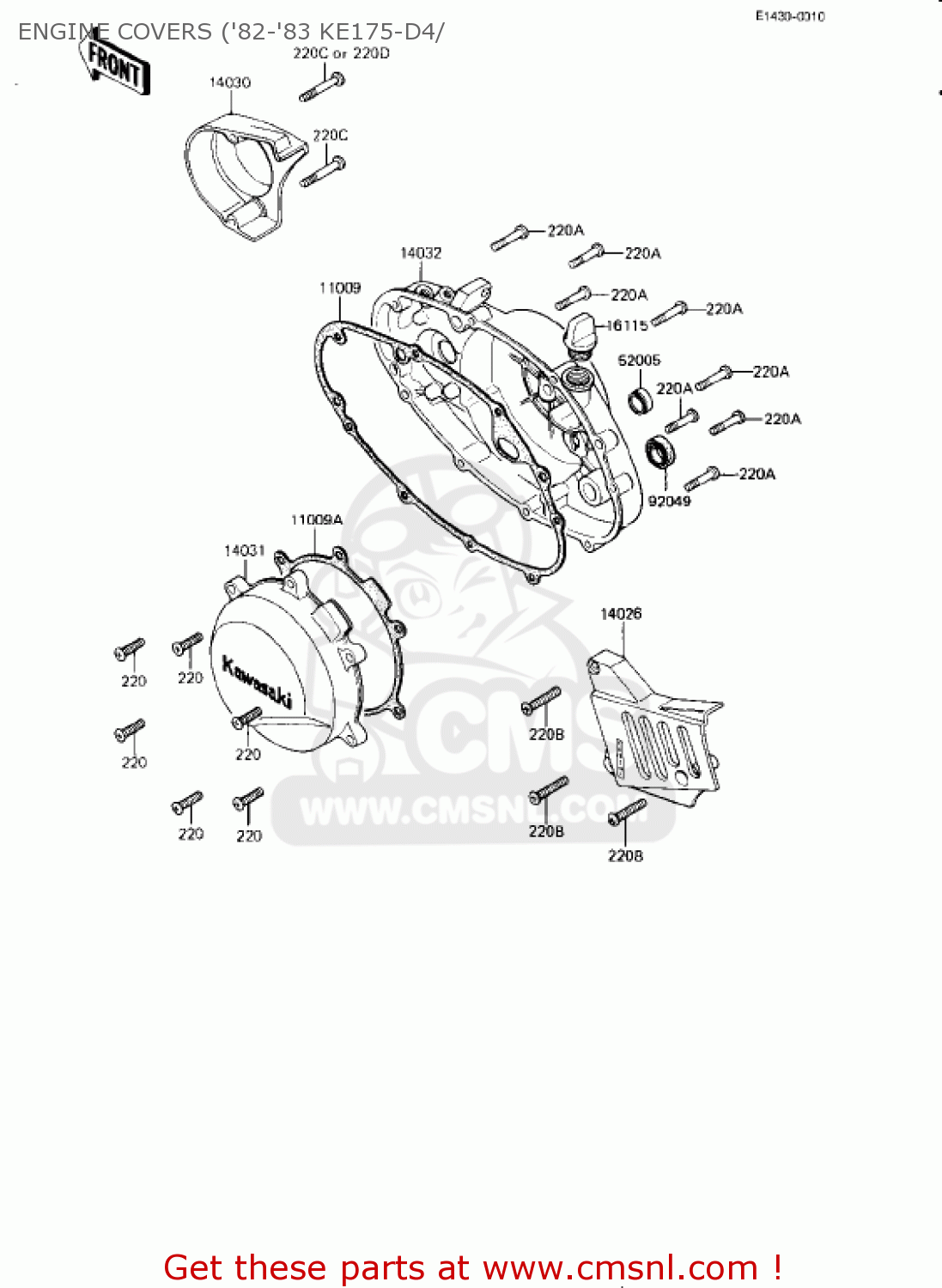

ENGINE COVERS ('82-'83 KE175-D4/

KE175-D5 KE175 1983 USA CANADA

Engine covers ('82-'83 ke175-d4/ diagram KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091062
ref: 11009

GASKET,CLUTCH COVER (MCA)

€ 18.00

11009A

110091063
ref: 11009A

GASKET,MAGNETO COVER (MCA)

€ 9.00

14026

140261067
ref: 14026

COVER-CHAIN,F.BLACK

€ 12.00

14030

140301010
ref: 14030

OIL PUMP COVER

€ 17.00

14031

140311016
ref: 14031

COVER-GENERATOR

€ 47.50

14032

140321007
ref: 14032

COVER-CLUTCH

€ 173.50

16115

16115018
ref: 16115

PLUG,OIL FILLER

€ 7.00

52005

520051005
ref: 52005

GAUGE,OIL LEVEL

€ 10.50

92049

92051003
ref: 92049

OIL SEAL TB16267

€ 6.00

220

220B0625
ref: 220

SCREW-PAN HEAD,6X25

€ 1.50

220A

220B0630
ref: 220A

SCREW-PAN HEAD,6X30

€ 2.50

220B

220B0635
ref: 220B

SCREW-PAN HEAD,6X35

€ 1.00

220C

220B0640
ref: 220C

SCREW-PAN HEAD,6X40

€ 2.00

220D

220B0650
ref: 220D

SCREW-PAN HEAD,6X50

€ 2.00
