IGNITION SWITCH/LOCKS/REFLECTORS

KE175-D5 KE175 1983 USA CANADA

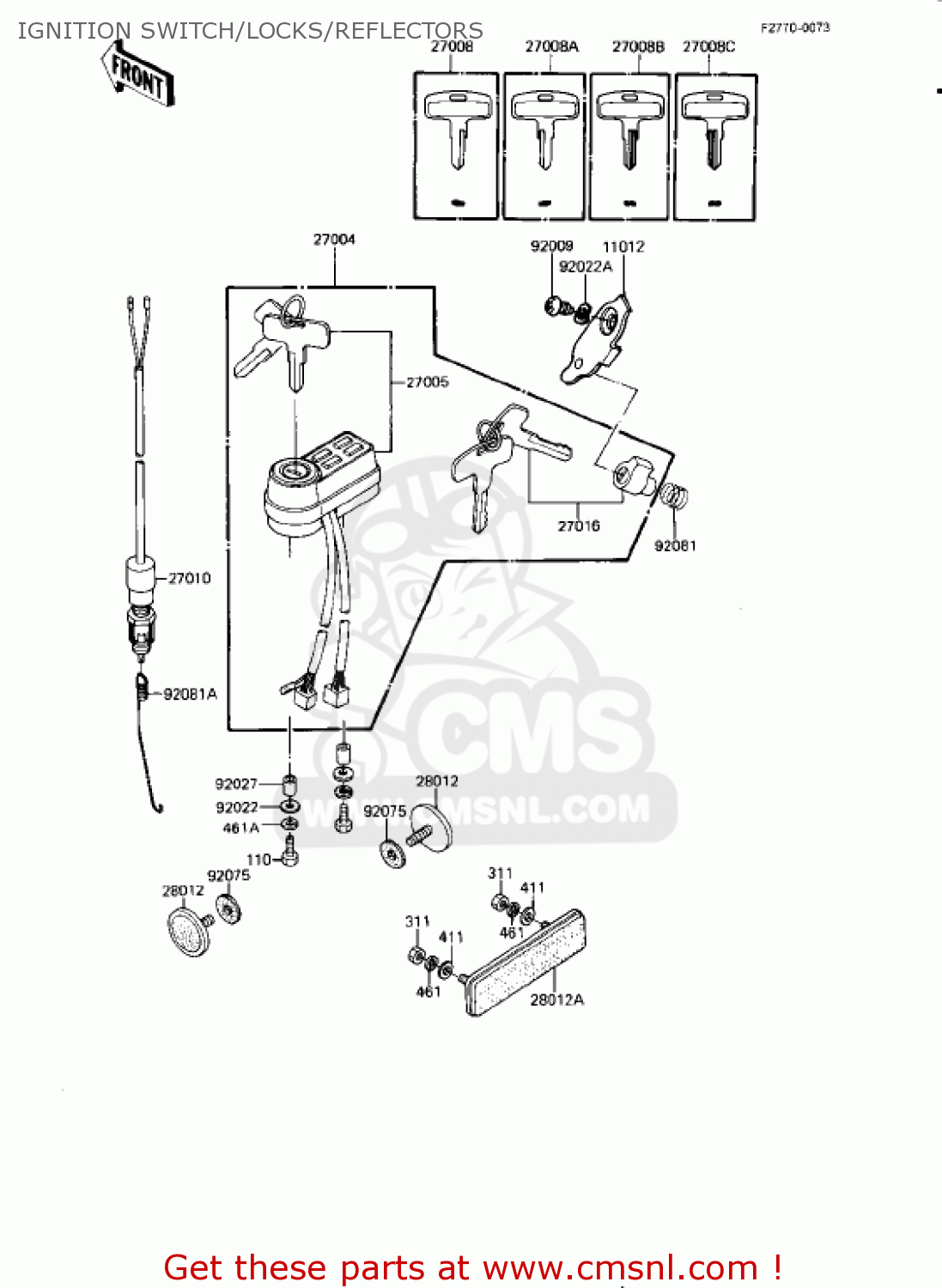

Ignition switch/locks/reflectors diagram KE175-D5 KE175 1983 USA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS KE175-D5 KE175 1983 USA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121134
ref: 11012

CAP,STEERING LOCK

€ 4.50

27004

270045018
ref: 27004

LOCK ASSEMBLY,KE175-D2

€ 88.00

27005

270051005
ref: 27005

IGNITION SWITCH ASSEMBLY

€ 85.00

27008

270081024
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 14.00

27008A

270081025
ref: 27008A
(OPTION)

KEY-LOCK,BLANK

€ 14.00

27008B

270081026
ref: 27008B
(OPTION)

KEY-LOCK,BLANK

€ 10.50

27008C

270081027
ref: 27008C
(OPTION)

KEY-LOCK,BLANK

€ 10.50

27010

27010025
ref: 27010

SWITCH,BRAKE LAMP

€ 18.50

27016

27016042
ref: 27016

LOCK-ASSY,STEERING

€ 36.00

28012

28012016
ref: 28012

REFLECTOR REFLEX

€ 16.00

28012A

280121005
ref: 28012A

REFLECTOR-REFLEX,RR

€ 16.50

92009

92008007
ref: 92009

SCREW-TAPPING

€ 2.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92022A

92097003
ref: 92022A

WASHER

€ 2.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92075

92094011
ref: 92075

DAMPER,REFLECTOR

€ 3.00

92081

27032001
ref: 92081

SPRING-STEERING LOCK

€ 3.50

92081A

920811082
ref: 92081A

SPRING,BRAKE L.SWITCH

€ 6.50

110

112B0622
ref: 110

BOLT, 6X22

€ 2.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

411

411B0500
ref: 411

WASHER-PLAIN,5MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50
