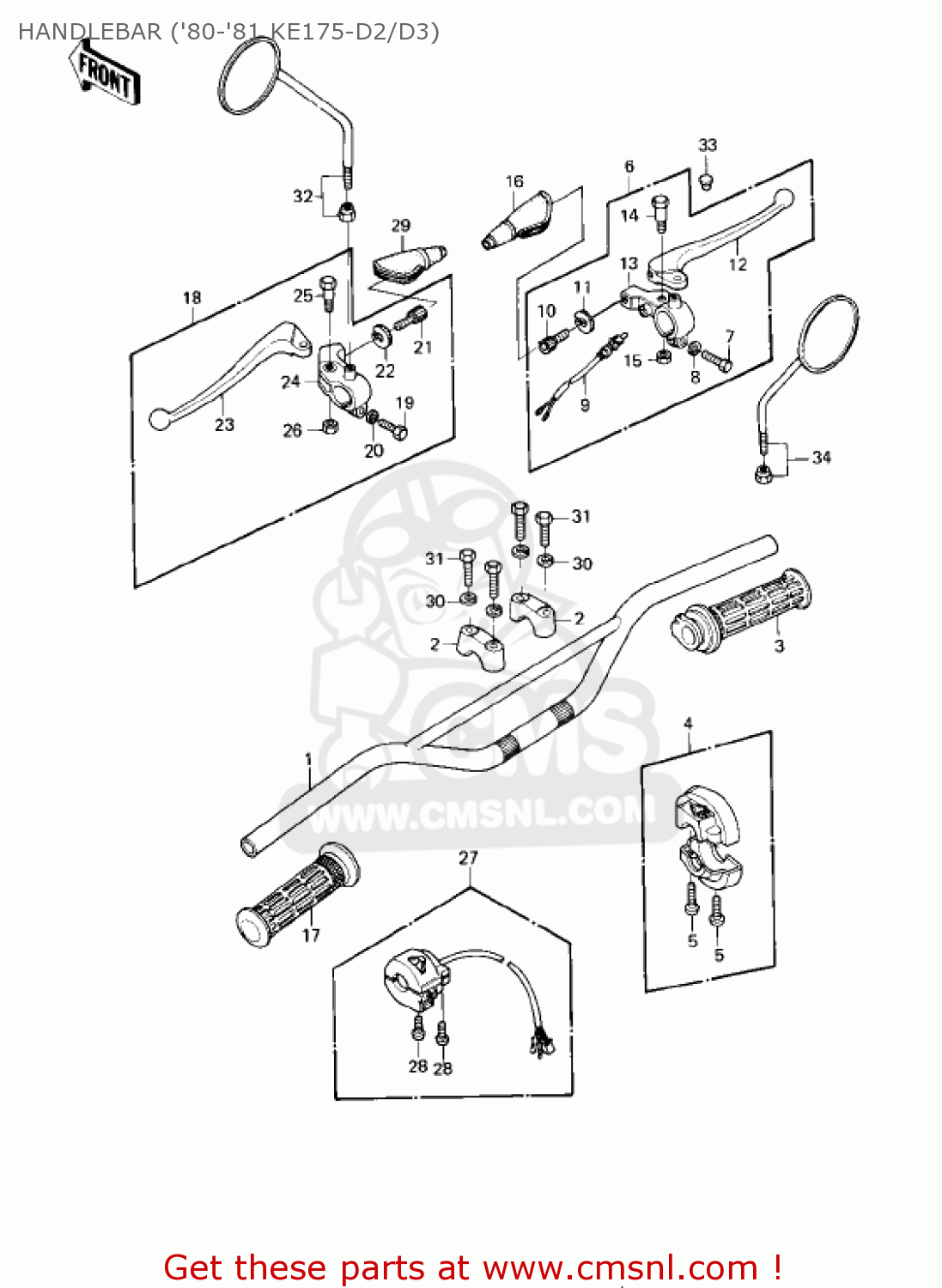

HANDLEBAR ('80-'81 KE175-D2/D3)

KE175-D5 KE175 1983 USA CANADA

Handlebar ('80-'81 ke175-d2/d3) diagram KE175-D5 KE175 1983 USA CANADA

HANDLEBAR ('80-'81 KE175-D2/D3) KE175-D5 KE175 1983 USA CANADA

HANDLEBAR ('80-'81 KE175-D2/D3) KE175-D5 KE175 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

460031022
ref: 1

HANDLEBAR

€ 61.50

2

46012014
ref: 2

HOLDER-HANDLE

€ 15.50

3

460191005
ref: 3

GRIP-ASSY,THROTTLE

€ 26.00

4

460911041
ref: 4

HOUSING-ASSY-CONTROL,

€ 41.50

5

220B0518
ref: 5

SCREW-PAN HEAD,5X18

€ 2.50

6

46021029
ref: 6

LEVER ASSY,FRNT BRAKE

€ 34.00

6

46021031
ref: 6
E/NO. 001913~

LEVER-ASSY-GRIP,BRAKE

€ 41.50

7

110N0625
ref: 7

BOLT-HEX HEAD,6X25

€ 3.50

8

410D0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

9

27021004
ref: 9

SWITCH,FR BRAKE LAMP

€ 23.00

10

46055010
ref: 10

SCREW,CABLE ADJUST

€ 21.00

10

46055003
ref: 10
E/NO. 001913~

SCREW-CABLE ADJUST

€ 11.50

11

46056005
ref: 11

NUT-LOCK

€ 6.00

12

46058004
ref: 12

LEVER-GRIP,FRONT BRAK

€ 24.00

13

4606000921
ref: 13

HOLDER,BRAKE LEVER,FR

€ 27.00

14

92007046
ref: 14

BOLT,HEX HEAD,5X22

€ 4.50

15

92019014
ref: 15

NUT-LOCK,5M/M

€ 2.50

16

490061017
ref: 16

BOOTS,LEVER HOLDER

€ 13.00

17

460751004
ref: 17

GRIP,L.H.

€ 8.00

18

46076044
ref: 18

LEVER-ASSY-GRIP,CLUTC

€ 48.00

19

110N0625
ref: 19

BOLT-HEX HEAD,6X25

€ 3.50

20

410D0600
ref: 20

WASHER-PLAIN-SMALL,6M

€ 0.50

21

46055003
ref: 21

SCREW-CABLE ADJUST

€ 11.50

22

46056005
ref: 22

NUT-LOCK

€ 6.00

23

46092015
ref: 23

LEVER-GRIP,CLUTCH

€ 11.50

24

4609401121
ref: 24

HOLDER-CLUTCH LEV,BLK

€ 23.00

25

92007046
ref: 25

BOLT,HEX HEAD,5X22

€ 4.50

26

92019014
ref: 26

NUT-LOCK,5M/M

€ 2.50

27

460911042
ref: 27

HOUSING ASSEMBLY,LH

€ 78.00

28

220B0522
ref: 28

SCREW-PAN-CROS

€ 0.50

29

490061017
ref: 29

BOOTS,LEVER HOLDER

€ 13.00

30

461F0800
ref: 30

WASHER-SPRING,8MM

€ 0.50

31

920011405
ref: 31

BOLT,8X38

€ 10.00

32

56003009
ref: 32

MIRROR-ASSY,LH

€ 50.00

33

92102009
ref: 33

CAP-RR VIEW MIRROR

€ 3.00

34

56002020
ref: 34
OPTION

MIRROR-ASSY,RH

€ 47.50
