TURN SIGNALS

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

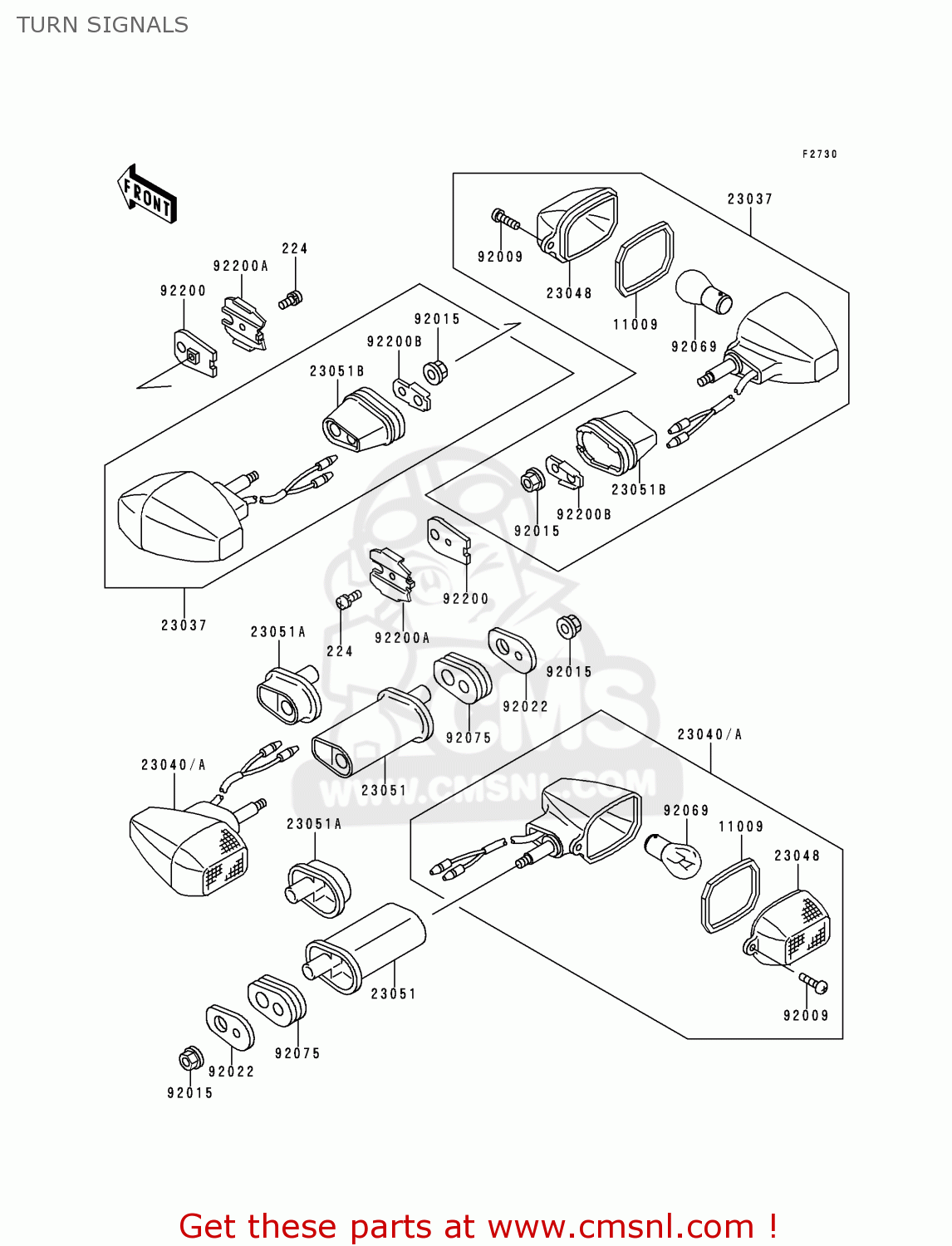

Turn signals diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

TURN SIGNALS EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
TURN SIGNALS EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
TURN SIGNALS EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
224
224C0408
ref: 224
SCREW-PAN-WP-CROS,4X8
224C0408
€ 2.50
11009
110091576
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091576
€ 4.50
23037
230371272
ref: 23037
LAMP-ASSY-SIGNAL,FR
230371272
€ 41.50
23040
230401142
ref: 23040
FG
LAMP-SIGNAL
230401142
€ 40.50
23040A
230401201
ref: 23040A
EUFRGRNLNRSP
LAMP-SIGNAL
230401201
€ 56.00
23048
230481068
ref: 23048
LENS-SIGNAL LAMP
230481068
€ 12.00
23051
230511165
ref: 23051
FG
BRACKET-SIGNAL LAMP,R
230511165
€ 17.00
23051A
230511168
ref: 23051A
EUFRGRNLNRSP
BRACKET-SIGNAL LAMP,R
230511168
€ 16.00
23051B
230511207
ref: 23051B
BRACKET-SIGNAL LAMP,F
230511207
€ 13.00
92009
920091142
ref: 92009
SCREW,TAPPING,4X12
920091142
€ 3.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221672
ref: 92022
WASHER,SIGNAL LAMP
920221672
€ 3.50
92069

ref: 92069
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
920751698
€ 6.00
92200
922001015
ref: 92200
WASHER,SIGNAL LAMP
922001015
€ 4.00
92200A
922001016
ref: 92200A
WASHER,SIGNAL LAMP
922001016
€ 4.50
92200B
922001021
ref: 92200B
WASHER
922001021
€ 4.50
