AIR CLEANER

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

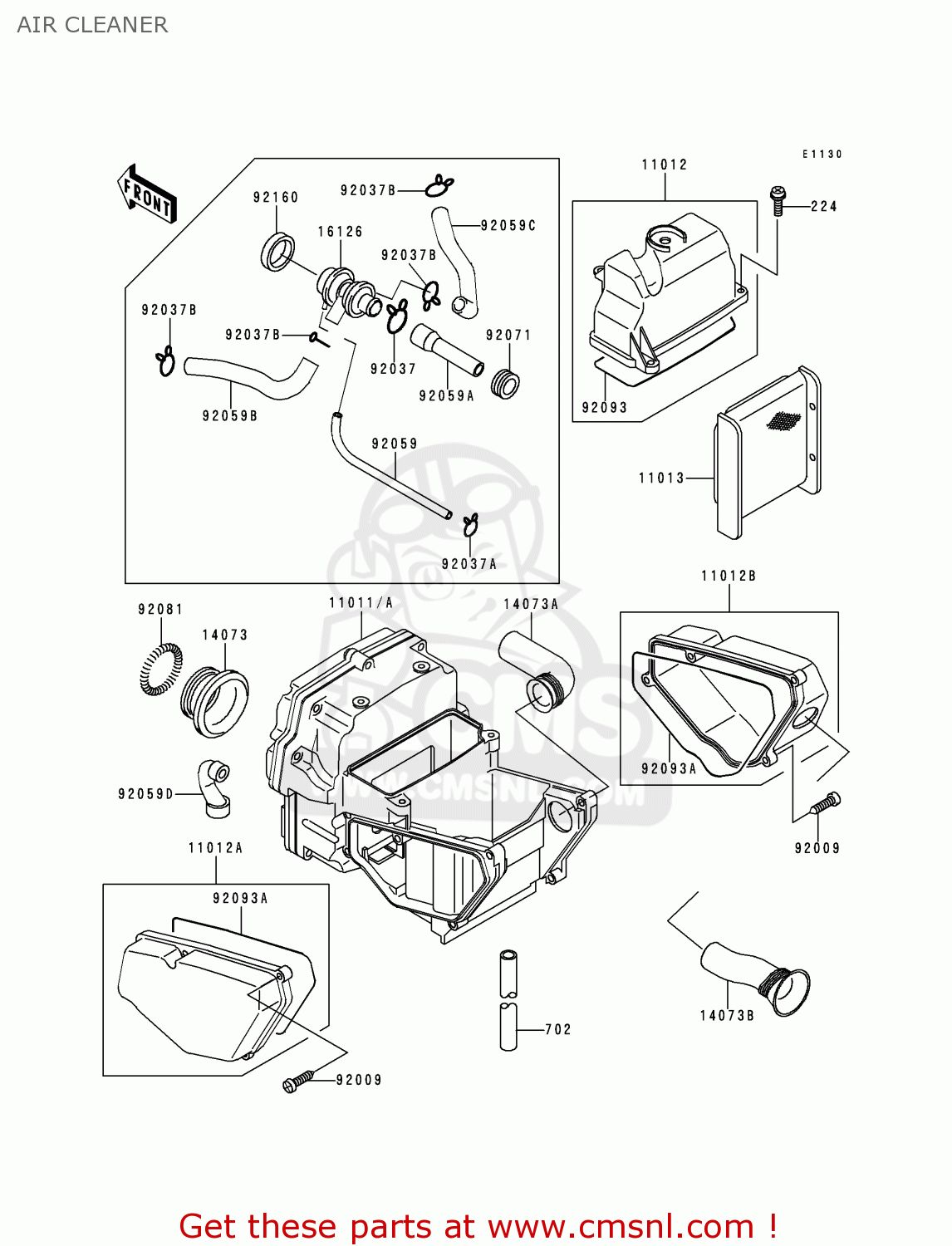

Air cleaner diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

AIR CLEANER EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
AIR CLEANER EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
AIR CLEANER EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
224
224B0620
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
11011A
110111270
ref: 11011A
CASE-AIR FILTER
110111270
€ 122.50
11012
110121571
ref: 11012
CAP,AIR FILTER CASE,U
110121571
€ 32.50
11012A
110121608
ref: 11012A
CAP,AIR FILTER,LH
110121608
€ 28.00
11012B
110121609
ref: 11012B
CAP,AIR FILTER,RH
110121609
€ 28.00
11013
110131252
ref: 11013
ELEMENT-AIR FILTER
110131252
€ 28.00
14073
140731292
ref: 14073
DUCT,CARBURATOR
140731292
€ 17.00
14073A
140731293
ref: 14073A
DUCT,INTAKE
140731293
€ 10.00
14073B
140731295
ref: 14073B
DUCT
140731295
€ 14.00
92009
920091488
ref: 92009
SCREW
920091488
€ 3.00
92059D
920591773
ref: 92059D
TUBE,BREATHER
920591773
€ 7.50
92081
920811457
ref: 92081
SPRING,COIL,BLACK
920811457
€ 7.00
92093
920931233
ref: 92093
SEAL,AIR FILTER CAP
€ 6.00
92093A
920931234
ref: 92093A
SEAL,AIR FILTER
920931234
€ 7.50
