COWLING LOWERS

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

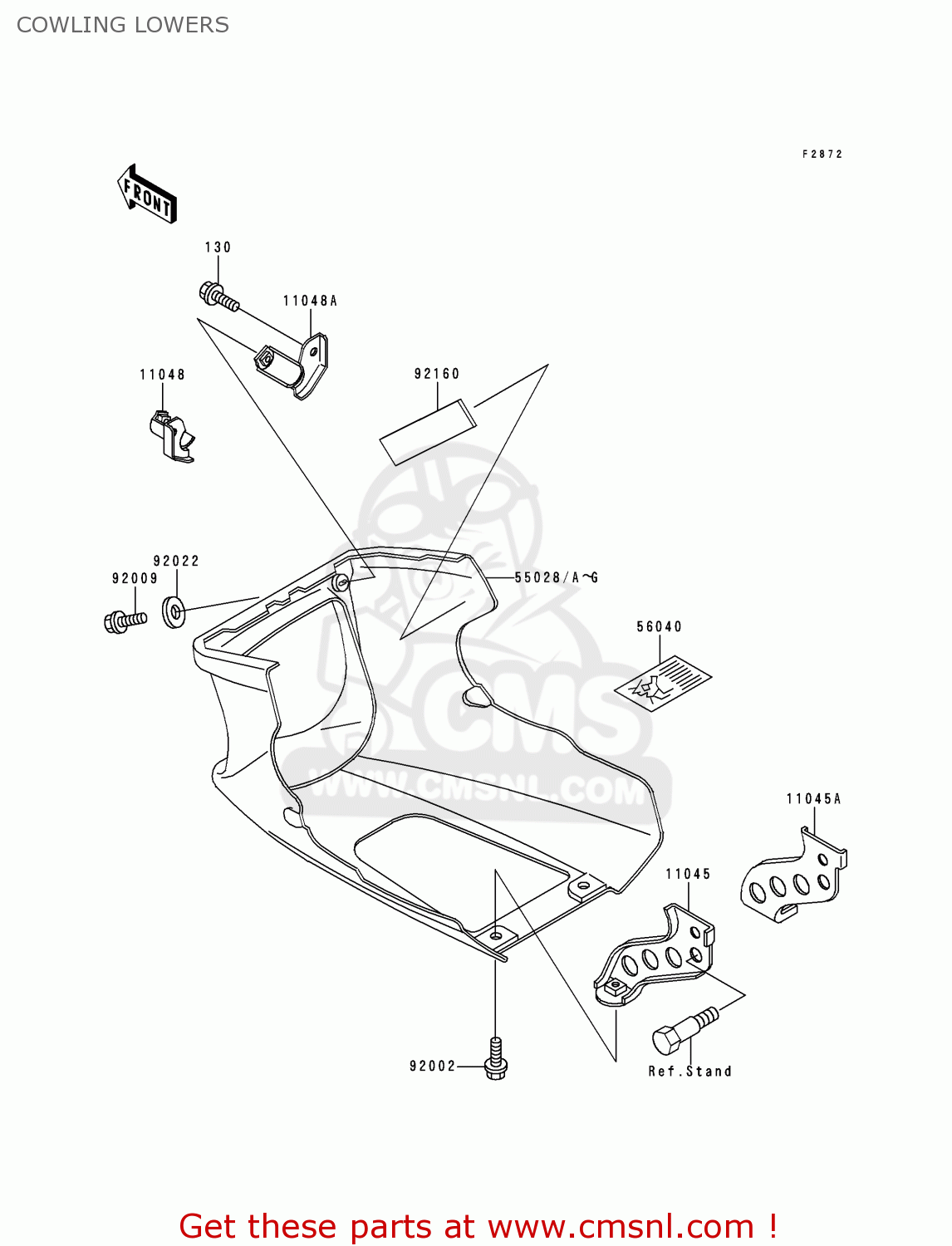

Cowling lowers diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

prices are in EUR

ref

part #

description

quantity

11045

110451573
ref: 11045

BRACKET,LOWER COWLING

€ 9.00

11045A

110451574
ref: 11045A

BRACKET,LOWER COWLING

€ 10.00

11048

110481685
ref: 11048

BRACKET,LOWER COWLING

€ 15.50

11048A

110481686
ref: 11048A

BRACKET,LOWER COWLING

€ 12.50

55028B

550281161F2
ref: 55028B
FGFRGRNLNR

COWLING,LWR,G.SILVER

€ 297.50

55028E

550281161T8
ref: 55028E

COWLING,LWR,P.G.GRAY

€ 327.50

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

56040

560401251
ref: 56040

LABEL-WARNING,LOWER C

€ 4.00

92002

920021188
ref: 92002

BOLT,6X16

€ 3.00

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92022

920221654
ref: 92022

WASHER,6.5X16X1.0

€ 2.50

92160

921601323
ref: 92160

DAMPER,BATTERY BAND

€ 2.50
