COWLING(EX500-E3/E4/E4A)

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

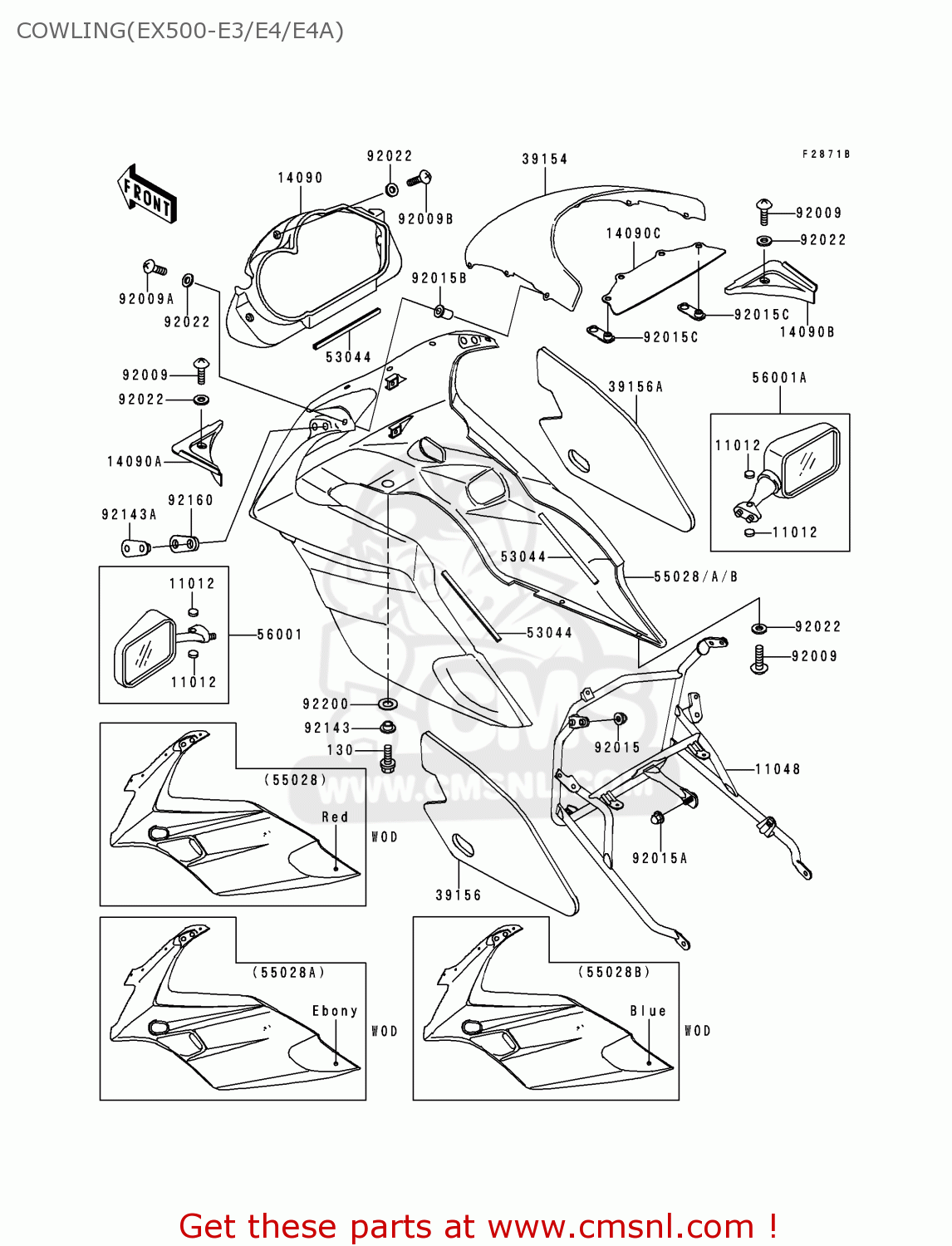

Cowling(ex500-e3/e4/e4a) diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

COWLING(EX500-E3/E4/E4A) EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
COWLING(EX500-E3/E4/E4A) EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
COWLING(EX500-E3/E4/E4A) EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
130
130J0620
ref: 130
BOLT-FLANGED,6X20
130J0620
€ 2.50
11012
110121818
ref: 11012
CAP,MIRROR
110121818
€ 2.00
11048
110481368
ref: 11048
BRACKET,UPP COWLING
110481368
€ 198.50
14090
140901397
ref: 14090
COVER,INNER COWLING,C
140901397
€ 91.50
14090A
140901398
ref: 14090A
COVER,INNER COWLING,L
140901398
€ 46.00
14090B
140901399
ref: 14090B
COVER,INNER COWLING,R
140901399
€ 41.50
14090C
140901488
ref: 14090C
COVER,WINDSHIELD
140901488
€ 15.00
39154
391541125
ref: 39154
WINDSHIELD
391541125
€ 184.50
39156
391561423
ref: 39156
PAD,UPP COWLING,LH
€ 18.00
39156A
391561424
ref: 39156A
PAD,UPP COWLING,RH
391561424
€ 18.00
53044
530441276
ref: 53044
TRIM
530441276
€ 6.00
55028
550281318H3
ref: 55028
EUFRGRNLNRSP
COWLING,UPP,C.W.RED
550281318H3
€ 755.50
55028A
550281318H8
ref: 55028A
COWLING,UPP,EBONY
€ 635.00
55028B
550281318SD
ref: 55028B
FGFRGRNLNR
COWLING,UPP,M.B.VIOLE
€ 635.00
56001
5600113766C
ref: 56001
MIRROR-ASSY,LH,EBONY
5600113766C
€ 81.50
56001A
5600113776C
ref: 56001A
MIRROR-ASSY,RH,EBONY
5600113776C
€ 81.50
92009
920091479
ref: 92009
SCREW,5X15
920091479
€ 2.50
92009A
920091654
ref: 92009A
SCREW
920091654
€ 0.50
92009B
920091660
ref: 92009B
SCREW
920091660
€ 3.00
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92015C
920151949
ref: 92015C
NUT
920151949
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92143
921431088
ref: 92143
COLLAR,L=6.6
921431088
€ 3.50
92143A
921431699
ref: 92143A
COLLAR
921431699
€ 2.50
92160
921601089
ref: 92160
DAMPER,MIRROR
921601089
€ 4.50
92200
922001013
ref: 92200
WASHER,10.3X20X1
922001013
€ 3.00
