SEAT

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

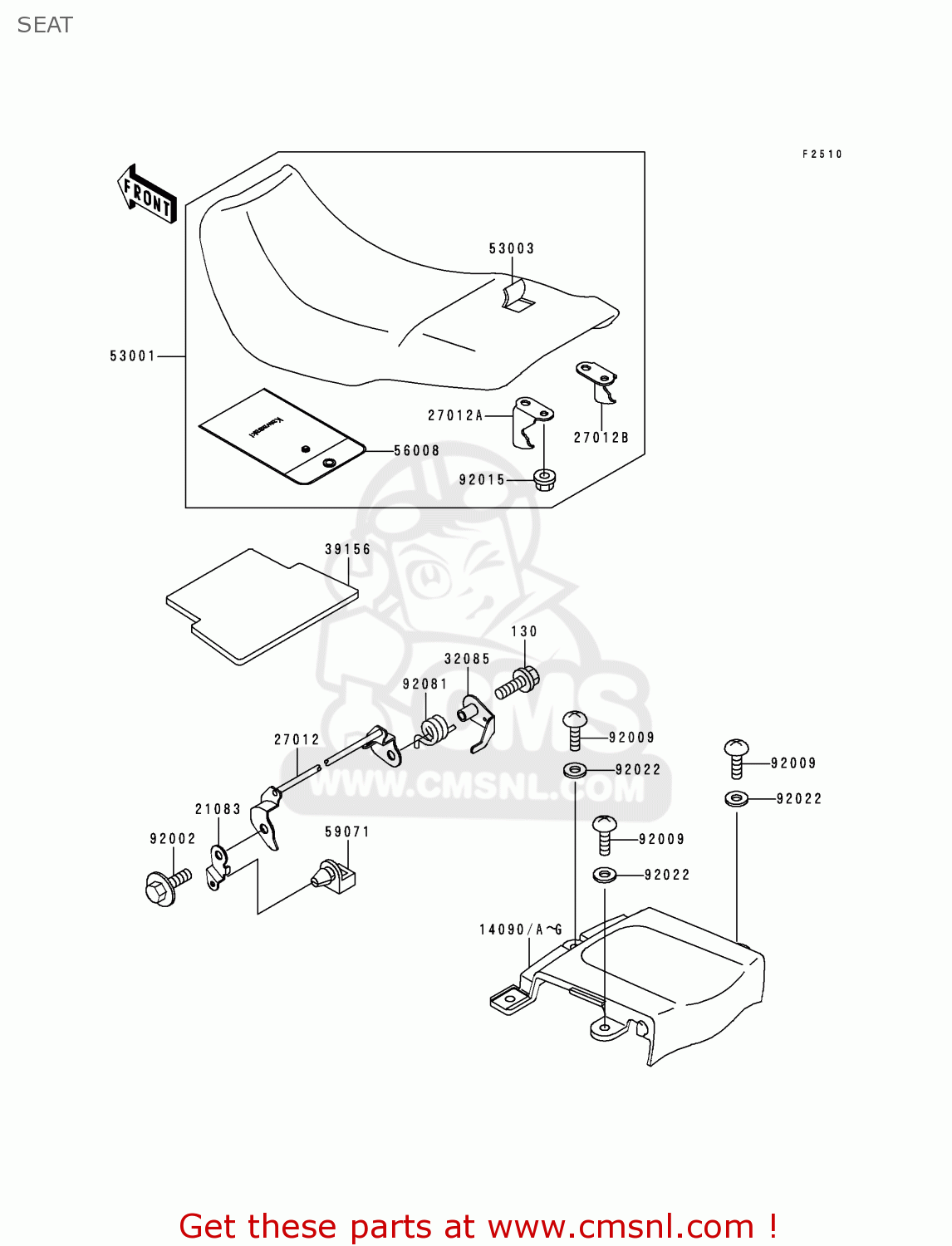

Seat diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

SEAT EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
SEAT EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
SEAT EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
14090B
140901369F2
ref: 14090B
FGFRGRNLNR
COVER,SEAT,G.SILVER
€ 81.00
14090E
140901369T8
ref: 14090E
COVER,SEAT,P.G.GRAY
€ 85.50
21083
210831063
ref: 21083
ARM,SEAT LOCK
€ 5.50
27012
270121363
ref: 27012
HOOK,SEAT LOCK
270121363
€ 36.00
27012A
270121377
ref: 27012A
HOOK,SEAT,LH
€ 6.00
27012B
270121378
ref: 27012B
HOOK,SEAT,RH
€ 7.00
32085
320851270
ref: 32085
STOPPER,SEAT LOCK SPR
320851270
€ 10.50
39156
391561420
ref: 39156
PAD,SEAT
€ 14.00
53001
530011726MA
ref: 53001
SEAT-ASSY,DUAL,BLACK
530011726MA
€ 317.00
53003
530031284MA
ref: 53003
LEATHER,SEAT,BLACK
€ 132.50
56008
560081066
ref: 56008
BAG,HAND BOOK
560081066
€ 34.00
59071
590711103
ref: 59071
JOINT
590711103
€ 5.50
92002
920021884
ref: 92002
BOLT,6X12
920021884
€ 2.50
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92081
920811982
ref: 92081
SPRING
920811982
€ 3.50
