CARBURETOR

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

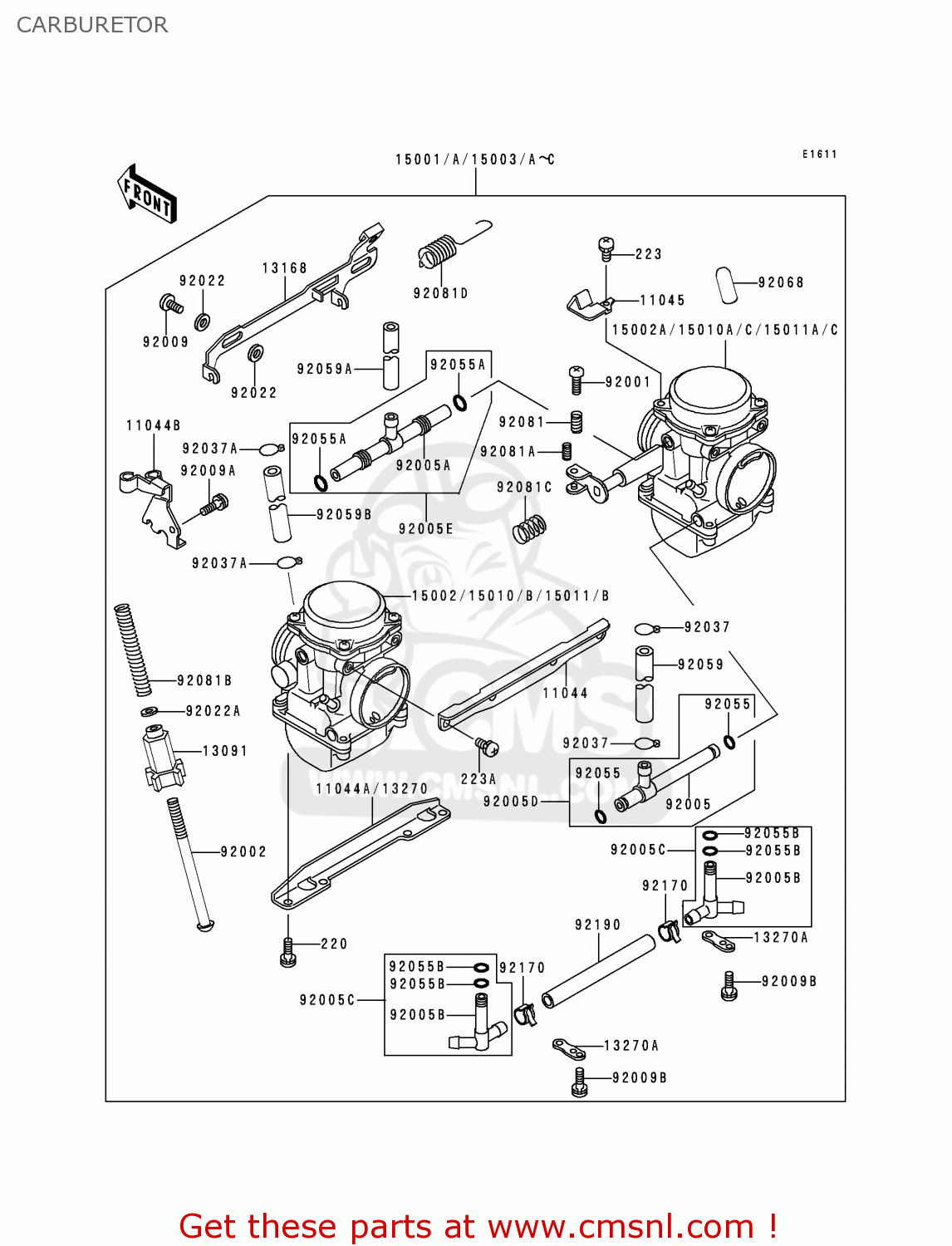

Carburetor diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

CARBURETOR EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
CARBURETOR EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
CARBURETOR EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
11044
110441313
ref: 11044
BRACKET,CARBURETOR ST
€ 43.50
11044A
110441314
ref: 11044A
EUGRNRSP
BRACKET,CARBURETOR ST
110441314
€ 45.50
11044B
110441546
ref: 11044B
BRACKET,THROTTLE CABL
110441546
€ 41.00
11045
110451824
ref: 11045
BRACKET,STARTER LEVER
€ 44.50
13091
130911382
ref: 13091
HOLDER,THROTTLE STOP
130911382
€ 11.00
13168
131681360
ref: 13168
LEVER
€ 55.50
13270
132701062
ref: 13270
FGFRNL
PLATE,LWR,STAY
€ 47.00
13270A
132701063
ref: 13270A
FGFRNL
PLATE,JOINT STAY
132701063
€ 21.00
15001
150011335
ref: 15001
EUGRNRSP
CARBURETOR-ASSY
€ 1,181.50
15001A
150011911
ref: 15001A
FG
CARBURETOR-ASSY
€ 1,181.50
15002
150021494
ref: 15002
EUGRNRSP
CARBURETOR,LH
€ 1,011.50
15002A
150021495
ref: 15002A
EUGRNRSP
CARBURETOR,RH
€ 950.00
15003
150031082
ref: 15003
FRNL
CARBURETOR-ASSY
€ 1,472.00
15010
150101596
ref: 15010
FG
CARBURETOR,LH
€ 1,062.00
15010A
150101597
ref: 15010A
FG
CARBURETOR,RH
€ 1,062.00
15010B
150101678
ref: 15010B
FRNL
CARBURETOR,LH
€ 1,011.50
15010C
150101679
ref: 15010C
FRNL
CARBURETOR,RH
€ 1,011.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92002
920021552
ref: 92002
BOLT,THROTTLE STOP SC
920021552
€ 10.00
92005
920051133
ref: 92005
FITTING
920051133
€ 37.50
92005A
920051134
ref: 92005A
FITTING
920051134
€ 43.00
92005B
920051257
ref: 92005B
FGFRNL
FITTING
€ 18.50
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091705
ref: 92009B
FGFRNL
SCREW 4X8
920091705
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551427
ref: 92055B
FGFRNL
RING-O,4.5X1.5
920551427
€ 3.00
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591465
ref: 92059A
TUBE,6.5X9.5X500
920591465
€ 20.50
92059B
920591634
ref: 92059B
TUBE,5X9X140
920591634
€ 12.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92068
92068006
ref: 92068
RUBBER PLUG
92068006
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811875
ref: 92081B
SPRING,THROTTLE STOP
920811875
€ 5.50
92081C
920811876
ref: 92081C
SPRING
€ 6.00
92081D
920811893
ref: 92081D
SPRING,STARTER LEVER
€ 12.50
92170
921701504
ref: 92170
FGFRNL
CLAMP
921701504
€ 3.00
92190
921901542
ref: 92190
FGFRNL
TUBE,WATER
921901542
€ 9.00
