STARTER MOTOR

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

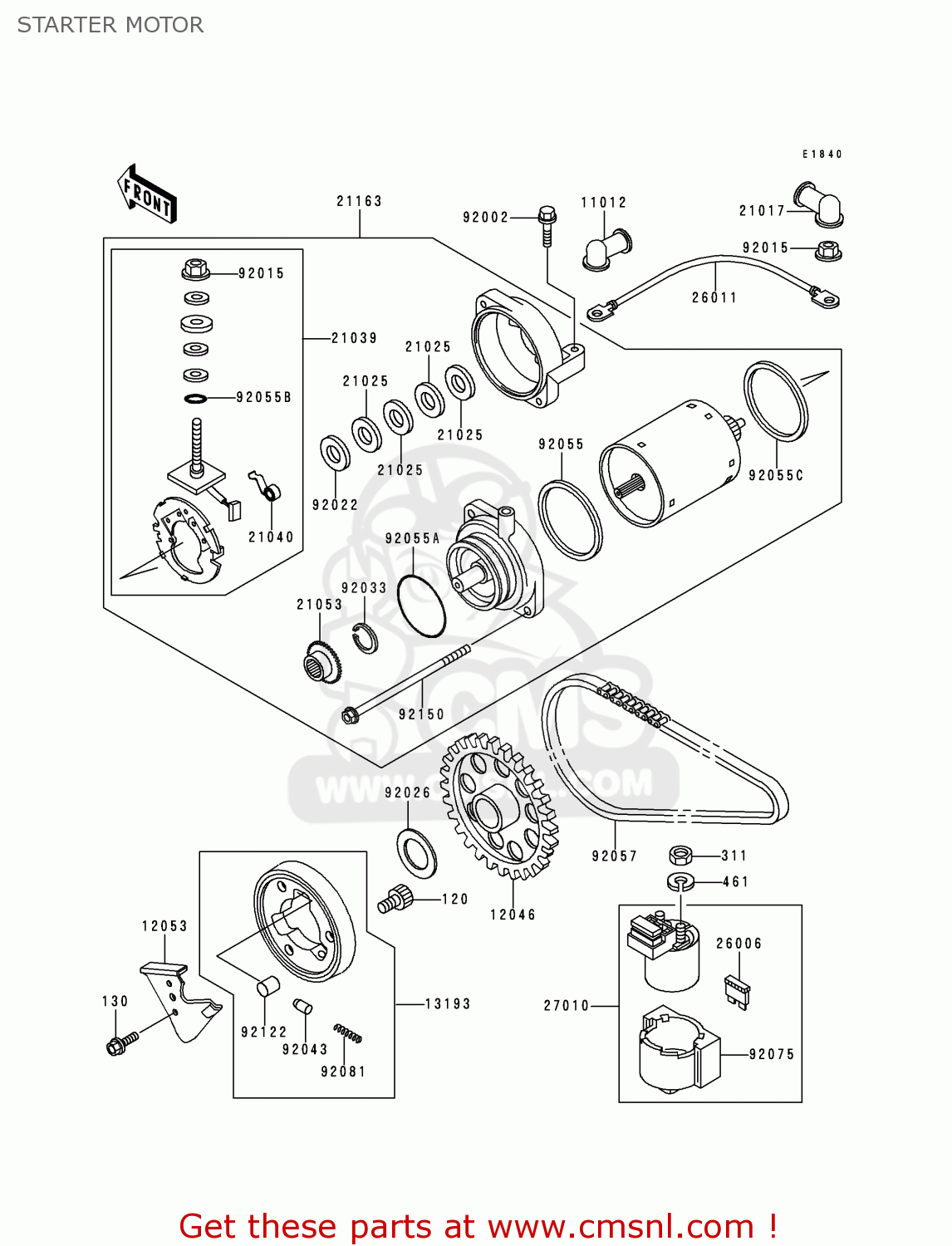

Starter motor diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

STARTER MOTOR EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
STARTER MOTOR EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
STARTER MOTOR EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
120P0816
€ 2.50
130
130G0620
ref: 130
BOLT,FLANGED,6X20
130G0620
€ 2.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
11012
110121354
ref: 11012
CAP,TERMINAL
110121354
€ 7.00
12046
120461072
ref: 12046
SPROCKET,ONEWAY CLUTC
120461072
€ 69.00
12053
120531214
ref: 12053
GUIDE-CHAIN
120531214
€ 29.50
13193
131931060
ref: 13193
CLUTCH-ASSY-ONEWAY
131931060
€ 122.00
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391062
ref: 21039
BRUSH,CARBON
210391062
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
210401057
€ 5.50
21053
210531057
ref: 21053
SPROCKET-ASSY
210531057
€ 28.50
21163
211631163
ref: 21163
STARTER-ELECTRIC
211631163
€ 518.50
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26011
260111650
ref: 26011
WIRE-LEAD,STARTER MOT
260111650
€ 52.00
27010
270101213
ref: 27010
SWITCH,MAGNETIC
270101213
€ 111.00
92002
920021086
ref: 92002
BOLT,6X25
920021086
€ 3.50
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92026
920261285
ref: 92026
SPACER,25.2X40X1.0
920261285
€ 4.00
92033
92033034
ref: 92033
CIRCLIP
92033034
€ 7.00
92043
92043087
ref: 92043
PIN
92043087
€ 8.00
92055
920551086
ref: 92055
O RING,64MM
920551086
€ 6.50
92055A
920551313
ref: 92055A
RING-O
920551313
€ 5.50
92055B
920551370
ref: 92055B
RING-O,4.5X2.0
920551370
€ 3.00
92055C
920551381
ref: 92055C
RING-O,STARTER MOTOR
920551381
€ 6.50
92057
920571197
ref: 92057
CHAIN,STARTER,BF05MX6
920571197
€ 15.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
920751863
€ 14.00
92081
92081110
ref: 92081
SPRING
92081110
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
92122004
€ 7.00
92150
921501138
ref: 92150
BOLT,STARTER
921501138
€ 6.00
