CYLINDER HEAD COVER

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

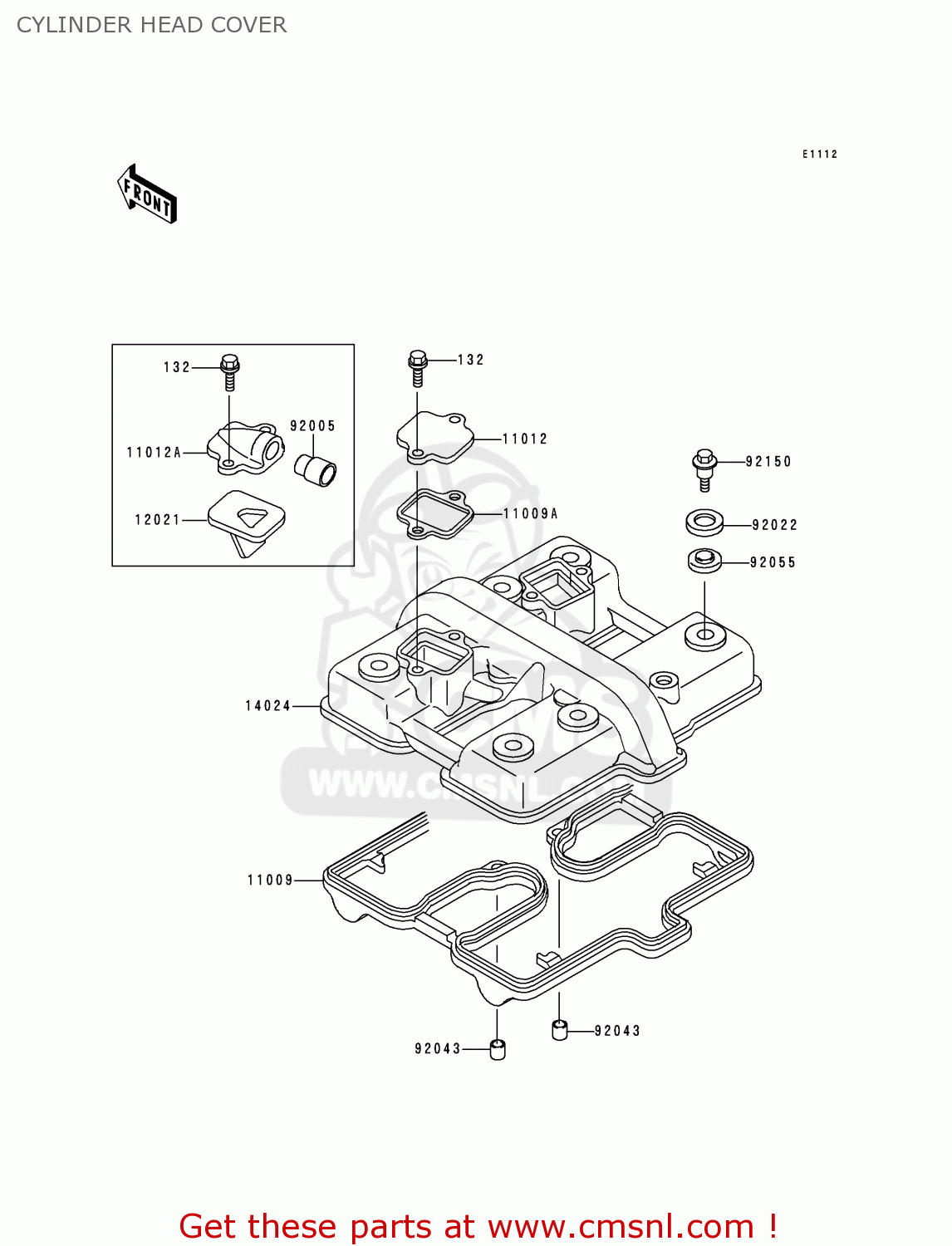

Cylinder head cover diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

prices are in EUR

ref

part #

description

quantity

132

132J0616
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

11009

110091483
ref: 11009

GASKET,CYLINDER HEAD (NAS)

€ 49.00

11009A

110091879
ref: 11009A

GASKET,REED VALVE (NAS)

€ 4.50

11012

110121212
ref: 11012

CAP,CYLINDER HEAD COV

€ 18.00

14024

140241397
ref: 14024

COVER,CYLINDER HEAD

€ 198.00

92022

920221487
ref: 92022

WASHER,HEAD COVER BOL

€ 3.50

92043

920431302
ref: 92043

PIN,DOWEL,8X10

€ 1.00

92055

920551225
ref: 92055

RING-O,HEAD COVER BOL

€ 4.50

92150

921501447
ref: 92150

BOLT

€ 3.00
