SWINGARM

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

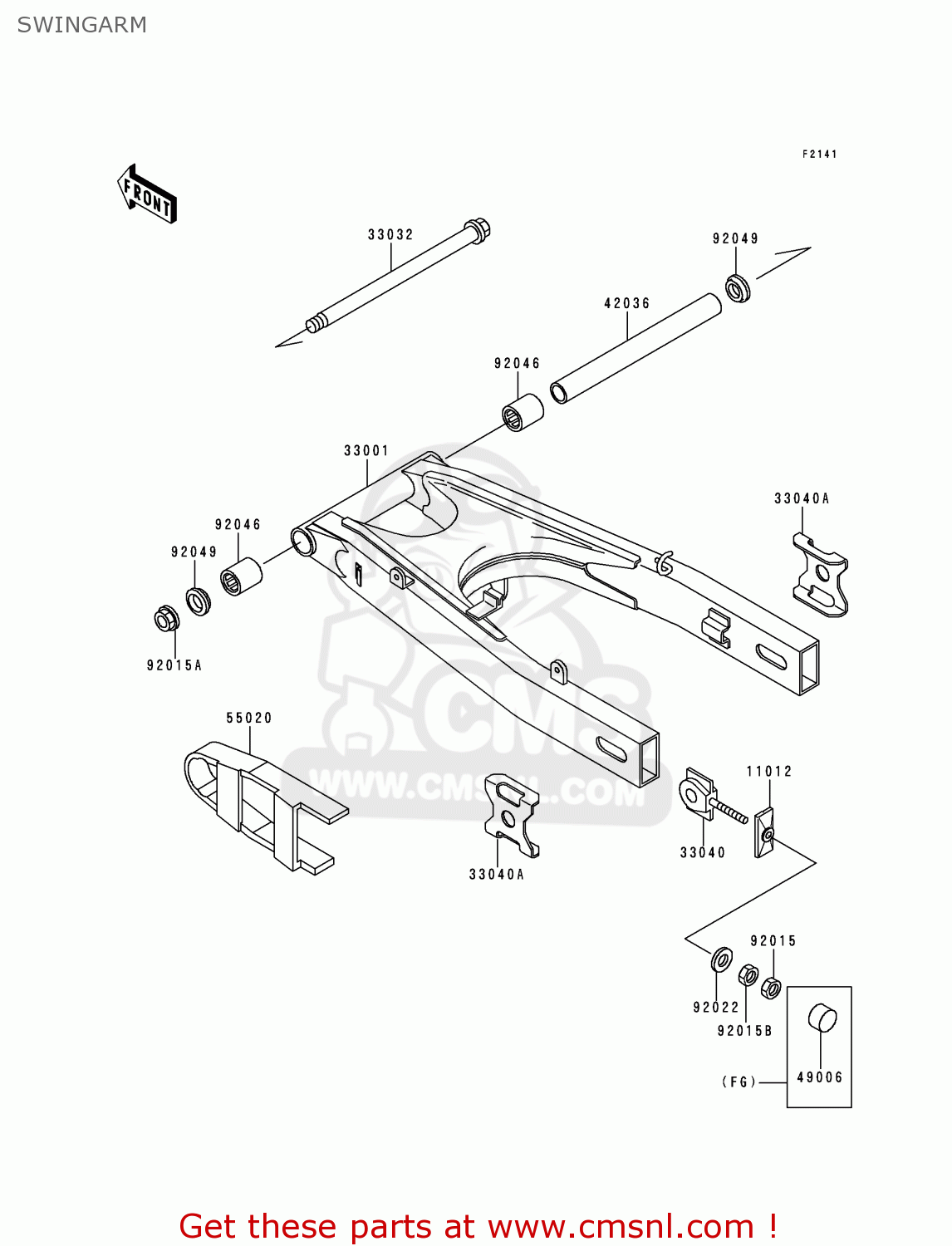

Swingarm diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

SWINGARM EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
SWINGARM EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
SWINGARM EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
11012
11012187110
ref: 11012
CAP,CHAIN ADJUSTER,BL
11012187110
€ 15.50
33001
33001144410
ref: 33001
ARM-COMP-SWING,BLACK
€ 463.00
33032
330321109
ref: 33032
SHAFT-SWING ARM
330321109
€ 31.50
33040
330401116
ref: 33040
ADJUSTER-CHAIN,INNER
330401116
€ 20.50
33040A
33040113710
ref: 33040A
ADJUSTER-CHAIN,OUTER,
33040113710
€ 12.00
42036
420361212
ref: 42036
SLEEVE,14.1X22X220
420361212
€ 45.50
49006
490061218
ref: 49006
FG
BOOT
490061218
€ 3.50
55020
550201500
ref: 55020
GUARD,CHAIN
550201500
€ 35.50
92015
920151364
ref: 92015
NUT,8MM
920151364
€ 2.50
92015A
920151407
ref: 92015A
NUT,14MM
920151407
€ 6.50
92015B
920151658
ref: 92015B
NUT,FLANGED,8MM
920151658
€ 3.00
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92046
920461162
ref: 92046
BEARING-NEEDLE,F-2220
920461162
€ 20.50
92049
920491254
ref: 92049
SEAL-OIL,MHA22 28 5.7
920491254
€ 6.50
