FRAME FITTINGS

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

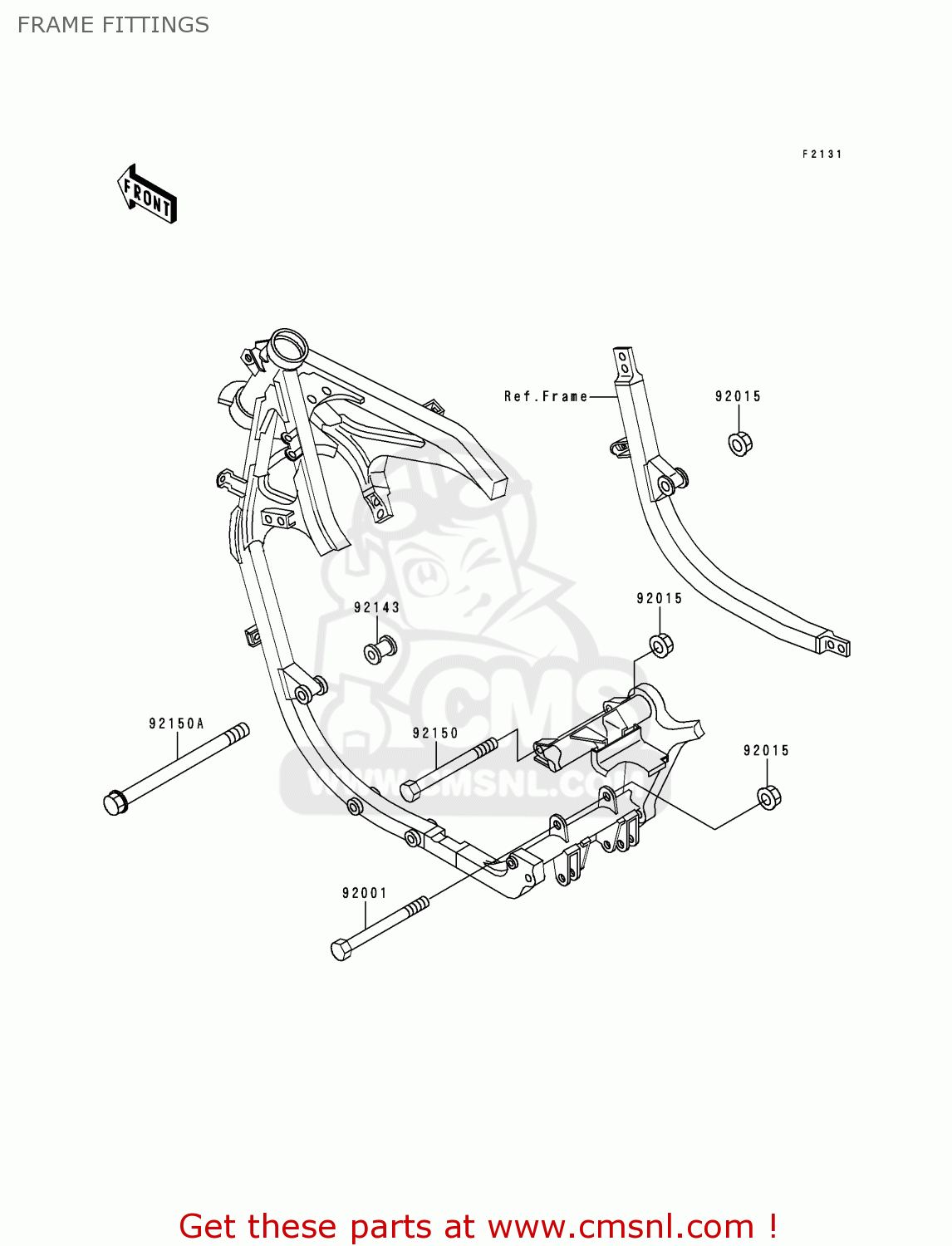

Frame fittings diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

FRAME FITTINGS EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

FRAME FITTINGS EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

prices are in EUR

ref

part #

description

quantity

92001

920011541
ref: 92001

BOLT,10X179

€ 11.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92143

921431276
ref: 92143

COLLAR,L=34

€ 11.00

92150

921501222
ref: 92150

BOLT,10X165

€ 9.50

92150A

921501223
ref: 92150A

BOLT, FLANGED 10X295

€ 13.50
