CYLINDER HEAD

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

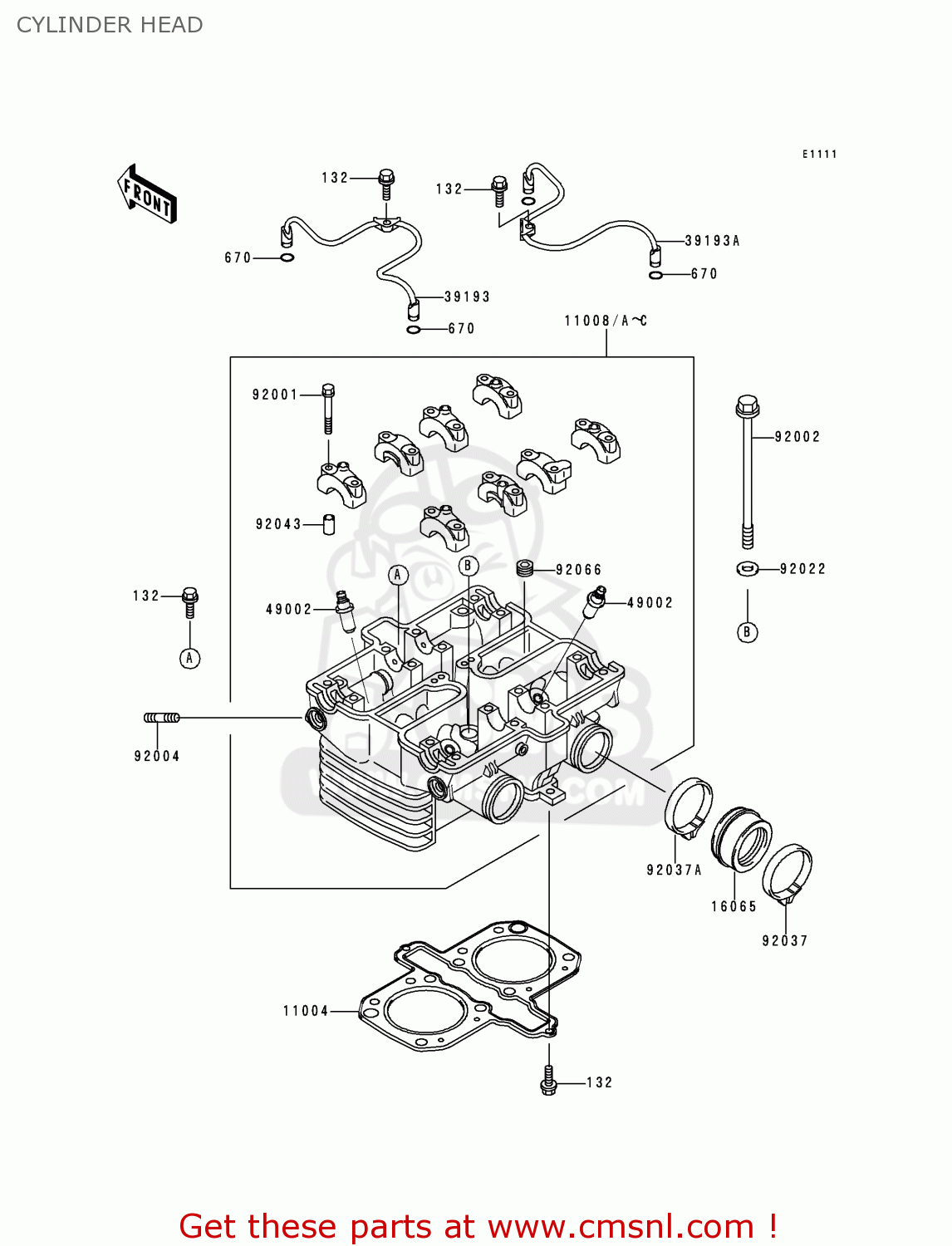

Cylinder head diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

CYLINDER HEAD EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
CYLINDER HEAD EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
CYLINDER HEAD EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
132G0620
€ 1.50
670
670D1507
ref: 670
O RING,7MM
670D1507
€ 1.00
11004
110041159
ref: 11004
GASKET-HEAD (NAS)
110041159
€ 61.00
11008A
110081230
ref: 11008A
HEAD-COMP-CYLINDER
110081230
€ 1,316.00
11008C
110081309
ref: 11008C
HEAD-COMP-CYLINDER
€ 1,316.00
16065
160651130
ref: 16065
HOLDER-CARBURETOR
160651130
€ 25.50
39193
391931038
ref: 39193
PIPE-OIL,LH
€ 44.00
39193A
391931039
ref: 39193A
PIPE-OIL,RH
391931039
€ 44.00
49002
490021052
ref: 49002
GUIDE-VALVE
490021052
€ 26.00
92001
920011872
ref: 92001
BOLT,6X46
920011872
€ 2.50
92002
920021943
ref: 92002
BOLT,10X164
920021943
€ 10.50
92004
920041214
ref: 92004
STUD
920041214
€ 3.50
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
920221591
€ 3.00
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
920371304
€ 7.00
92037A
920371523
ref: 92037A
CLAMP
920371523
€ 8.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
