BRAKE PEDAL

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

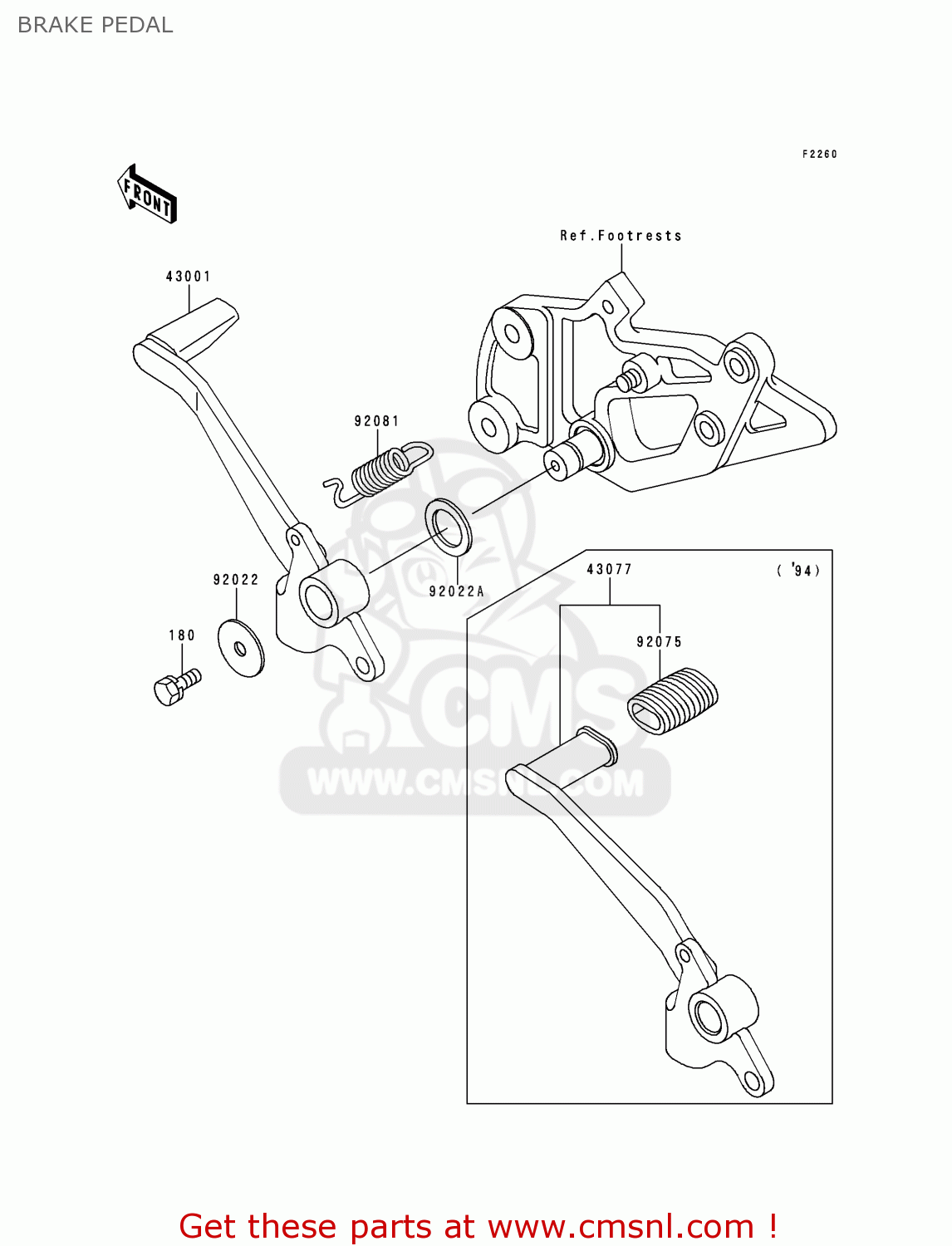

Brake pedal diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

BRAKE PEDAL EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

BRAKE PEDAL EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

prices are in EUR

ref

part #

description

quantity

180

180D0616
ref: 180

BOLT-UPSET-WS

€ 0.50

43001

430011355
ref: 43001

LEVER-BRAKE,PEDAL

€ 84.50

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

92022326
ref: 92022A

WASHER,15.3X24X1

€ 2.50

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00
