FENDERS

EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

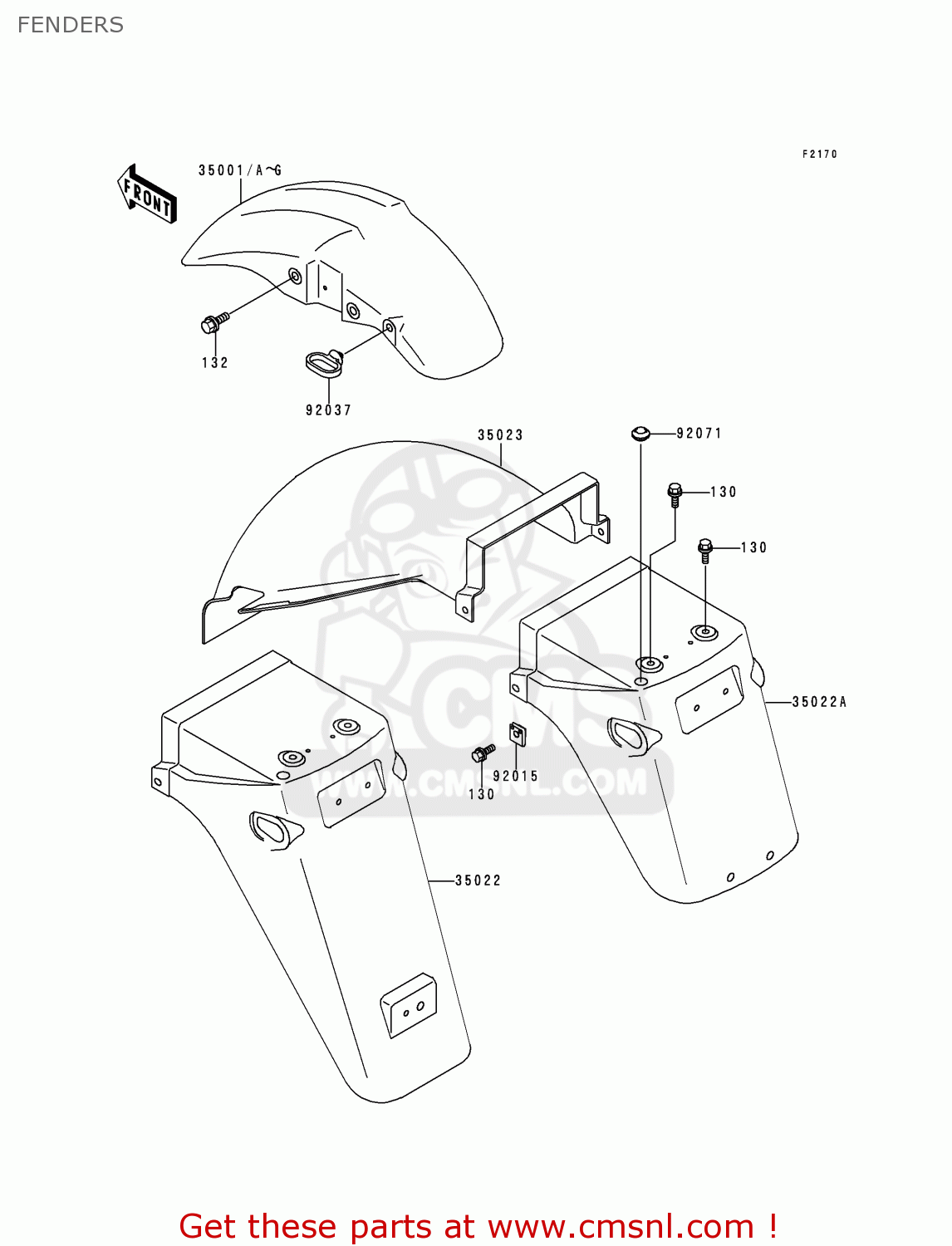

Fenders diagram EX500E3 GPZ500S 1996 EUROPE FR NL FG GR NR SP

prices are in EUR

ref

part #

description

quantity

130

130B0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

132

132J0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

35001C

350011155H3
ref: 35001C
EUFRGRNLNRSP

FENDER-ASSY-FRONT,C.W

€ 147.50

35001D

350011155H8
ref: 35001D

FENDER-ASSY-FRONT,EBO

€ 139.50

35001E

350011155SD
ref: 35001E
FGFRGRNLNR

FENDER-ASSY-FRONT,M.B

€ 117.00

35022

3502212286Z
ref: 35022
FGGRNR

FENDER-COMP-REAR,RR,B

€ 91.00

35022A

3502212366Z
ref: 35022A
EUFRNLSP

FENDER-COMP-REAR,RR,B

€ 88.50

35023

350231391
ref: 35023

FENDER-REAR,FR

€ 50.50

92015

920151678
ref: 92015

NUT

€ 3.50

92037

920371459
ref: 92037

CLAMP,CABLE

€ 14.50

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50
