SWING ARM/SHOCK ABSORBER

EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

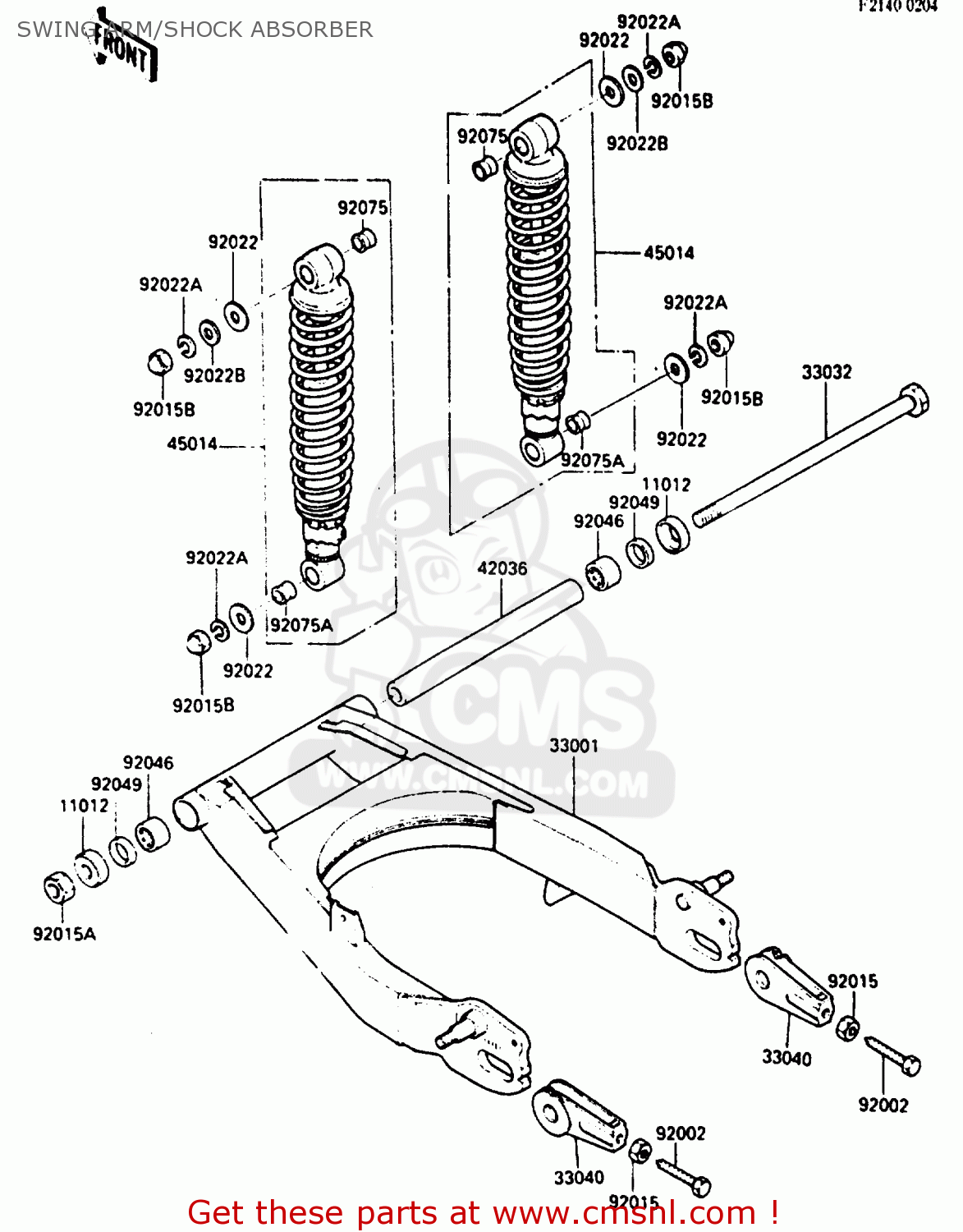

Swing arm/shock absorber diagram EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

prices are in EUR

ref

part #

description

quantity

11012

110121029
ref: 11012

CAP,SWING ARM

€ 13.50

33001

330011235
ref: 33001

ARM-COMP-SWING

€ 268.00

33032

330321113
ref: 33032

SHAFT-SWING ARM

€ 37.00

33040

33040043
ref: 33040

ADJUSTER-CHAIN

€ 20.50

42036

420361018
ref: 42036

SLEEVE,SWING ARM

€ 36.50

45014

450141314
ref: 45014

SHOCKABSORBER

€ 210.00

92002

920021076
ref: 92002

BOLT,8X50

€ 6.00

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151411
ref: 92015A

NUT,14MM

€ 7.00

92015B

92020003
ref: 92015B

NUT-SHOCK ABSORBER

€ 4.00

92022

92022044
ref: 92022

WASHER,10.5X26X2.3

€ 2.50

92022A

920221540
ref: 92022A

WASHER,SPRING,10MM

€ 2.50

92022B

920221558
ref: 92022B

WASHER,10.5X22X1.6

€ 2.00

92046

920461113
ref: 92046

BEARING-NEEDLE,BTM202

€ 19.00

92049

920491059
ref: 92049

OIL SEAL,MHA22284

€ 7.00

92075

45017015
ref: 92075

BUSHING,SHCK ABS RUB

€ 6.50

92075A

920751387
ref: 92075A

920751387
