RADIATOR

EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

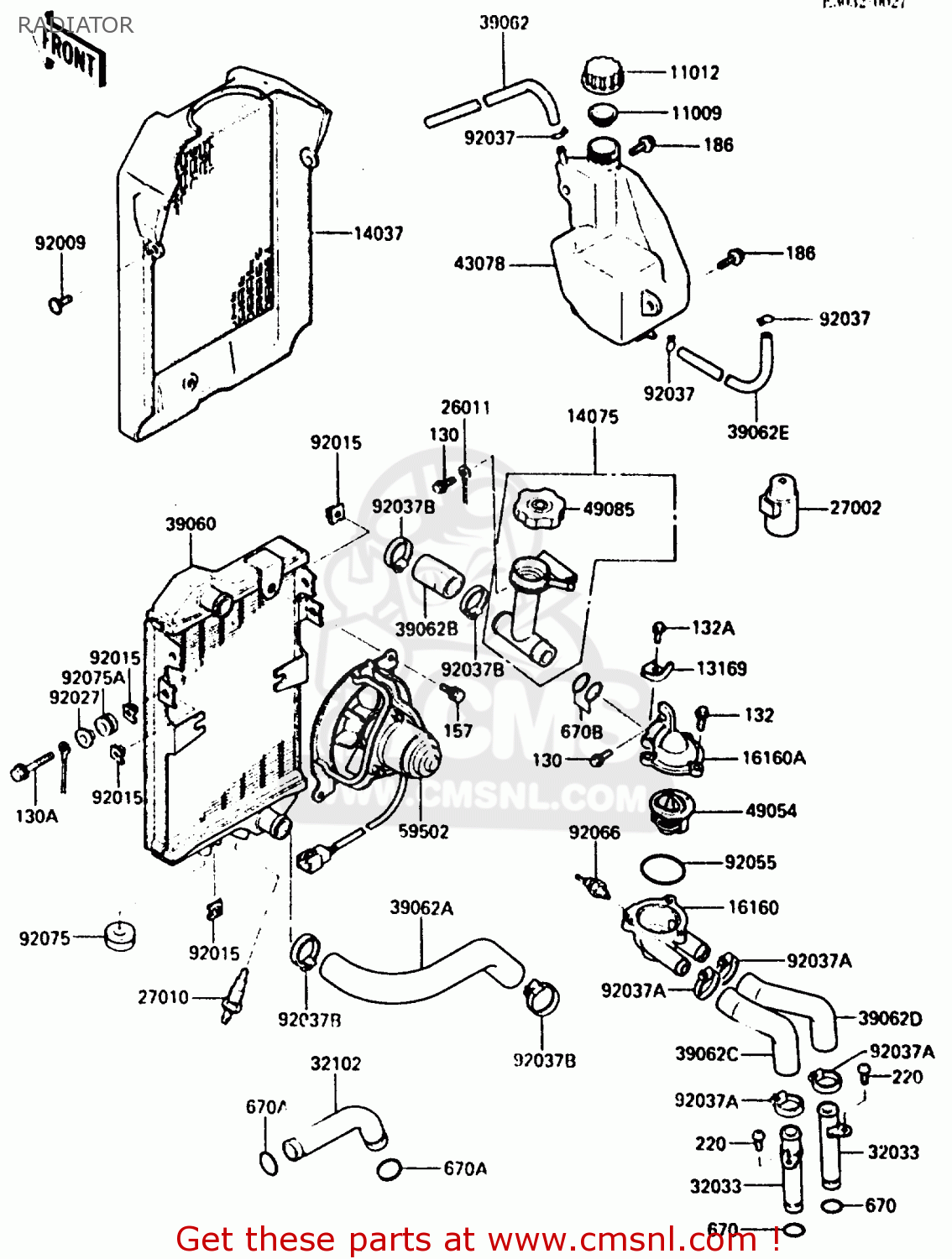

Radiator diagram EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

RADIATOR EN400A2 VULCAN 1986 CANADA / LIQUID COOLED
RADIATOR EN400A2 VULCAN 1986 CANADA / LIQUID COOLED
RADIATOR EN400A2 VULCAN 1986 CANADA / LIQUID COOLED
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121086
ref: 11012
CAP,AIR FILTER
€ 41.00
13169
131691901
ref: 13169
PLATE
€ 5.50
14037
140371068
ref: 14037
SCREEN,RADIATOR
140371068
€ 61.50
14075
140751056
ref: 14075
CAP-ASSY,RADIATOR
140751056
€ 133.50
16160
161601084
ref: 16160
BODY,THERMOSTAT,LWR
€ 24.50
16160A
161601085
ref: 16160A
BODY,THERMOSTAT,UPP
161601085
€ 39.00
26011
260111278
ref: 26011
WIRE-LEAD
€ 4.00
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
270101167
€ 108.50
32033
320331520
ref: 32033
PIPE
€ 25.50
32102
321021014
ref: 32102
PIPE
321021014
€ 29.50
39060
390601062
ref: 39060
RADIATOR
€ 592.50
39062
390621060
ref: 39062
HOSE-COOLING,5.5X10.5
€ 17.00
39062A
390621106
ref: 39062A
HOSE-COOLING
390621106
€ 25.00
39062B
390621107
ref: 39062B
HOSE-COOLING
390621107
€ 8.50
39062C
390621108
ref: 39062C
HOSE-COOLING
390621108
€ 15.00
39062D
390621109
ref: 39062D
HOSE-COOLING
390621109
€ 15.50
39062E
390621110
ref: 39062E
HOSE-COOLING,5.5X10.5
€ 25.00
43078
430781060
ref: 43078
RESERVOIR
430781060
€ 39.00
49054
490541055
ref: 49054
THERMOSTAT
490541055
€ 39.50
49085
490851053
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021054
ref: 59502
FAN-ASSY
595021054
€ 460.00
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92027
920271767
ref: 92027
COLLAR
920271767
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371598
ref: 92037A
CLAMP,COOLING HOSE
€ 16.50
92037B
920371599
ref: 92037B
CLAMP,COOLING HOSE
€ 14.00
92055
920551279
ref: 92055
RING-O,45MM
920551279
€ 4.50
92066
920661118
ref: 92066
PLUG,SENSOR WATOR
920661118
€ 50.00
92075
920751569
ref: 92075
DAMPER,HEAD LAMP FITT
920751569
€ 3.50
92075A
920751680
ref: 92075A
DAMPER
920751680
€ 4.00
130
130G0614
ref: 130
BOLT,FLANGED,6X14
130G0614
€ 0.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
132E0620
€ 2.00
132A
132G0612
ref: 132A
BOLT-FLANGED-SMALL
132G0612
€ 1.50
157
157J0612
ref: 157
BOLT-WSP
€ 2.50
186
186J0618
ref: 186
BOLT-UPSET-WP
186J0618
€ 2.50
220
220X0612
ref: 220
SCREW-PAN-CROS
€ 2.50
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
670B
670B2022
ref: 670B
O RING,22MM
670B2022
€ 3.00
