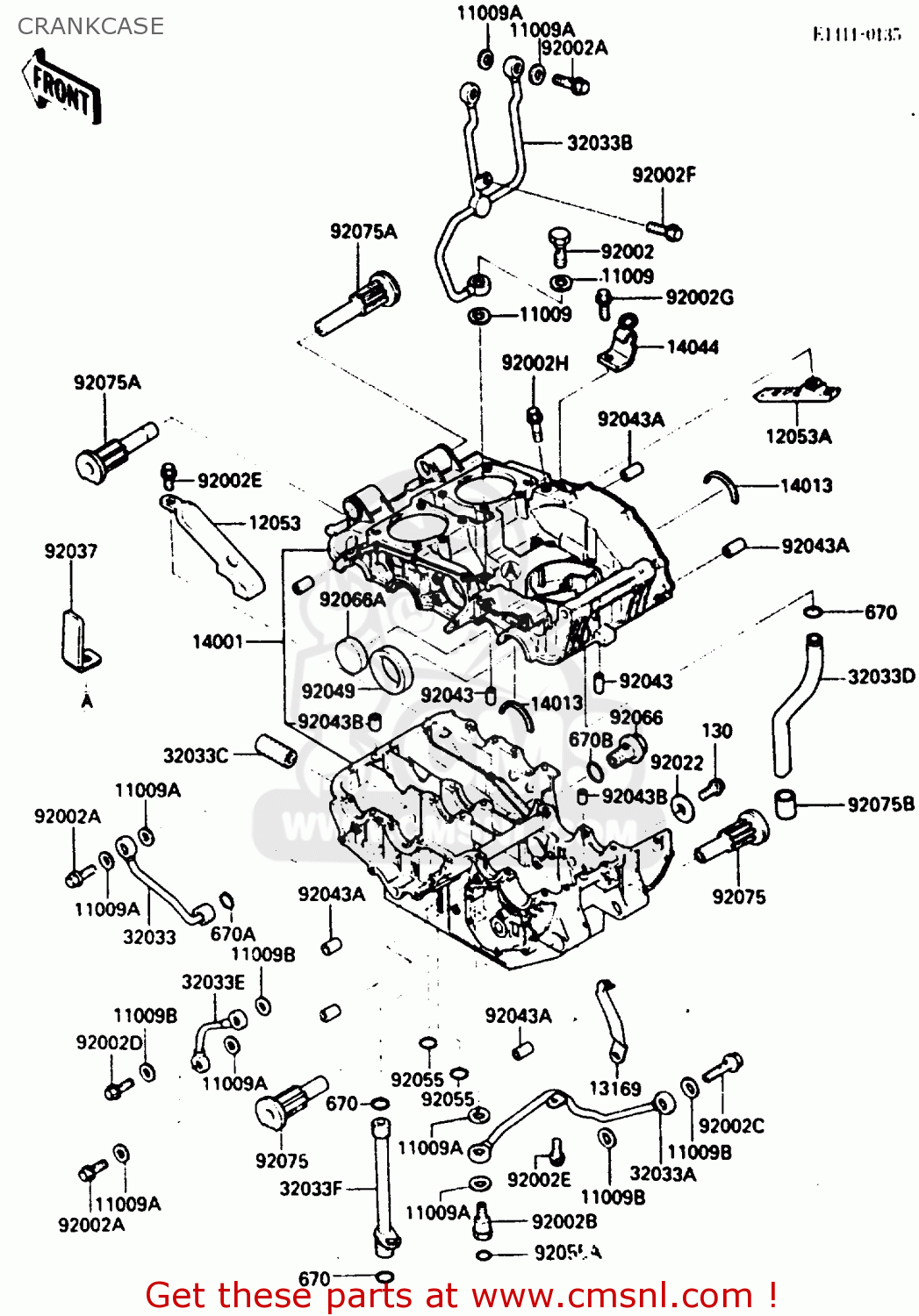

CRANKCASE

ref

part #

description

quantity

11009

110091105
ref: 11009

GASKET,10X14.5X1.5 (NAS)

€ 4.00

11009A

110091344
ref: 11009A

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11009B

92065096
ref: 11009B

GASKET,FUEL COCK (NAS)

€ 3.00

12053

120531147
ref: 12053

GUIDE-CHAIN,CRANKCASE

€ 30.50

12053A

120531148
ref: 12053A

GUIDE-CHAIN,CRANKCASE

€ 31.50

13169

131691896
ref: 13169

PLATE

€ 4.50

14001

140015129
ref: 14001

SET-CRANKCASE

€ 952.00

14013

14013004
ref: 14013

RING-BEARING SETTING

€ 7.00

14044

140441055
ref: 14044

HOLDER-CABLE

€ 6.50

32033

320331529
ref: 32033

PIPE

€ 23.50

32033A

320331530
ref: 32033A

PIPE

€ 38.50

32033B

320331531
ref: 32033B

PIPE

€ 84.50

32033C

320331535
ref: 32033C

PIPE

€ 9.00

32033D

320331538
ref: 32033D

PIPE

€ 26.00

32033E

320331539
ref: 32033E

PIPE

€ 29.50

32033F

320331574
ref: 32033F

PIPE

€ 39.50

92002

920011900
ref: 92002

BOLT,OIL,L=23

€ 3.50

92002A

920021429
ref: 92002A

BOLT,8X20

€ 7.00

92002B

920021467
ref: 92002B

BOLT

€ 19.00

92002C

920021471
ref: 92002C

BOLT,BANJO,6X28

€ 12.00

92002D

920021473
ref: 92002D

BOLT,BANJO,6X19

€ 8.50

92002E

920021563
ref: 92002E

BOLT,6X12

€ 2.00

92002F

920021569
ref: 92002F

BOLT,6X12

€ 2.50

92002G

920021570
ref: 92002G

BOLT,6X16

€ 3.00

92002H

920021571
ref: 92002H

BOLT,6X16

€ 4.00

92022

42046008
ref: 92022

WASHER,6.5X24X1.2

€ 2.00

92037

920371316
ref: 92037

CLAMP

€ 1.50

92043

92042016
ref: 92043

PIN,DOWEL,6X16

€ 3.50

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92043B

920431264
ref: 92043B

PIN,DOWEL,8.2X10X14

€ 0.50

92049

920491070
ref: 92049

SEAL-OIL,AE2343F0

€ 11.50

92055

92055048
ref: 92055

RING-O,OD=18

€ 3.00

92055A

92055074
ref: 92055A

O RING

€ 5.50

92066

920661205
ref: 92066

PLUG,MAIN GALLERY

€ 19.00

92066A

920661208
ref: 92066A

PLUG,RCA 345.5

€ 10.00

92075

920751678
ref: 92075

DAMPER,L=79.5

€ 33.00

92075A

920751679
ref: 92075A

DAMPER,L=93

€ 35.50

92075B

920751742
ref: 92075B

DAMPER

€ 3.00

130

130G0614
ref: 130

BOLT,FLANGED,6X14

€ 0.50

670

670B1510
ref: 670

O RING,9.8X1.9

€ 2.50

670A

670B2010
ref: 670A

O RING,10MM

€ 1.00

670B

670B2021
ref: 670B

O RING,21MM

€ 3.00
