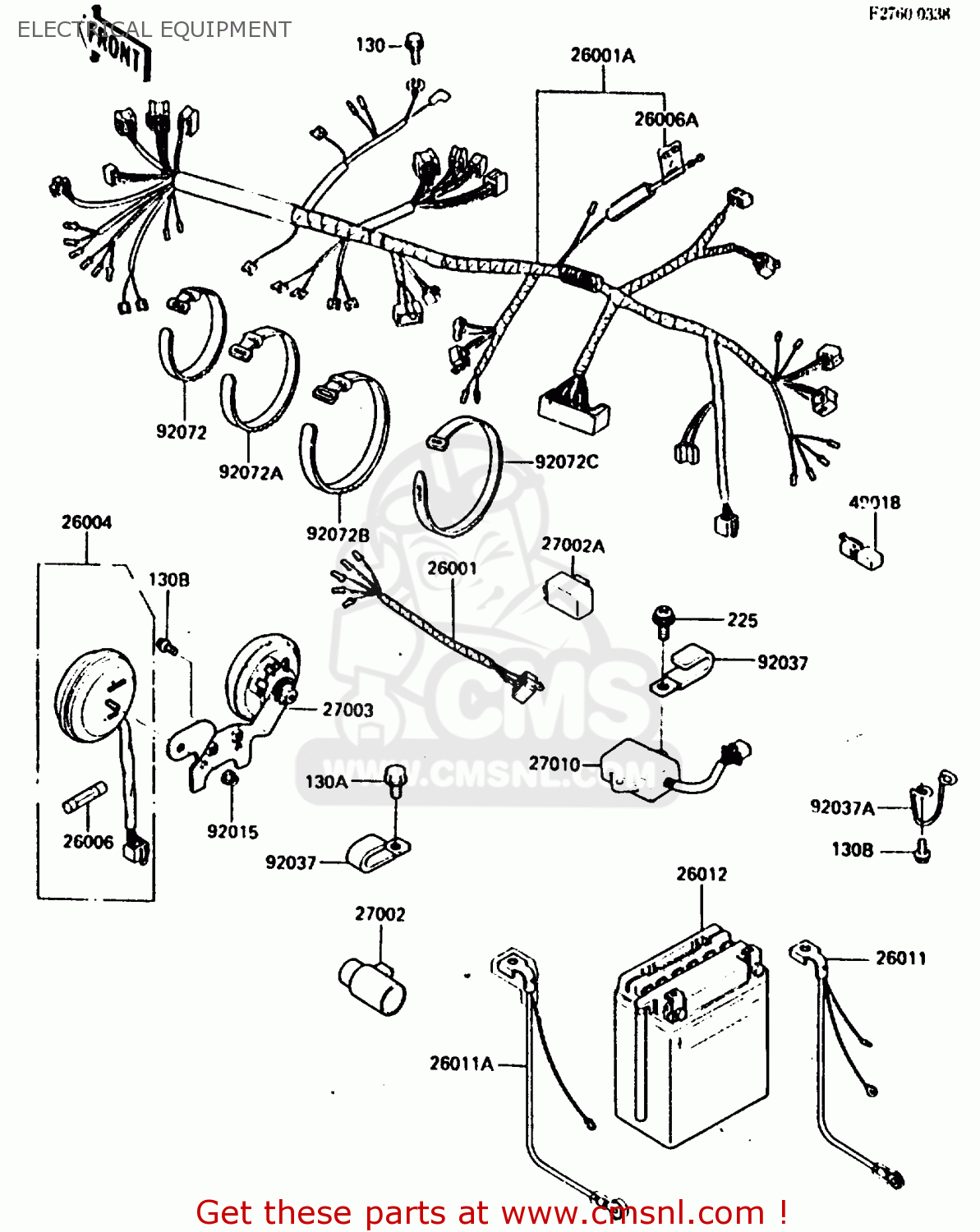

ELECTRICAL EQUIPMENT

ref

part #

description

quantity

26001

260011689
ref: 26001

HARNESS,RR

€ 28.00

26001A

260011723
ref: 26001A

HARNESS,MAIN

€ 232.50

26004

260041059
ref: 26004

FUSE-ASSY

€ 76.00

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

260061059
ref: 26006A

FUSE,30A,L=30

€ 3.00

26011

260111291
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 20.00

26011A

260111296
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 16.50

26012

260121074
ref: 26012

BATTERY,12V 12AH,FB12

€ 73.00

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021053
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 33.50

27003

270031217
ref: 27003

HORN

€ 44.00

27010

270101166
ref: 27010

SWITCH,TURN SIGNAL OP

€ 47.00

49018

490181053
ref: 49018

DIODE

€ 25.50

92015

920151237
ref: 92015

NUT,FLANGED,6MM,BLACK

€ 3.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371663
ref: 92037A

CLAMP,HARNESS

€ 6.00

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072036
ref: 92072A

BAND,FUEL TANK

€ 3.50

92072B

920721087
ref: 92072B

BAND,L=278

€ 3.50

92072C

920721197
ref: 92072C

BAND

€ 5.00

130

130B0608
ref: 130

BOLT,FLANGED,6X8

€ 0.50

130A

130B0610
ref: 130A

BOLT,FLANGED,6X10

€ 0.50

130B

130C0614
ref: 130B

BOLT-FLANGED,6X14

€ 1.50

225

225B0620
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

all assemblies
