FENDER
EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

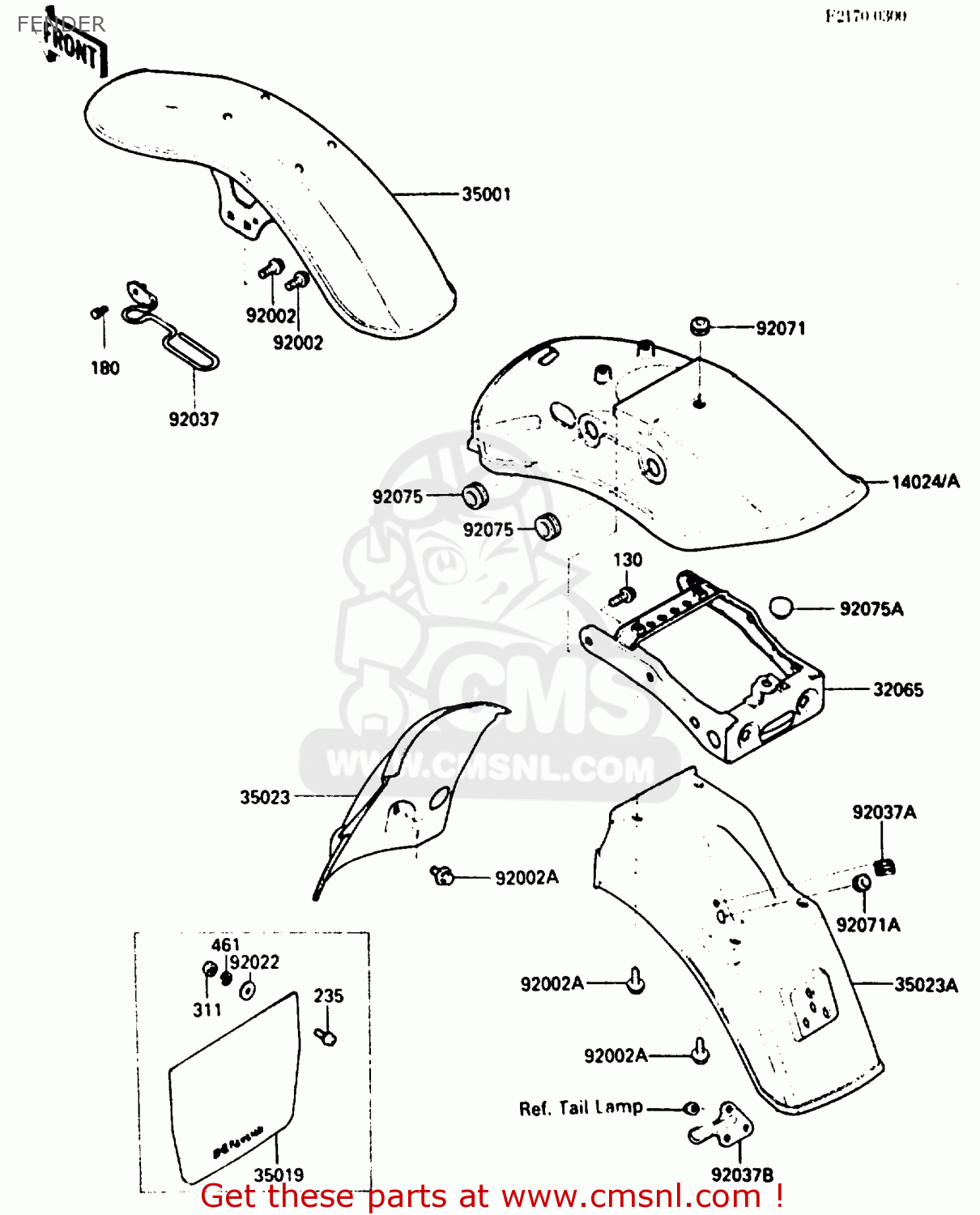

Fender diagram EN400A2 VULCAN 1986 CANADA / LIQUID COOLED
FENDER EN400A2 VULCAN 1986 CANADA / LIQUID COOLED
×
prices are in EUR
ref
part #
description
quantity
14024
140251710A5
ref: 14024
COVER,TAIL,C.P.RED
€ 122.00
14024A
140251710H8
ref: 14024A
COVER,TAIL,EBONY
€ 87.00
32065
320651176
ref: 32065
BRACKET-FENDER
€ 67.00
35001
350011111
ref: 35001
FENDER-ASSY-FRONT,CR
€ 122.00
35019
35037026
ref: 35019
FLAP,FENDER,RR
€ 17.00
35023
350231127
ref: 35023
FENDER-REAR,FR
€ 46.50
35023A
3502311336Z
ref: 35023A
FENDER-REAR,RR,BLACK
€ 66.50
92002
920021200
ref: 92002
BOLT,FLANGED,8X16
€ 3.00
92002A
920021219
ref: 92002A
BOLT,6X16
€ 3.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92037
920371116
ref: 92037
CLAMP,CABLE
€ 12.50
92037A
920371634
ref: 92037A
CLAMP,HARNESS
€ 6.00
92037B
920371601
ref: 92037B
CLAMP
€ 9.00
92071
92071019
ref: 92071
GROMMET,10MM
€ 2.50
92071A
92071024
ref: 92071A
GROMMET
€ 3.00
92075
92075104
ref: 92075
DAMPER
€ 2.50
92075A
92075281
ref: 92075A
DAMPER,9X24X14
€ 4.00
130
130D0820
ref: 130
BOLT-FLANGED
€ 0.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
235
235B0614
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
