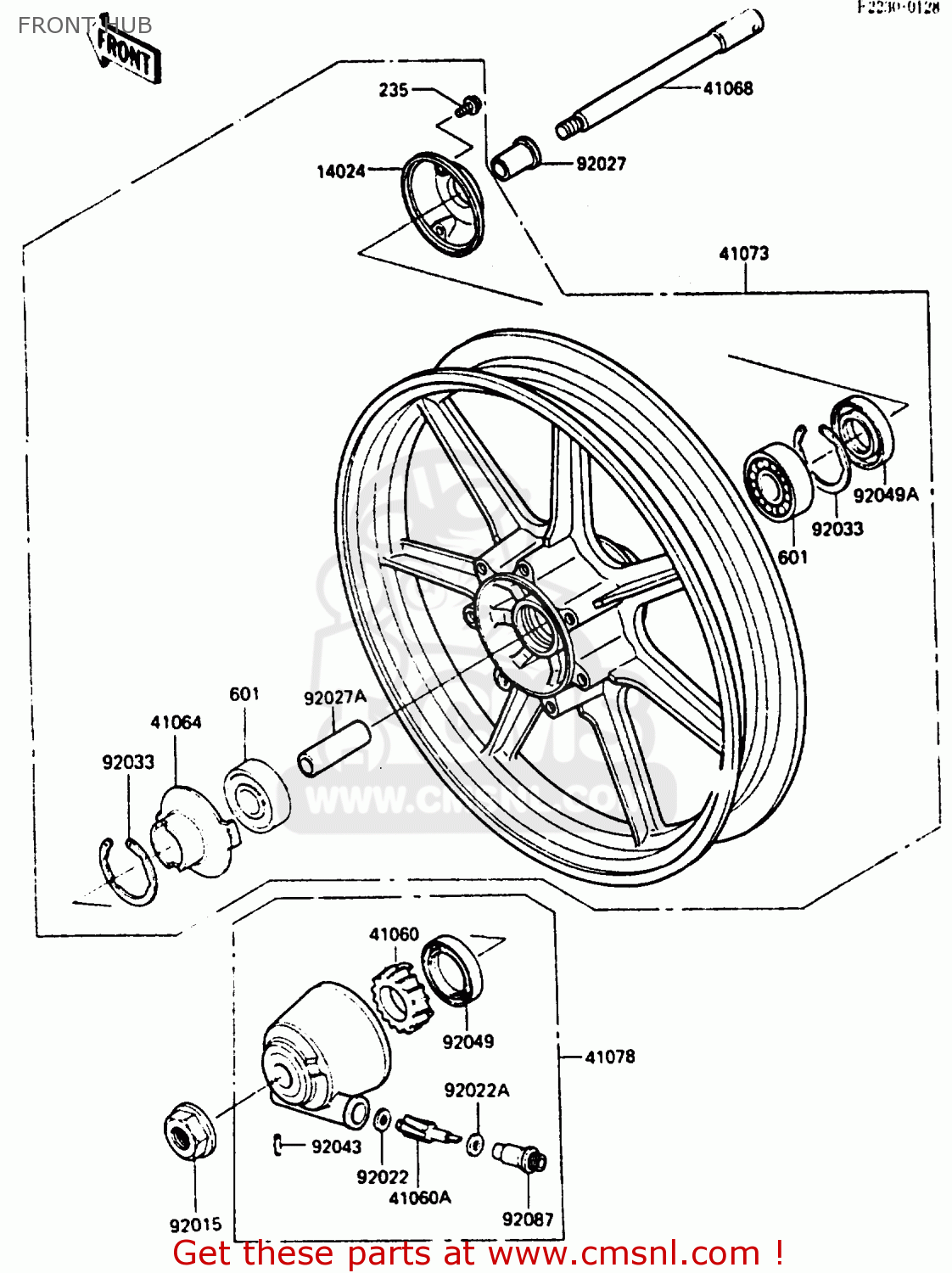

FRONT HUB

ref

part #

description

quantity

14024

140251042
ref: 14024

COVER,DUST,RH

€ 6.00

41060

41059026
ref: 41060

GEAR,SPEEDOMETER

€ 27.00

41060A

410601016
ref: 41060A

PINION,SPEEDOMETER,9T

€ 21.50

41064

410641006
ref: 41064

RECEIVER,SPEEDOMETER

€ 9.50

41068

410681189
ref: 41068

AXLE,FR

€ 55.50

41073

41073130221
ref: 41073

WHEEL-ASSY,FR,F.BLACK

€ 442.00

41078

410781024
ref: 41078

CASE-ASSY-METER GEAR,

€ 113.50

92015

920151032
ref: 92015

NUT,14M/M

€ 6.50

92022

41063001
ref: 92022

WASHER-THRST SPD PINI

€ 3.00

92022A

920221062
ref: 92022A

WASHER,PLAIN

€ 3.00

92027

920271225
ref: 92027

COLLAR,FR AXLE L=30MM

€ 11.50

92027A

920271866
ref: 92027A

COLLAR,L=70

€ 14.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92043

41082001
ref: 92043

PIN-SPRING

€ 2.50

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92049A

920491058
ref: 92049A

OIL SEAL,BJN22425

€ 7.50

92087

920871002
ref: 92087

BUSHING-METER GEAR

€ 14.50

235

235B0514
ref: 235

SCREW-PAN-WP-CROS

€ 2.00

601

601B6302U
ref: 601

BEARING-BALL

€ 29.00
