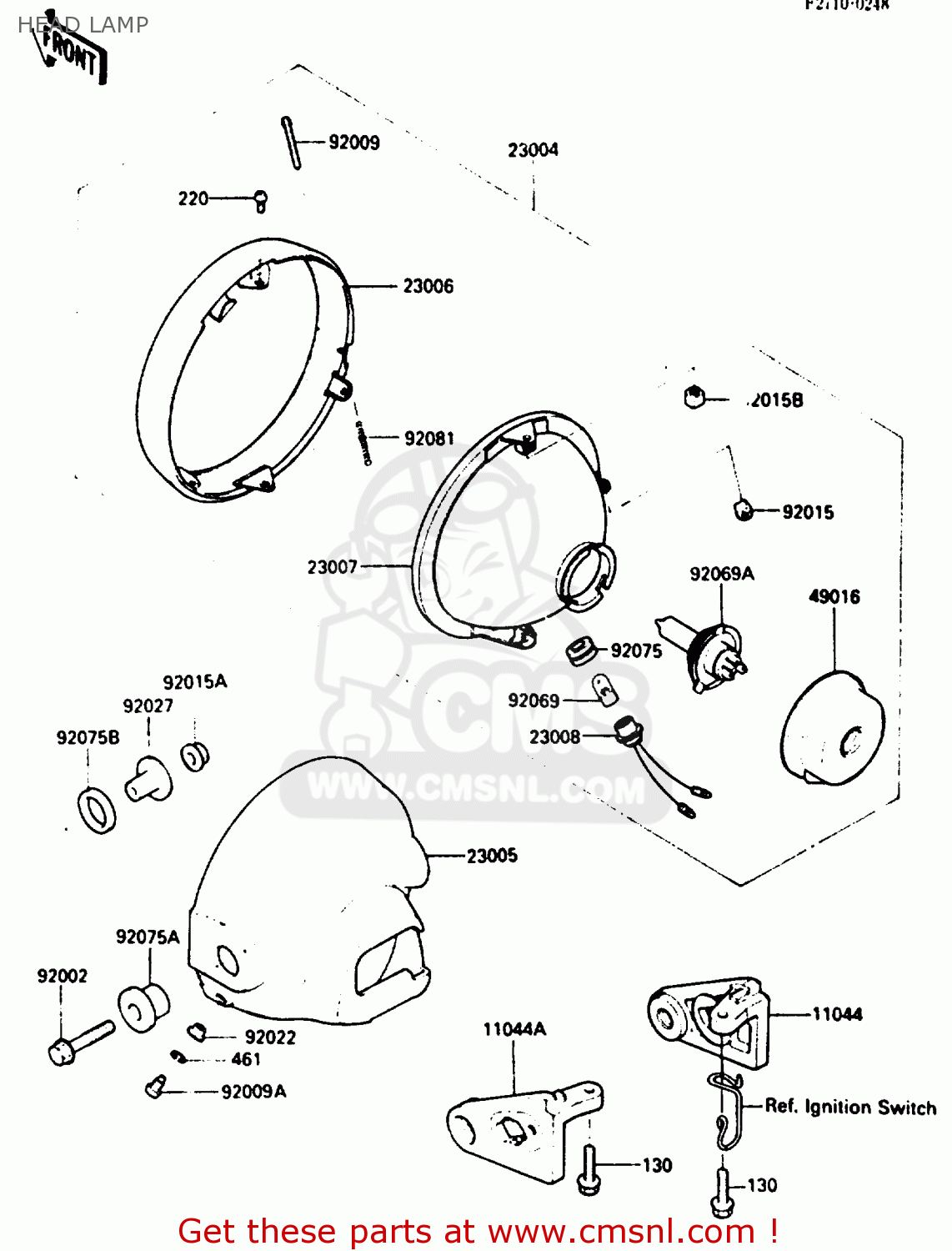

HEAD LAMP

ref

part #

description

quantity

11044

110431941
ref: 11044

BRACKET,HEAD LAMP,RH

€ 44.00

11044A

110431942
ref: 11044A

BRACKET,HEAD LAMP,LH

€ 44.00

23004

230041187
ref: 23004

LAMP-HEAD

€ 451.50

23005

230051058
ref: 23005

BODY-COMP-HEAD LAMP,C

€ 72.50

23006

230061055
ref: 23006

RIM-LAMP

€ 55.00

23007

230071131
ref: 23007

LENS-COMP,HEAD LAMP

€ 108.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92002

920021503
ref: 92002

BOLT,FLANGED,8X40

€ 4.00

92009

920091033
ref: 92009

SCREW,FOCUS ADJUSTING

€ 3.50

92009A

92011024
ref: 92009A

SCREW-PAN HEAD,5MM

€ 2.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151014
ref: 92015A

NUT,8MM

€ 0.50

92015B

920151157
ref: 92015B

NUT,5MM

€ 3.50

92022

23021010
ref: 92022

WASHER

€ 2.50

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92069

ref: 92069
(LOCAL PROCUREMENT I

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751100
ref: 92075A

DAMPER,SHOCK,PILOT BO

€ 4.50

92075B

920751110
ref: 92075B

DAMPER,HEAD LAMP FITT

€ 3.00

92081

920811701
ref: 92081

SPRING,FOCUS ADJUSTIN

€ 3.00

130

130N0825
ref: 130

BOLT-FLANGED

€ 3.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

all assemblies
