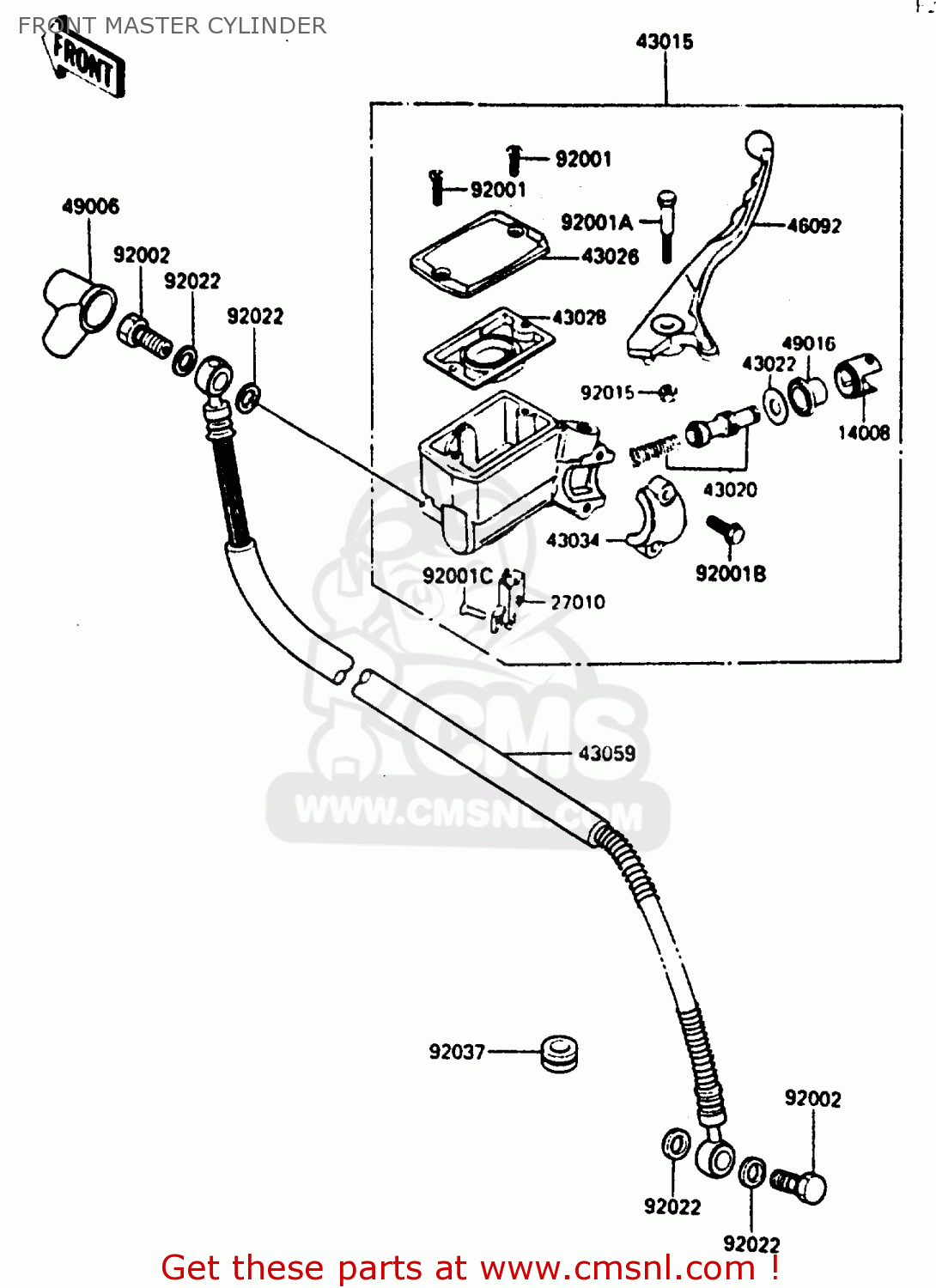

FRONT MASTER CYLINDER

ref

part #

description

quantity

14008

140081035
ref: 14008

LINER,PISTON

€ 8.00

27010

270101056
ref: 27010

SWITCH,BRAKE

€ 24.50

43015

430151312
ref: 43015

CYLINDER-ASSY-MASTER,

€ 275.00

43020

430201033
ref: 43020

PISTON-COMP-BRAKE

€ 39.00

43022

430221009
ref: 43022

STOPPER-BRAKE,PISTON

€ 3.50

43026

430261056
ref: 43026

CAP-BRAKE

€ 47.50

43028

430281029
ref: 43028

DIAPHRAGM,MASTER CYLI

€ 17.50

43034

430341001
ref: 43034

HOLDER-BRAKE,MASTER C

€ 20.50

43059

430591292
ref: 43059

HOSE-BRAKE

€ 101.50

46092

460921125
ref: 46092

LEVER-GRIP,FRONT BRAK

€ 40.50

49006

490061041
ref: 49006

BOOT,DUST

€ 7.50

49016

490161041
ref: 49016

COVER-SEAL,BRAKE PIST

€ 8.50

92001

920011055
ref: 92001

SCREW,COUNTERSUNK HED

€ 3.50

92001A

920011512
ref: 92001A

BOLT,6X37.3,BLACK

€ 5.50

92001B

920011513
ref: 92001B

BOLT,BOLT,6X25,W/WASH

€ 3.00

92001C

920011532
ref: 92001C

SCREW-COUNTERSUNK

€ 2.50

92002

920011900
ref: 92002

BOLT,OIL,L=23

€ 3.50

92015

920151191
ref: 92015

NUT,LOCK,6MM,BLACK

€ 2.00

92022

43067001
ref: 92022

WASHER,10.5X15X1.5

€ 1.50

92037

43064006
ref: 92037

GROMMET,BRAKE HOSE

€ 2.50
