BRAKE PEDAL

EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

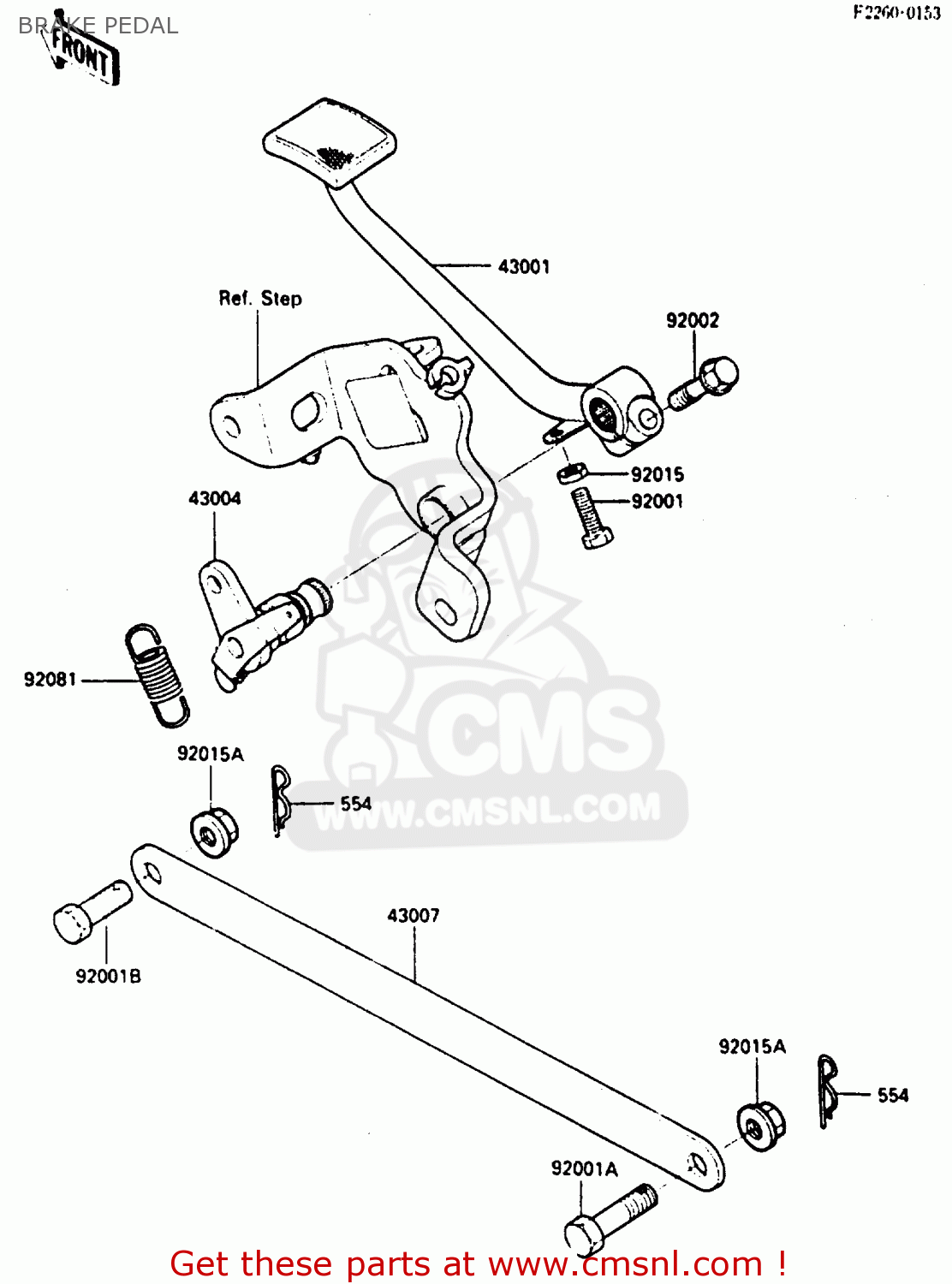

Brake pedal diagram EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

prices are in EUR

ref

part #

description

quantity

43001

430011179
ref: 43001

LEVER-BRAKE,PEDAL

€ 39.00

43004

430041110
ref: 43004

SHAFT-BRAKE

€ 31.50

43007

430071026
ref: 43007

ROD-TORQUE,RR

€ 19.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92001A

920011519
ref: 92001A

BOLT,10X37

€ 4.50

92001B

92003096
ref: 92001B

BOLT-TRQ LINK 10X29

€ 7.00

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92015

920151391
ref: 92015

NUT,6MM

€ 2.00

92015A

920151428
ref: 92015A

NUT,FLANGED,10MM

€ 3.00

92081

920811147
ref: 92081

SPRING,BRAKE PEDAL

€ 8.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00
