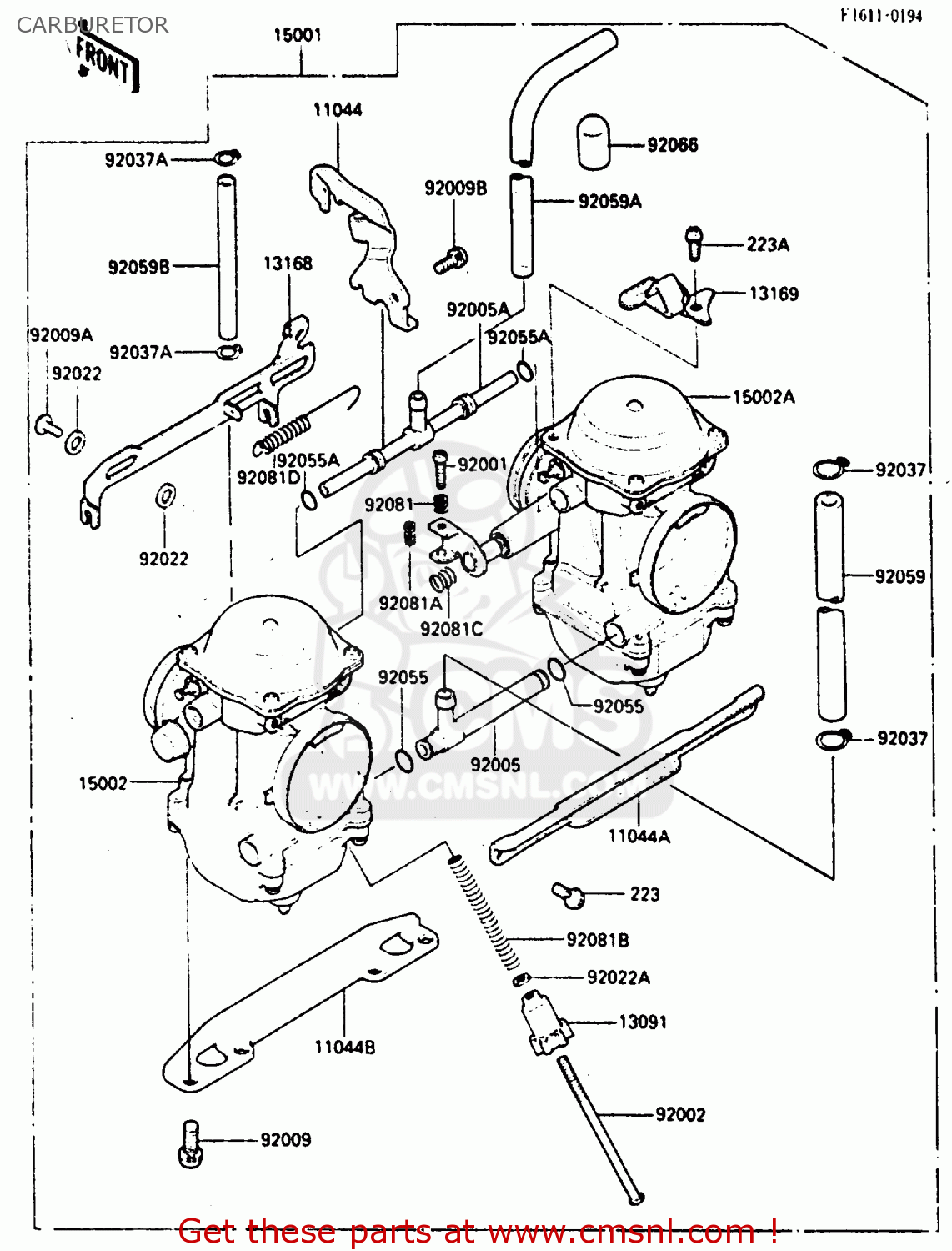

CARBURETOR

ref

part #

description

quantity

11044

110441312
ref: 11044

BRACKET,THROTTLE CABL

€ 38.50

11044A

110441313
ref: 11044A

BRACKET,CARBURETOR ST

€ 43.50

11044B

110441314
ref: 11044B

BRACKET,CARBURETOR ST

€ 45.50

13091

130911382
ref: 13091

HOLDER,THROTTLE STOP

€ 11.00

13168

131681278
ref: 13168

LEVER,STARTER

€ 54.00

13169

131691955
ref: 13169

PLATE

€ 17.00

15001

150011171
ref: 15001

CARBURETOR-ASSY

€ 1,116.50

15002

150021243
ref: 15002

CARBURETOR,LH

€ 467.50

15002A

150021244
ref: 15002A

CARBURETOR,RH

€ 467.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92002

920021552
ref: 92002

BOLT,THROTTLE STOP SC

€ 10.00

92005

920051133
ref: 92005

FITTING

€ 37.50

92005A

920051134
ref: 92005A

FITTING

€ 43.00

92009

920091129
ref: 92009

SCREW,6X16

€ 3.00

92009A

920091262
ref: 92009A

SCREW

€ 4.00

92009B

920091365
ref: 92009B

SCREW

€ 4.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371477
ref: 92037A

CLAMP,TUBE

€ 3.00

92055

920551004
ref: 92055

O RING

€ 2.50

92055A

920551223
ref: 92055A

RING-O,FUEL FITTING

€ 3.50

92059

920591597
ref: 92059

TUBE,7.3X12.5X180

€ 14.50

92059A

920591598
ref: 92059A

TUBE,6.5X9.5X260

€ 20.50

92059B

920591599
ref: 92059B

TUBE,5X9X75

€ 16.50

92066

92068006
ref: 92066

RUBBER PLUG

€ 2.50

92081

920811620
ref: 92081

SPRING,THROTTLE ADJUS

€ 3.00

92081A

920811625
ref: 92081A

SPRING,PLATE

€ 11.50

92081B

920811875
ref: 92081B

SPRING,THROTTLE STOP

€ 5.50

92081C

920811876
ref: 92081C

SPRING

€ 6.00

92081D

920811893
ref: 92081D

SPRING,STARTER LEVER

€ 12.50

223

223C0510
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

223A

223D0410
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50
