CYLINDER HEAD

EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

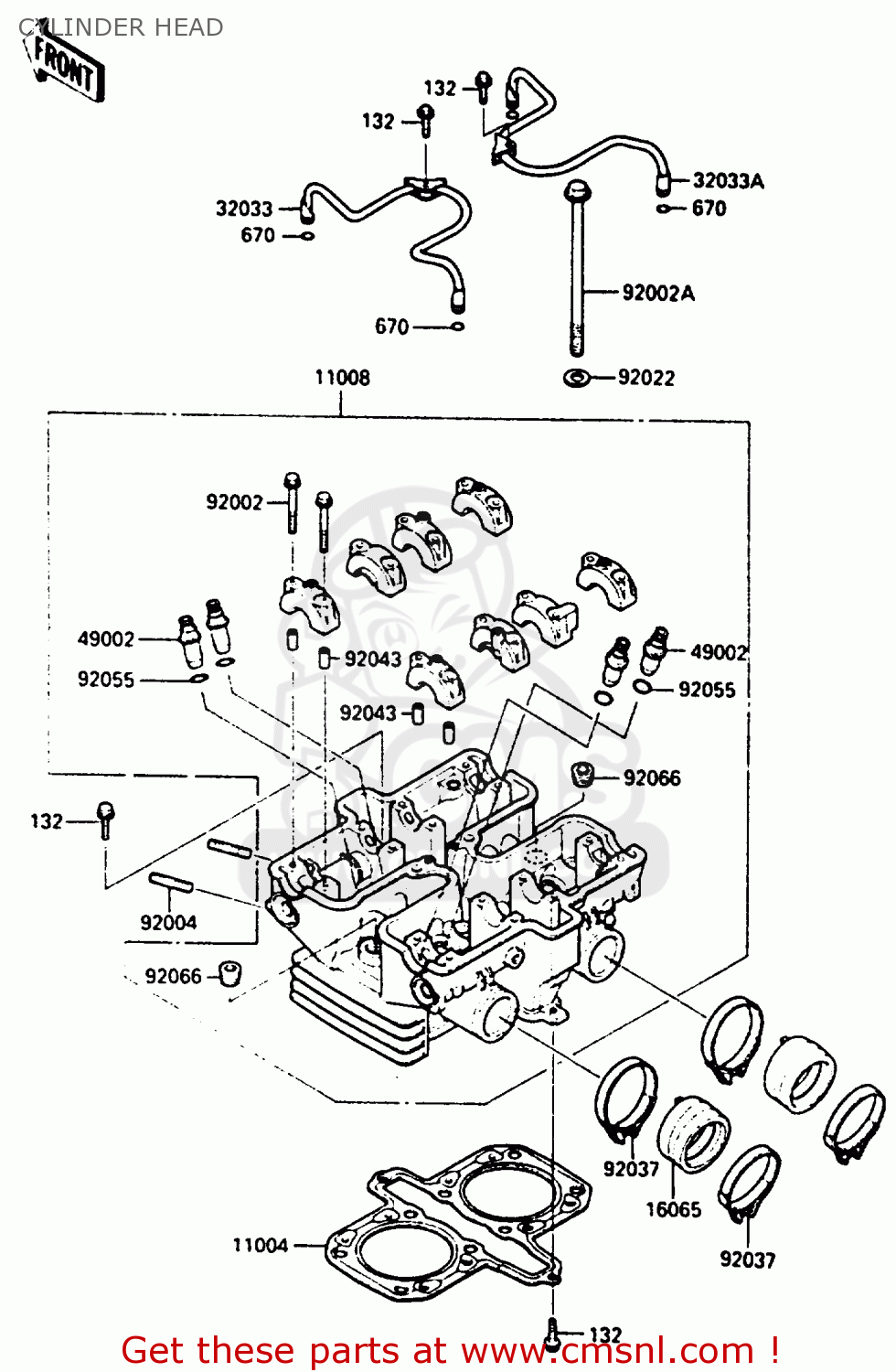

Cylinder head diagram EN400A2 VULCAN 1986 CANADA / LIQUID COOLED

prices are in EUR

ref

part #

description

quantity

11004

110041130
ref: 11004

GASKET-HEAD (NAS)

€ 61.00

11008

110081154
ref: 11008

HEAD-COMP-CYLINDER

€ 1,316.00

16065

160651128
ref: 16065

HOLDER-CARBURETOR

€ 17.00

32033

320331527
ref: 32033

PIPE,OIL,LH

€ 44.00

32033A

320331528
ref: 32033A

PIPE,OIL,RH

€ 44.00

49002

490021052
ref: 49002

GUIDE-VALVE

€ 26.00

92002

920011872
ref: 92002

BOLT,6X46

€ 2.50

92002A

920011886
ref: 92002A

BOLT,10X164

€ 10.50

92004

920041008
ref: 92004

STUD, 8X25

€ 3.50

92022

920221591
ref: 92022

WASHER,10.5X20X1.6

€ 3.00

92037

920371523
ref: 92037

CLAMP

€ 8.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551265
ref: 92055

RING-O,11.7MM

€ 6.50

92066

920661253
ref: 92066

PLUG,PT1/2X12.5

€ 6.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

670

670D1507
ref: 670

O RING,7MM

€ 1.00

CYLINDER HEAD
