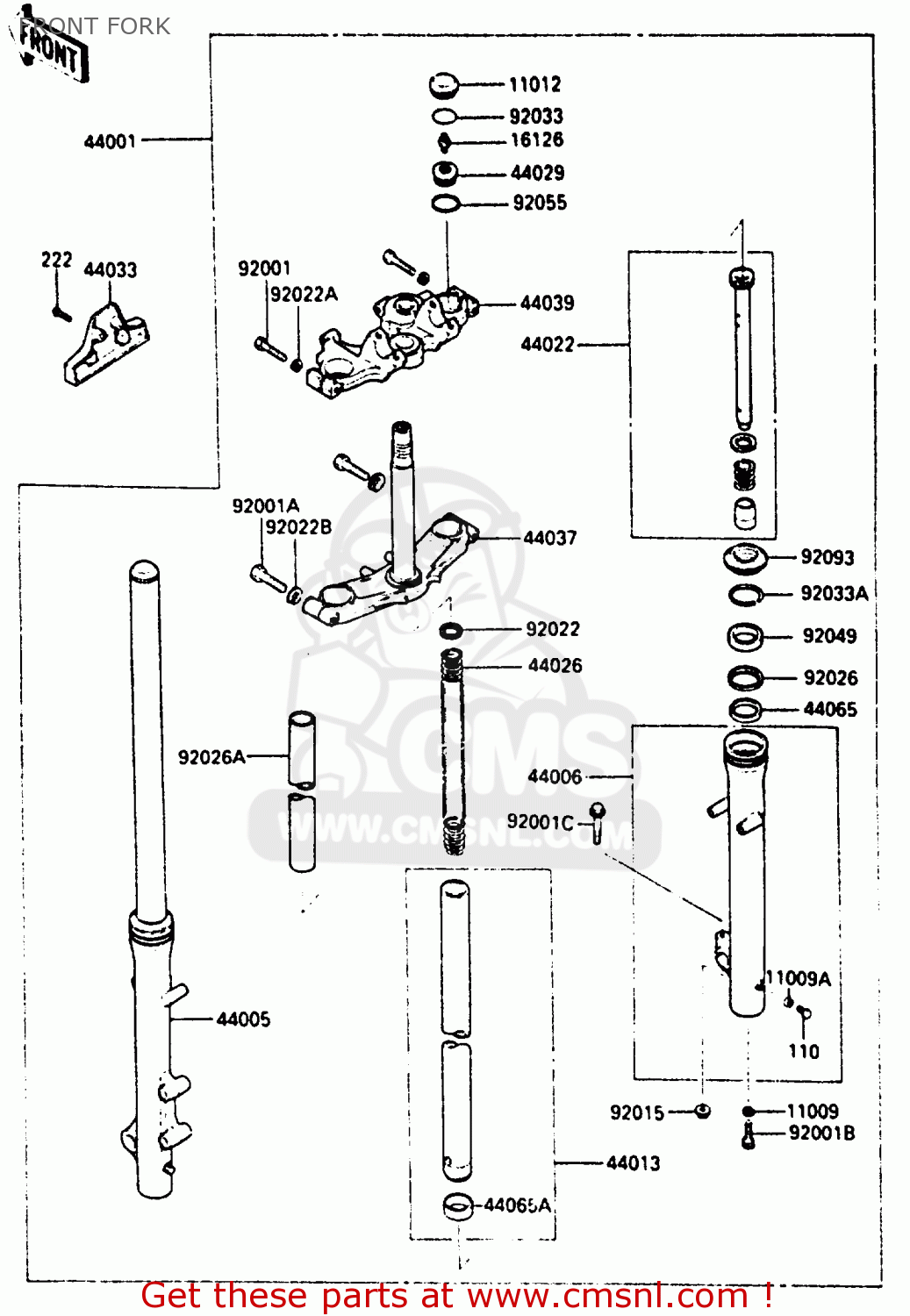

FRONT FORK

ref

part #

description

quantity

11009

44045051
ref: 11009

GASKET,FORK CYLINDER (NAS)

€ 4.00

11009A

44045052
ref: 11009A

GASKET,DRAIN PLUG (NAS)

€ 6.00

11012

110121467
ref: 11012

CAP,FORK TOP

€ 9.50

16126

161261103
ref: 16126

VALVE,VACUUM

€ 137.50

44001

440011600
ref: 44001

FORK-FRONT

€ 2,405.50

44005

440051230
ref: 44005

PIPE-LEFT FORK OUTER

€ 282.00

44006

440061230
ref: 44006

PIPE-RIGHT FORK OUTER

€ 277.00

44013

440131228
ref: 44013

PIPE-FORK INNER

€ 120.50

44022

440221178
ref: 44022

CYLINDER-FORK

€ 78.50

44026

440261297
ref: 44026

SPRING-FRONT FORK,K=0

€ 39.50

44029

440291019
ref: 44029

SEAT,FORK SPRING

€ 9.50

44033

440331164
ref: 44033

COVER-FORK,LH

€ 94.00

44037

440371188
ref: 44037

HOLDER-FORK UNDER

€ 205.00

44039

440391118
ref: 44039

HOLDER-FORK UPPER

€ 137.00

44065

440651068
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651069
ref: 44065A

BUSHING-FRONT FORK,IN

€ 16.50

92001

920011063
ref: 92001

BOLT,HEX HEAD,8X40

€ 6.50

92001A

920011454
ref: 92001A

BOLT

€ 6.50

92001B

920011466
ref: 92001B

BOLT,FLANGED,6X20,BLK

€ 2.00

92001C

920011486
ref: 92001C

BOLT,FLANGED,8X50

€ 7.50

92015

920151055
ref: 92015

NUT,8M/M

€ 3.00

92022

920221702
ref: 92022

WASHER

€ 3.00

92022A

920221703
ref: 92022A

WASHER,SPRING,8MM

€ 2.00

92022B

920221704
ref: 92022B

WASHER,SPRING,10MM

€ 2.00

92026

920261038
ref: 92026

SPACER,FORK

€ 6.50

92026A

920261252
ref: 92026A

SPACER,FORK SPRING

€ 13.50

92033

920331023
ref: 92033

CIRCLIP

€ 3.00

92033A

920331193
ref: 92033A

RING-SNAP,FORK

€ 4.00

92049

920491286
ref: 92049

SEAL-OIL,SD10205-1HS

€ 5.50

92055

920551034
ref: 92055

RING-O

€ 5.00

92093

920931196
ref: 92093

SEAL,FORK

€ 15.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

222

222C0520
ref: 222

SCREW-CSK-RD-CROS

€ 3.00
