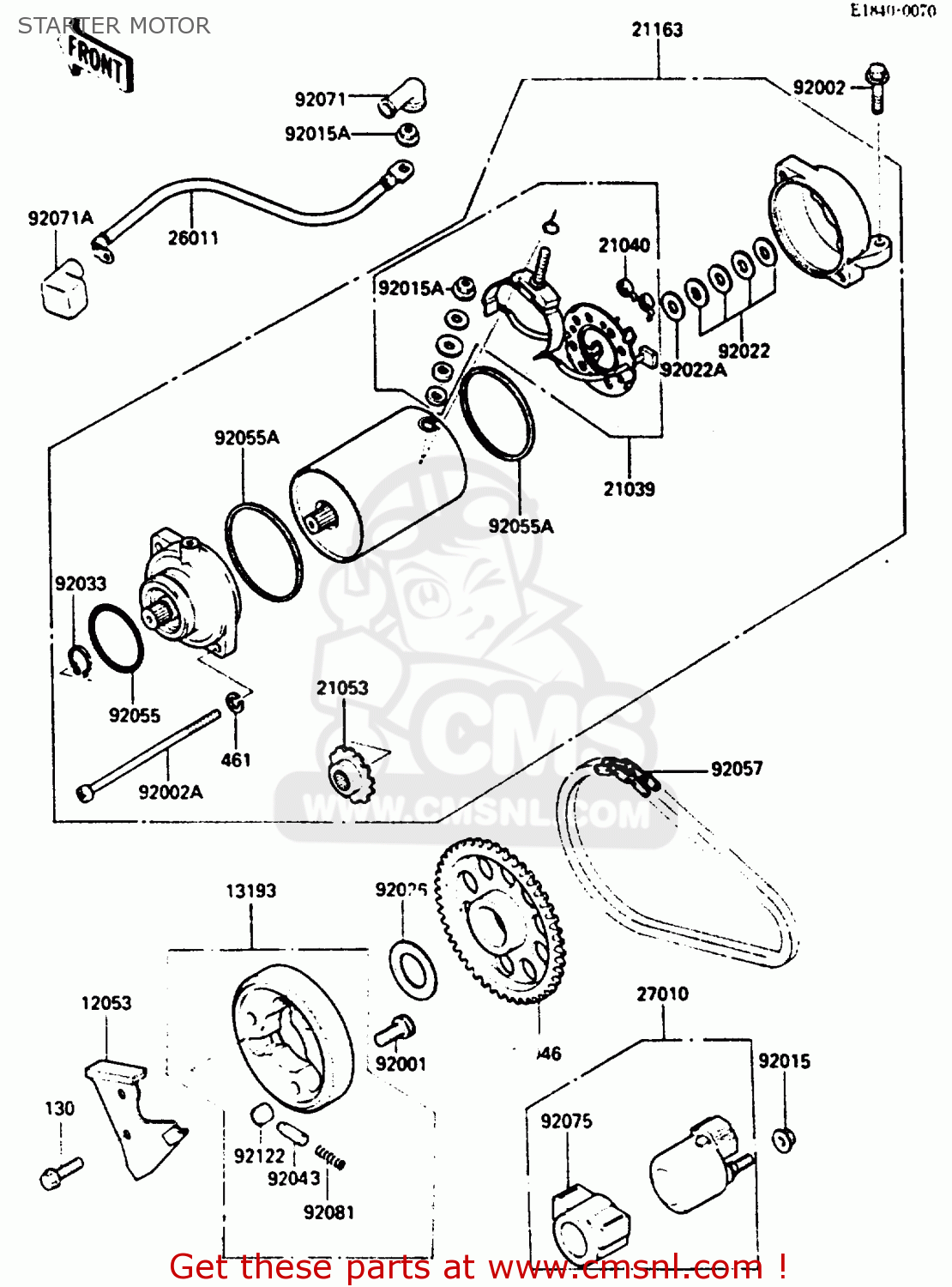

STARTER MOTOR

ref

part #

description

quantity

12046

120461072
ref: 12046

SPROCKET,ONEWAY CLUTC

€ 69.00

12053

120531149
ref: 12053

GUIDE-CHAIN

€ 23.00

13193

131931053
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 122.00

21039

210391053
ref: 21039

BRUSH,CARBON

€ 89.50

21040

210401003
ref: 21040

SPRING-BRUSH

€ 6.00

21053

21053002
ref: 21053

SPROCKET,STARTNG MOT

€ 24.50

21163

211631070
ref: 21163

STARTER-ELECTRIC

€ 729.00

26011

260111293
ref: 26011

WIRE-LEAD,STARATER MO

€ 36.00

27010

270101098
ref: 27010

SWITCH,MAGNETIC

€ 115.50

92001

92003104
ref: 92001

BOLT-HEX HEAD,8X16

€ 2.50

92002

920021086
ref: 92002

BOLT,6X25

€ 3.50

92002A

920021474
ref: 92002A

BOLT

€ 9.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151476
ref: 92015A

NUT,6MM

€ 2.50

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221132
ref: 92022A

WASHER,9.1X18X0.8

€ 4.00

92026

920261004
ref: 92026

SPACER,25X40X1

€ 4.50

92033

92033034
ref: 92033

CIRCLIP

€ 7.00

92043

92043087
ref: 92043

PIN

€ 8.00

92055

21027005
ref: 92055

'O' RING,42.8MM

€ 5.50

92035A

920551086
ref: 92035A

O RING,64MM

€ 6.50

92037

920371197
ref: 92037

CLAMP,CABLE

€ 6.00

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92071A

920711127
ref: 92071A

GROMMET,TERMINAL

€ 5.50

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92081

92081110
ref: 92081

SPRING

€ 3.00

92122

92122004
ref: 92122

ROLLER,15X13

€ 7.00

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

all assemblies
