SWINGARM
ZX1100G2 ZZR1100 1998 FG

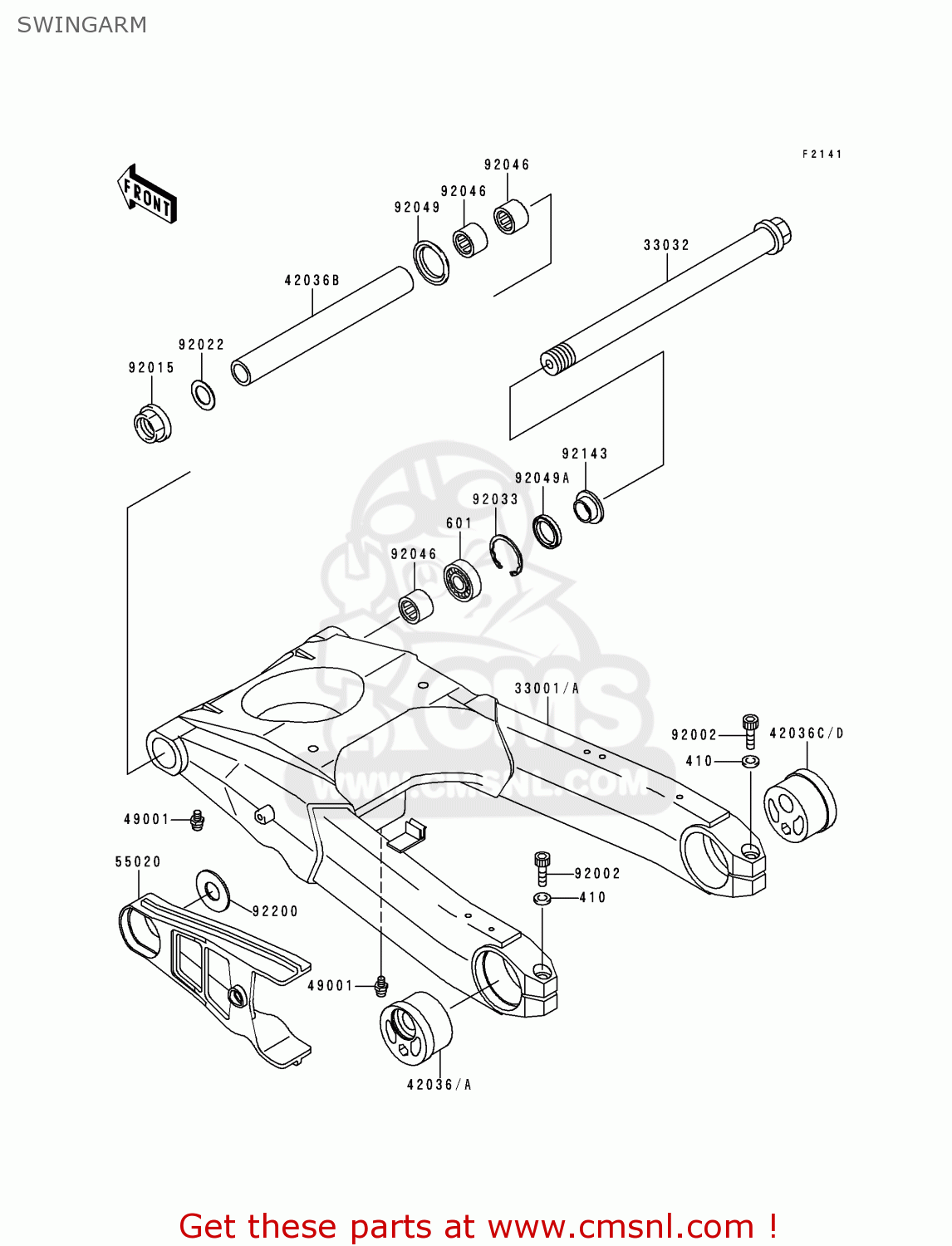

Swingarm diagram ZX1100G2 ZZR1100 1998 FG
SWINGARM ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
410
410E1000
ref: 410
W-PLAIN-S
€ 0.50
601
601A6004
ref: 601
BEARING-BALL,#6004
€ 13.00
33001A
330011483GD
ref: 33001A
ARM-COMP-SWING,G.GRAY
€ 958.50
33032
330321170
ref: 33032
SHAFT-SWING ARM
€ 51.50
42036A
420361153GD
ref: 42036A
SLEEVE,REAR AXLE,LH,G
€ 46.00
42036B
420361264
ref: 42036B
SLEEVE,SWING ARM,L=23
€ 50.50
42036D
420361265GD
ref: 42036D
SLEEVE,REAR AXLE,RH,G
€ 73.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
55020
550201528
ref: 55020
GUARD,CHAIN
€ 50.00
92002
920021452
ref: 92002
BOLT
€ 4.00
92015
920151724
ref: 92015
NUT,FLANGED,20MM
€ 10.50
92022
920221280
ref: 92022
WASHER,THRUST,20.5MM
€ 2.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
€ 21.50
92049
920491181
ref: 92049
SEAL-OIL
€ 7.50
92049A
920491314
ref: 92049A
SEAL-OIL,MHSA25 42 6
€ 9.00
92143
921431227
ref: 92143
COLLAR,SWING ARM,L=12
€ 7.50
92200
922001167
ref: 92200
WASHER,20.3X48X2.3
€ 8.00
