REAR MASTER CYLINDER
ZX1100G2 ZZR1100 1998 FG

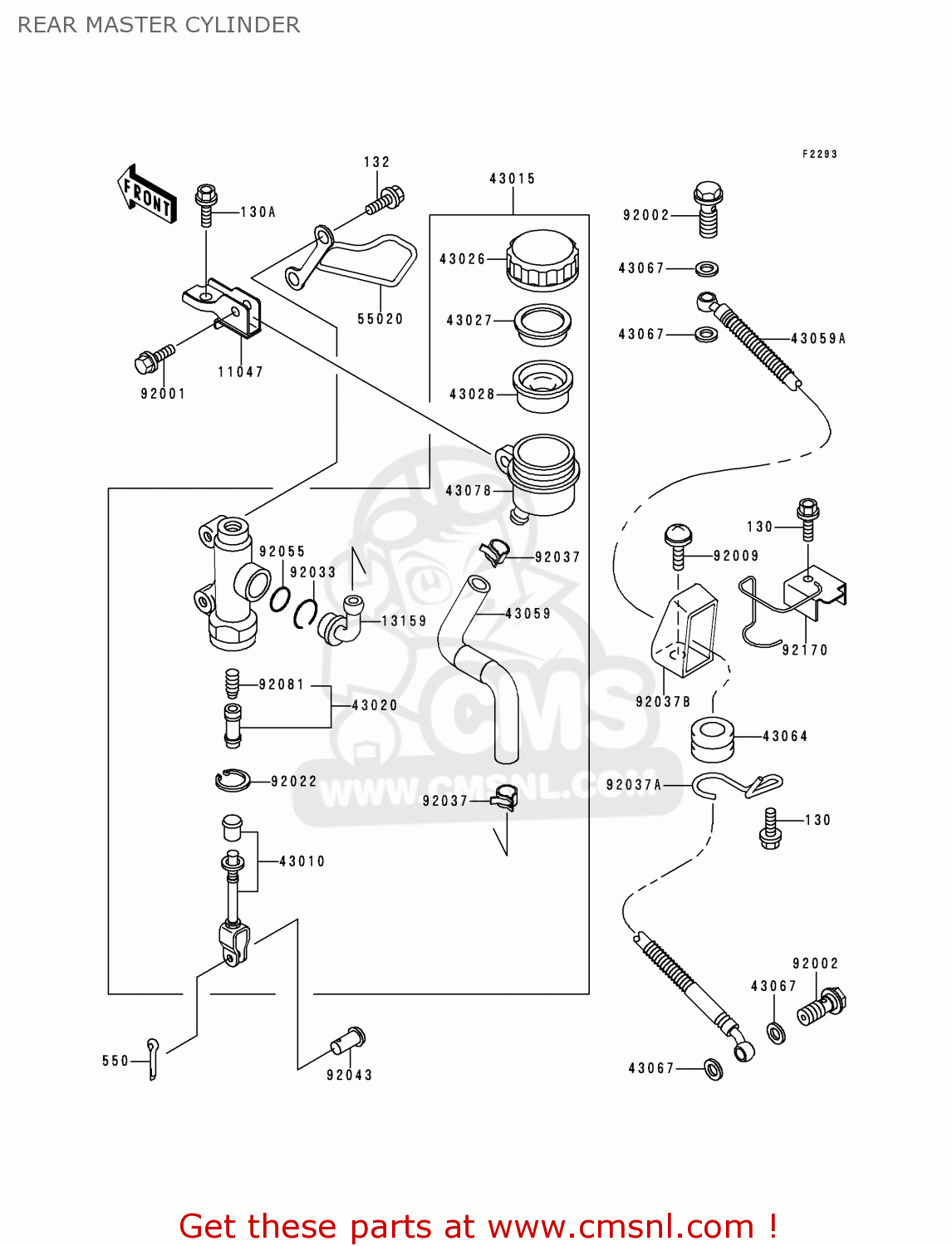

Rear master cylinder diagram ZX1100G2 ZZR1100 1998 FG
REAR MASTER CYLINDER ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
€ 1.50
132
132E0835
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
11047
110471963
ref: 11047
BRACKET,RESERVOIR TAN
€ 5.50
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
€ 9.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
€ 44.00
43015
430151531
ref: 43015
CYLINDER-ASSY-MASTER,
€ 318.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
€ 13.00
43059
430591755
ref: 43059
HOSE-BRAKE,RR MASTER
€ 33.50
43059A
430591834
ref: 43059A
HOSE-BRAKE,RR
€ 75.50
43064
43064007
ref: 43064
43064007
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
43078
430781058
ref: 43078
RESERVOIR,RR MASTER C
€ 20.00
55020
550201494
ref: 55020
GUARD,RR MASTER CYLIN
€ 13.50
92001
920011460
ref: 92001
BOLT,6X20
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
€ 3.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92022
920221601
ref: 92022
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
920371547
ref: 92037
CLAMP
€ 8.50
92037A
920371834
ref: 92037A
CLAMP,HOSE
€ 7.00
92037B
920371896
ref: 92037B
CLAMP,HOSE
€ 15.50
92043
920431303
ref: 92043
PIN,8MM
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92081
920811737
ref: 92081
SPRING
€ 8.50
92170
921701339
ref: 92170
CLAMP,HOSE
€ 10.00
