RADIATOR
ZX1100G2 ZZR1100 1998 FG

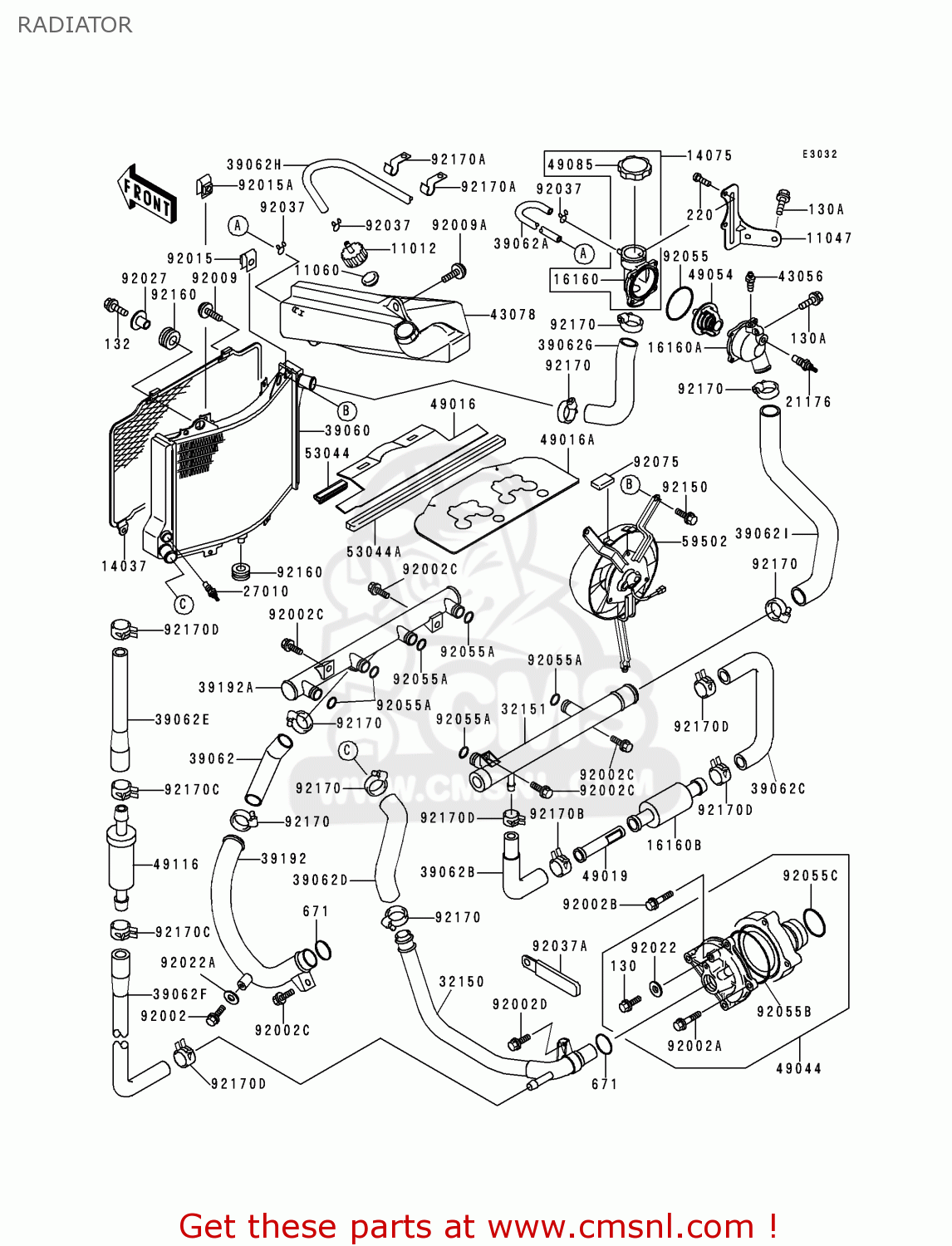

Radiator diagram ZX1100G2 ZZR1100 1998 FG
RADIATOR ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
11012
110121854
ref: 11012
CAP
€ 6.50
11047
110471887
ref: 11047
BRACKET,THERMOSTAT BO
€ 10.00
11060
110601349
ref: 11060
GASKET,RESERVOIR TANK (NAS)
€ 3.00
14037
140371172
ref: 14037
SCREEN,RADIATOR
€ 58.50
14075
140751068
ref: 14075
CAP-ASSY
€ 134.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
€ 134.00
16160A
161601117
ref: 16160A
BODY,THERMOSTAT
€ 59.00
16160B
161601151
ref: 16160B
BODY,FILTER
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
32150
321501495
ref: 32150
PIPE
€ 62.00
32151
321511401
ref: 32151
PIPE,HEAD
€ 107.00
39060
390601116
ref: 39060
RADIATOR
€ 794.50
39062
390621276
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 24.50
39062A
390621285
ref: 39062A
HOSE COOLING
€ 18.00
39062B
390621335
ref: 39062B
HOSE-COOLING
€ 4.50
39062C
390621345
ref: 39062C
HOSE-COOLING
€ 5.50
39062D
390621377
ref: 39062D
HOSE-COOLING,RADIATOR
€ 27.00
39062E
390621378
ref: 39062E
HOSE-COOLING,CHECK VA
€ 4.50
39062F
390621379
ref: 39062F
HOSE-COOLING
€ 10.00
39062G
390621531
ref: 39062G
HOSE-COOLING,THERMO-R
€ 27.00
39062H
390621533
ref: 39062H
HOSE-COOLING,OVERFLOW
€ 15.50
39062I
390621542
ref: 39062I
HOSE-COOLING,HEAD-THE
€ 39.50
39192
391921011
ref: 39192
PIPE-WATER,PUMP-CYLIN
€ 56.00
39192A
391921031
ref: 39192A
PIPE-WATER,CYLINDER
€ 118.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781131
ref: 43078
RESERVOIR
€ 39.50
49016
490161165
ref: 49016
COVER-SEAL
€ 31.00
49016A
490161166
ref: 49016A
COVER-SEAL
€ 38.50
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
49044
490441076
ref: 49044
PUMP-WATER
€ 252.50
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
53044
530441220
ref: 53044
TRIM
€ 4.50
53044A
530441269
ref: 53044A
TRIM,RADIATOR PLATE,O
€ 23.00
59502
595021105
ref: 59502
FAN-ASSY
€ 567.50
92002
920021099
ref: 92002
BOLT,6X16
€ 1.50
92002A
920021392
ref: 92002A
BOLT,6X22
€ 3.00
92002B
920021566
ref: 92002B
BOLT,6X40
€ 3.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
130A
130G0612
ref: 130A
BOLT,FLANGE,6X12
€ 0.50
132
132J0825
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92002C
920021569
ref: 92002C
BOLT,6X12
€ 2.50
92002D
920021571
ref: 92002D
BOLT,6X16
€ 4.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
€ 2.00
92009A
920091663
ref: 92009A
SCREW
€ 2.50
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371608
ref: 92037A
CLAMP
€ 5.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551282
ref: 92055A
RING-O
€ 3.00
92055B
920551423
ref: 92055B
RING-O,WATER PUMP INS
€ 6.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
€ 4.00
92075
920751446
ref: 92075
DAMPER,SIDE COVER
€ 3.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701284
ref: 92170
CLAMP,CABLE
€ 7.50
92170A
921701391
ref: 92170A
CLAMP,COOLING HOSE
€ 2.50
92170B
921701491
ref: 92170B
CLAMP
€ 5.00
92170C
921701492
ref: 92170C
CLAMP
€ 3.00
92170D
921701493
ref: 92170D
CLAMP
€ 3.00
