IGNITION SYSTEM

ZX1100G2 ZZR1100 1998 FG

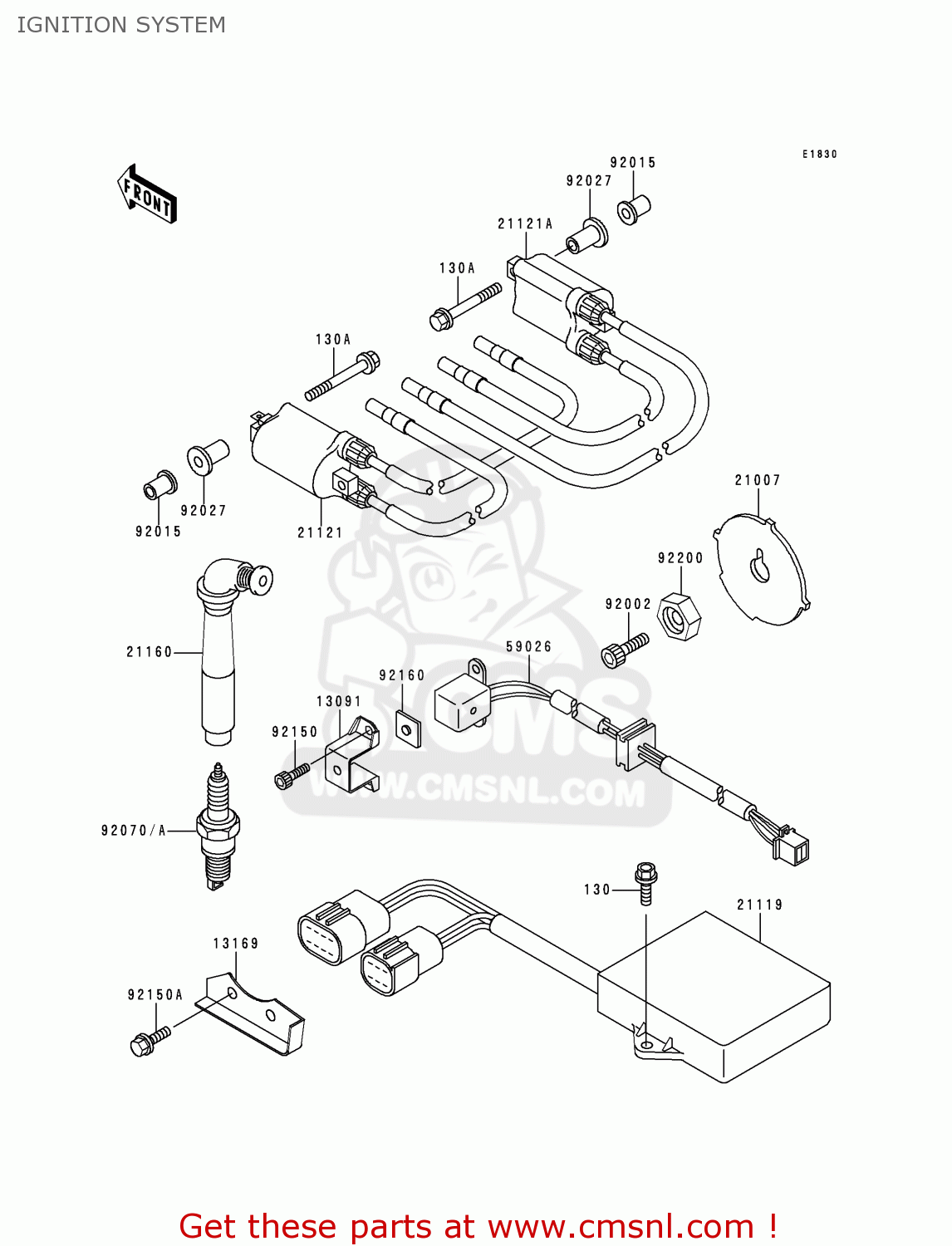

Ignition system diagram ZX1100G2 ZZR1100 1998 FG

IGNITION SYSTEM ZX1100G2 ZZR1100 1998 FG
IGNITION SYSTEM ZX1100G2 ZZR1100 1998 FG
IGNITION SYSTEM ZX1100G2 ZZR1100 1998 FG
prices are in EUR
ref
part #
description
quantity
130
130G0612
ref: 130
BOLT,FLANGE,6X12
130G0612
€ 0.50
130A
130G0645
ref: 130A
BOLT,FLANGED,6X45
130G0645
€ 0.50
13091
130911562
ref: 13091
HOLDER
130911562
€ 5.50
13169
131691748
ref: 13169
PLATE,CHAIN GUIDE
131691748
€ 10.50
21007
210071207
ref: 21007
ROTOR,PULSING
210071207
€ 23.00
21119
211191486
ref: 21119
IGNITER
€ 871.50
21121
211211220
ref: 21121
COIL-IGNITION,#1&#4
211211220
€ 161.50
21121A
211211221
ref: 21121A
COIL-IGNITION,#2&#3
211211221
€ 170.00
21160
211601087
ref: 21160
CAP-ASSY-PLUG
211601087
€ 30.50
59026
590261118
ref: 59026
COIL-PULSING
590261118
€ 117.00
92002
920021442
ref: 92002
BOLT,SOCKET,8X25
920021442
€ 3.00
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92027
92027195
ref: 92027
COLLAR
92027195
€ 4.00
92070
920701143
ref: 92070
CR9E (NGK SPARKPLUG)
€ 8.50
92070A

ref: 92070A
92150
921501180
ref: 92150
BOLT
921501180
€ 2.50
92150A
921501841
ref: 92150A
BOLT,6X12
€ 3.50
92160
921601091
ref: 92160
DAMPER
921601091
€ 3.00
92200
922001173
ref: 92200
WASHER,ROTOR
922001173
€ 6.50
