FRONT MASTER CYLINDER
ZX1100G2 ZZR1100 1998 FG

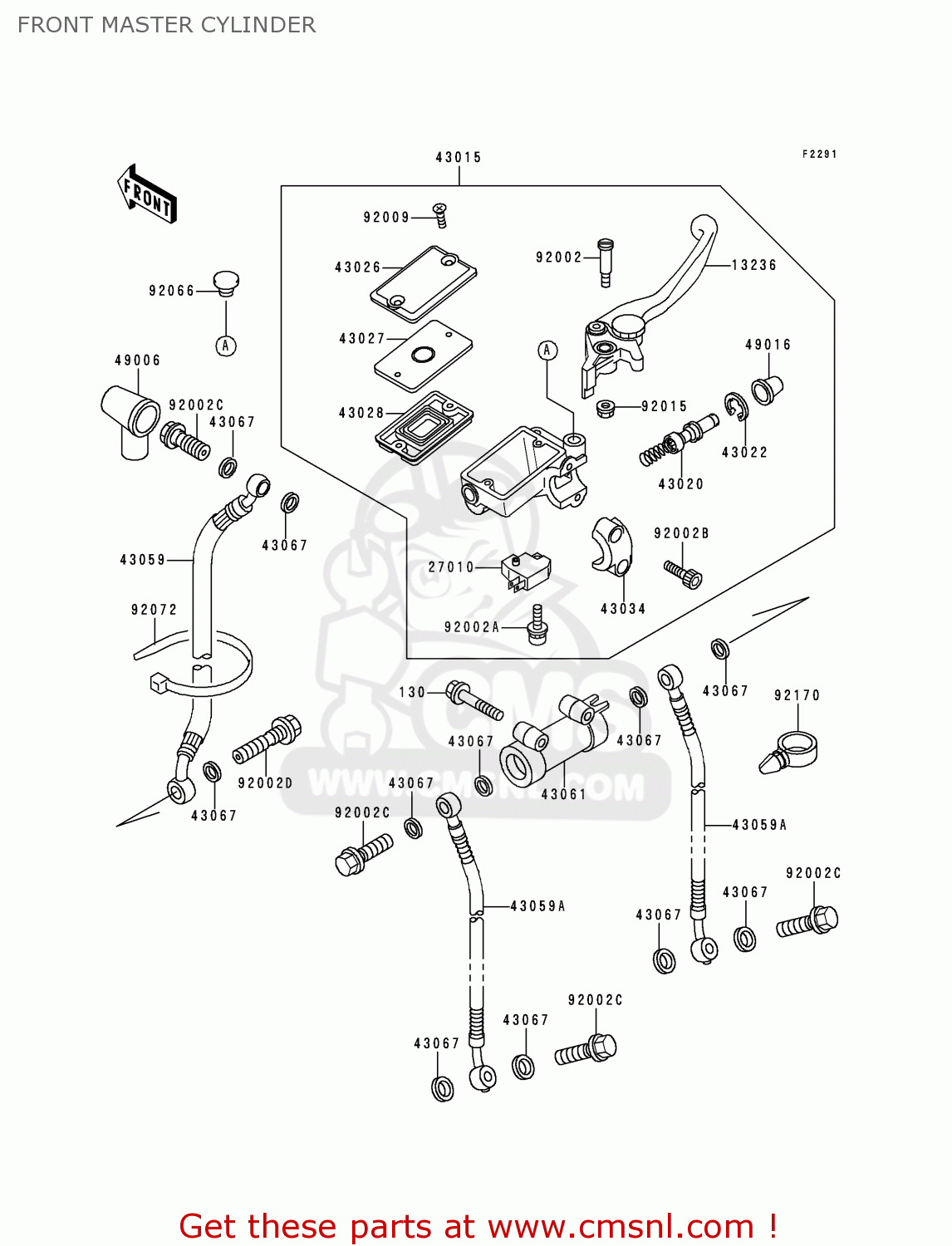

Front master cylinder diagram ZX1100G2 ZZR1100 1998 FG
FRONT MASTER CYLINDER ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
130
130J0635
ref: 130
BOLT-FLANGED,6X35
€ 3.00
13236
132361185
ref: 13236
LEVER-COMP,FRONT BRAK
€ 51.00
27010
270101170
ref: 27010
SWITCH,BRAKE
€ 26.00
43015
430151498
ref: 43015
CYLINDER-ASSY-MASTER,
€ 419.00
43020
430201054
ref: 43020
PISTON-COMP-BRAKE,FR
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.00
43026
430261076
ref: 43026
CAP-BRAKE
€ 31.00
43027
430271055
ref: 43027
PLATE-DIAPHRAGM
€ 5.50
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 15.50
43034
430341053
ref: 43034
HOLDER-BRAKE,MASTER C
€ 26.00
43059
430591832
ref: 43059
HOSE-BRAKE,FR,UPP
€ 71.00
43059A
430591833
ref: 43059A
HOSE-BRAKE,FR,LWR
€ 71.50
43061
430611002
ref: 43061
JOINT-BRAKE
€ 48.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
49006
490061040
ref: 49006
BOOT,DUST
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92002
920021322
ref: 92002
BOLT,LEVER SET
€ 8.00
92002A
920021323
ref: 92002A
BOLT
€ 2.50
92002B
920021324
ref: 92002B
BOLT,SOCKET,6X20
€ 5.00
92002C
920021888
ref: 92002C
BOLT,OIL,L=23
€ 3.50
92002D
920021909
ref: 92002D
BOLT
€ 8.50
92009
920091458
ref: 92009
SCREW,4MM
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92072
920721197
ref: 92072
BAND
€ 5.00
92170
921701067
ref: 92170
CLAMP,HOSE
€ 5.00
