FRAME
ZX1100G2 ZZR1100 1998 FG

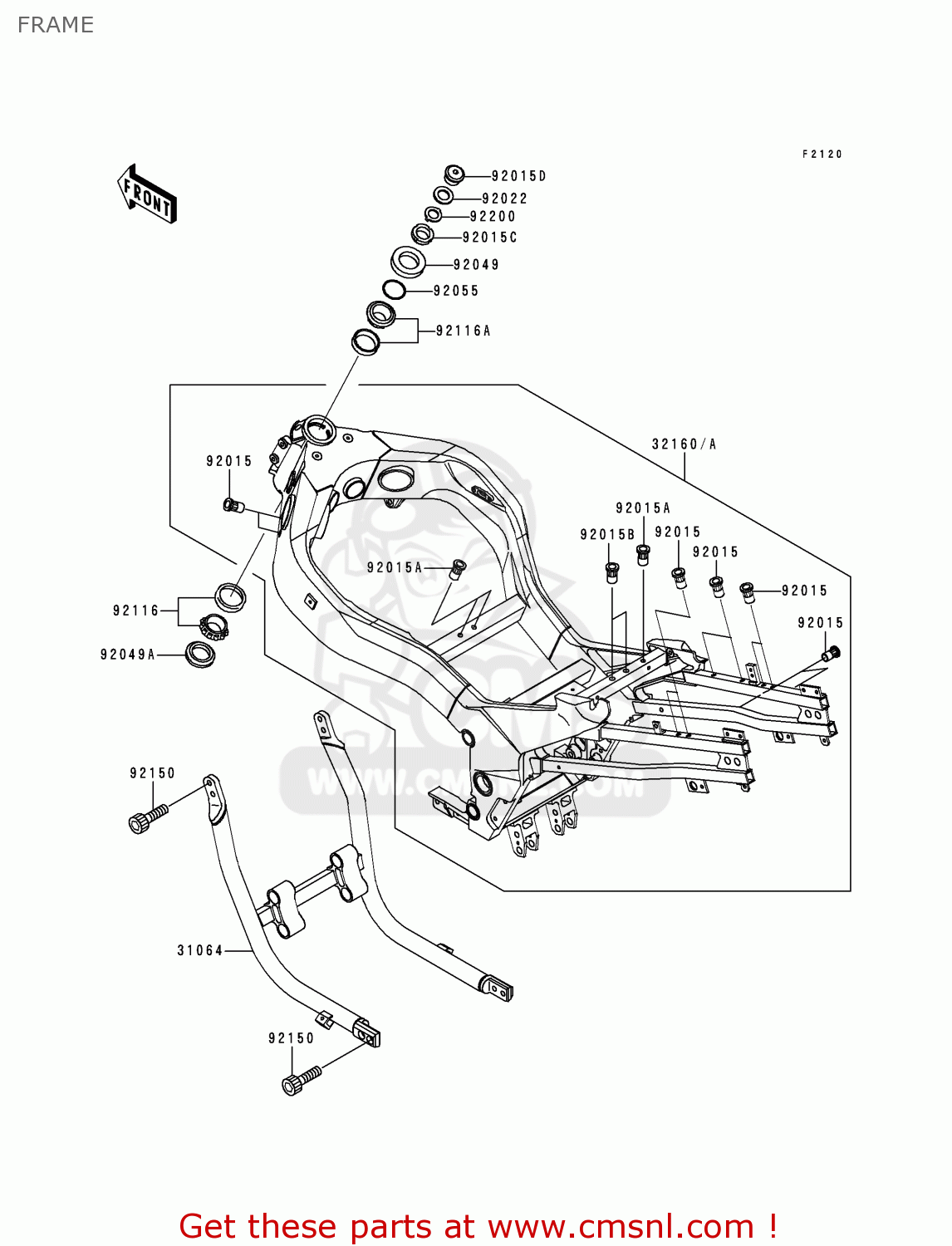

Frame diagram ZX1100G2 ZZR1100 1998 FG
FRAME ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
31064
31064114810
ref: 31064
PIPE-COMP,SIDE FRAME,
€ 297.50
32160A
321601280GD
ref: 32160A
FRAME-COMP,G.GRAY
€ 1,930.00
92015
920151791
ref: 92015
NUT,POP,6MM
€ 3.00
92015A
920151792
ref: 92015A
NUT,POP,6MM,L=16.5
€ 3.00
92015B
920151794
ref: 92015B
NUT,POP,8MM
€ 3.00
92015C
920151848
ref: 92015C
NUT,STEERING STEM,35M
€ 32.50
92015D
920151891
ref: 92015D
NUT,STEERING,25MM
€ 49.50
92022
92022250
ref: 92022
WASHER,PLAIN
€ 3.00
92049
920491382
ref: 92049
SEAL-OIL,XMH 43 75 6.
€ 16.00
92049A
920491383
ref: 92049A
SEAL-OIL,XMHE 43 55 4
€ 13.00
92055
920551452
ref: 92055
RING-O,34.5X2.0
€ 3.00
92116
921161072
ref: 92116
BEARING-ROLLER,32907J
€ 76.50
92116A
921161074
ref: 92116A
BEARING-ROLLER,32907J
€ 76.50
92150
921501690
ref: 92150
BOLT,SOCKET,10X30
€ 4.00
92200
922001083
ref: 92200
WASHER,CLAW,25.5X40X2
€ 4.50
