REAR HUB

ZX1100G2 ZZR1100 1998 FG

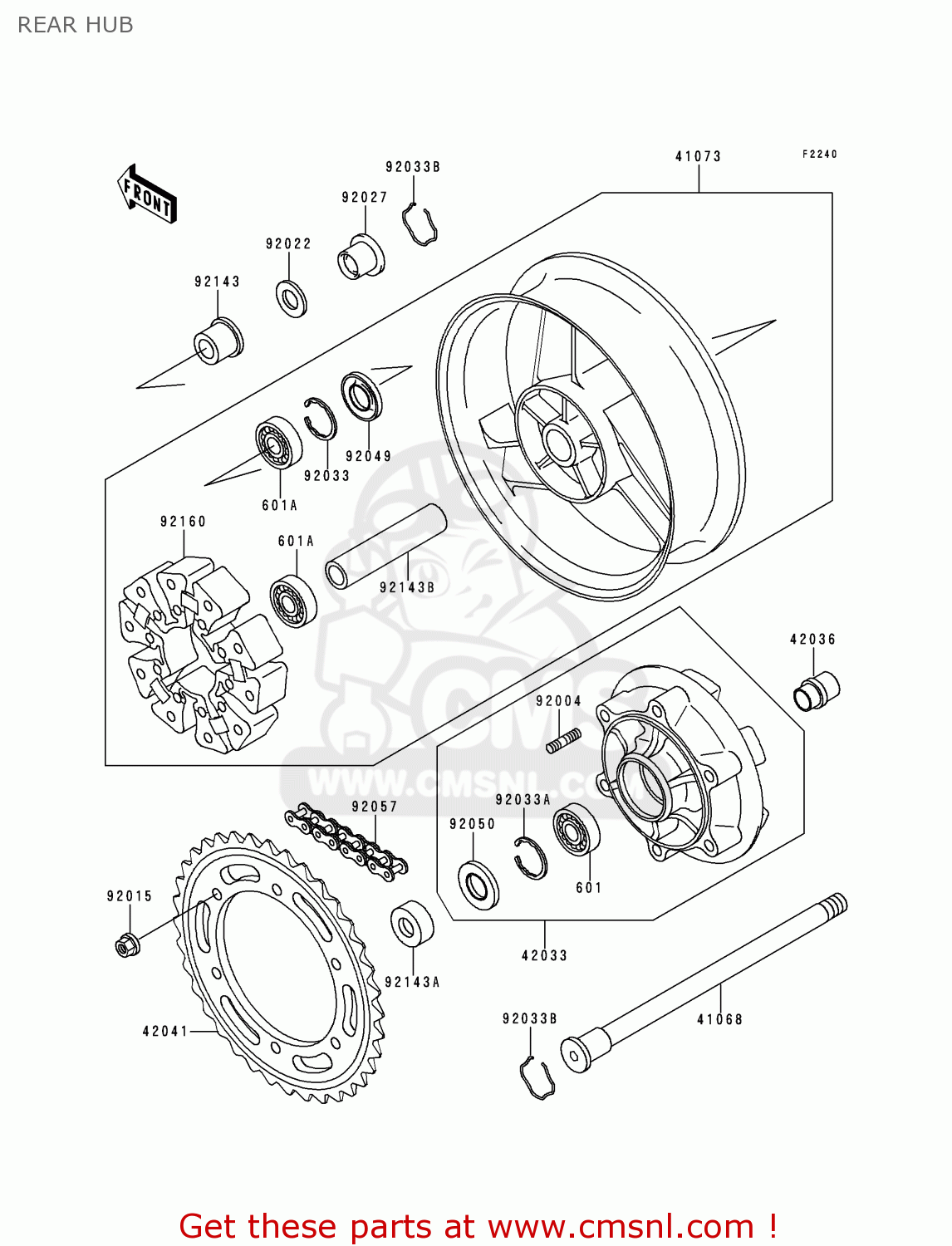

Rear hub diagram ZX1100G2 ZZR1100 1998 FG

REAR HUB ZX1100G2 ZZR1100 1998 FG
REAR HUB ZX1100G2 ZZR1100 1998 FG
REAR HUB ZX1100G2 ZZR1100 1998 FG
prices are in EUR
ref
part #
description
quantity
601
601B6206UU
ref: 601
BEARING-BALL,#6206UUC
601B6206UU
€ 41.00
601A
601B6304UU
ref: 601A
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
41068
410681354
ref: 41068
AXLE,RR
410681354
€ 89.00
41073
410731555JD
ref: 41073
WHEEL-ASSY,RR,C.GRAY
410731555JD
€ 969.00
42033
420331160EZ
ref: 42033
COUPLING-ASSY,RR HUB,
€ 241.00
42036
420361302
ref: 42036
SLEEVE,RR AXLE,L=45
420361302
€ 25.50
42041
420411441
ref: 42041
SPROCKET-HUB,44T
420411441
€ 52.00
92004
920041146
ref: 92004
STUD,10X24
920041146
€ 4.00
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92022
920221618
ref: 92022
WASHER,23X32X2.3
920221618
€ 4.00
92027
920271810
ref: 92027
COLLAR,RR AXLE,L=28
920271810
€ 21.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
920331044
€ 7.50
92033B
920331156
ref: 92033B
RING-SNAP,RR AXLE
920331156
€ 3.00
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92050
92050027
ref: 92050
OIL SEAL
92050027
€ 13.50
92057
920571368
ref: 92057
CHAIN,DRIVE,#530X110L
920571368
€ 135.50
92143
921431042
ref: 92143
COLLAR,L=23
921431042
€ 19.50
92143A
921431385
ref: 92143A
COLLAR,RR AXLE,L=12
921431385
€ 18.50
92143B
921431390
ref: 92143B
COLLAR,REAR AXLE,L=11
921431390
€ 28.50
92160
921601911
ref: 92160
DAMPER,SHOCK,RR HUB
921601911
€ 92.00
