STARTER MOTOR
ZX1100G2 ZZR1100 1998 FG

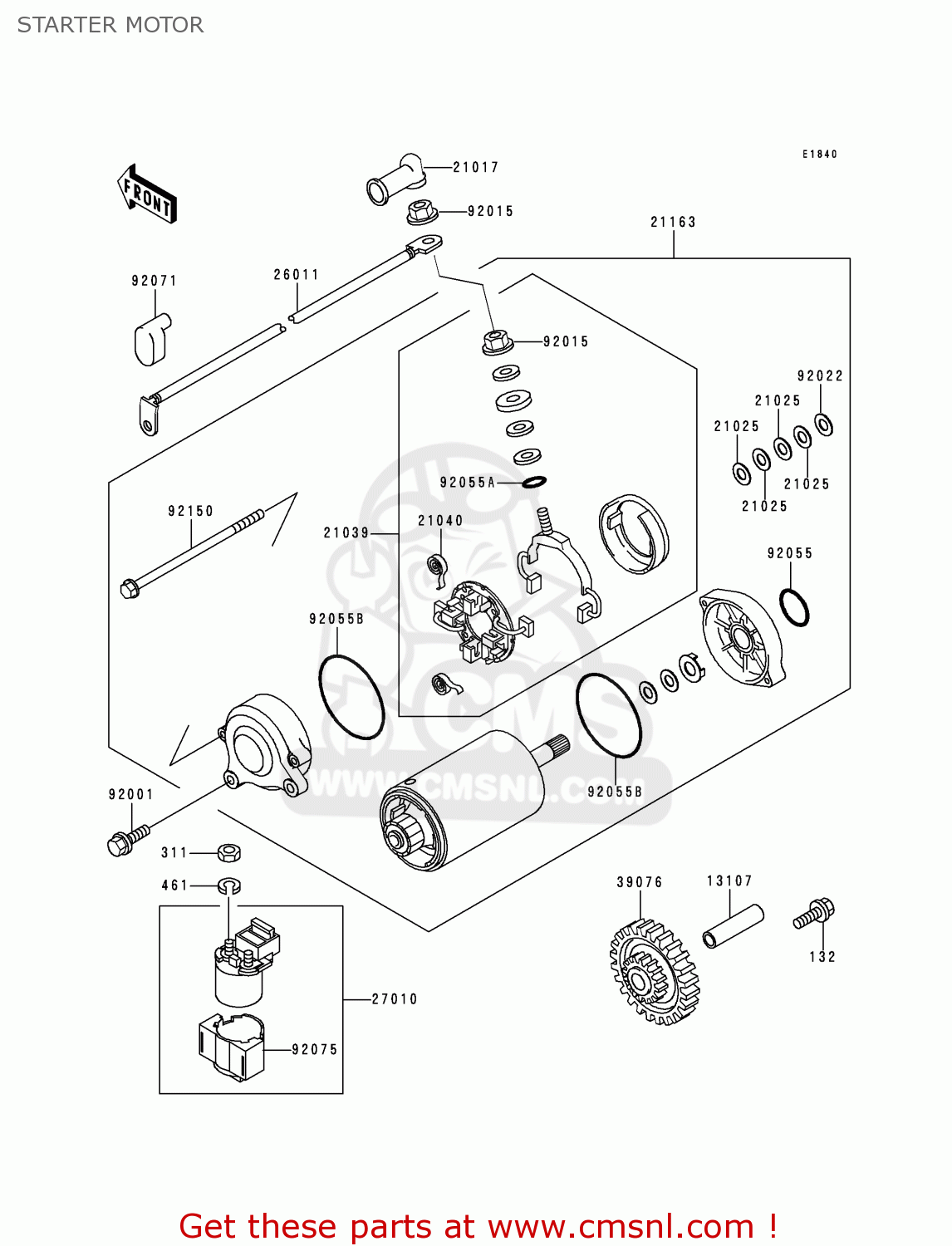

Starter motor diagram ZX1100G2 ZZR1100 1998 FG
STARTER MOTOR ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
€ 11.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631212
ref: 21163
STARTER-ELECTRIC
€ 574.50
26011
260111479
ref: 26011
WIRE-LEAD,STARTER MOT
€ 40.50
27010
270101254
ref: 27010
SWITCH,MAGNETIC
€ 124.00
39076
390761061
ref: 39076
LIMITER,STARTER IDLE
€ 105.00
92001
920011947
ref: 92001
BOLT,6X20
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92071
920711130
ref: 92071
GROMMET,TERMINAL
€ 7.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92150
921501693
ref: 92150
BOLT
€ 6.50
