FUEL TANK
ZX1100G2 ZZR1100 1998 FG

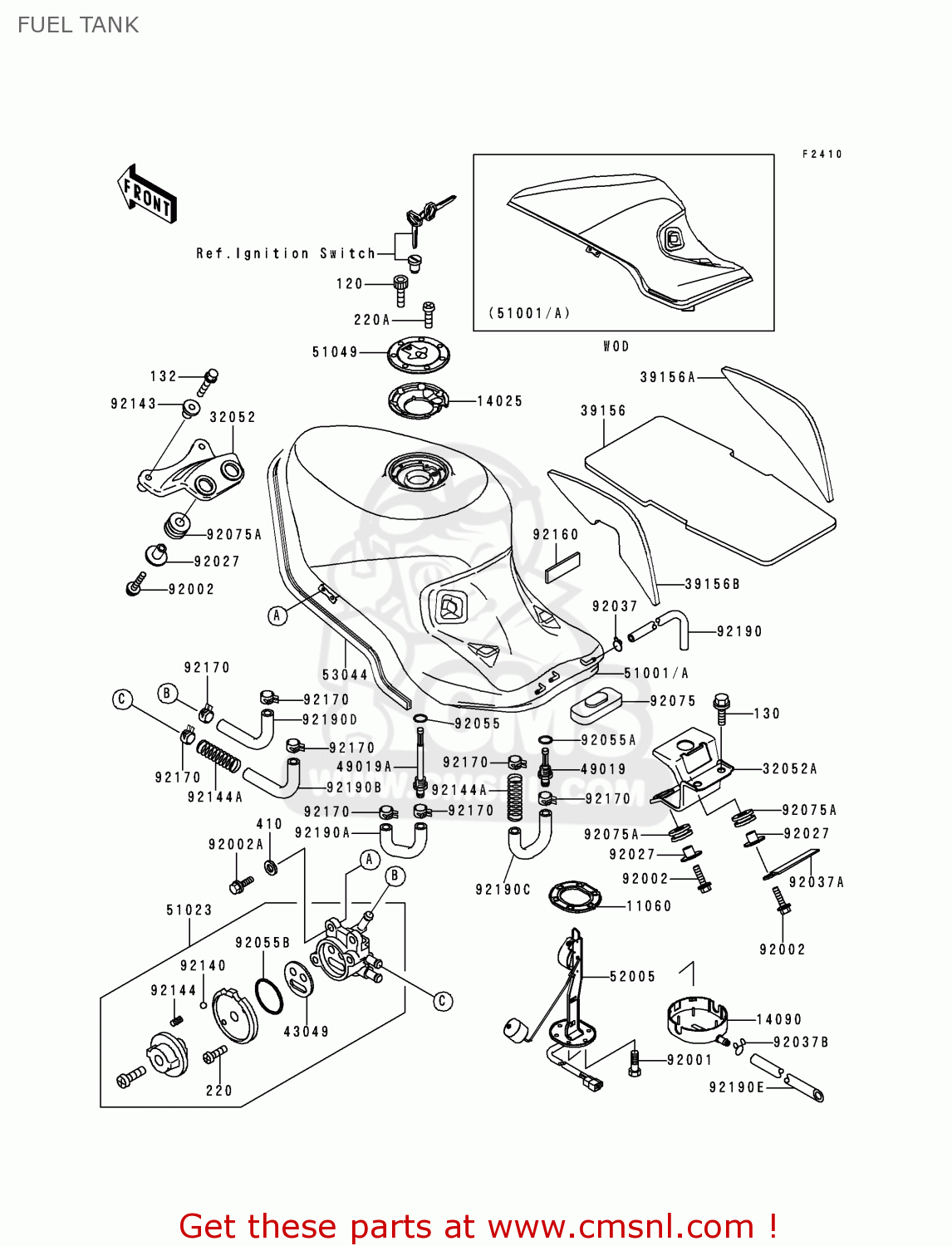

Fuel tank diagram ZX1100G2 ZZR1100 1998 FG
FUEL TANK ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
11060
110601337
ref: 11060
GASKET,FUEL GAUGE (NAS)
€ 8.50
14025
140251913
ref: 14025
COVER,TANK CAP
€ 13.50
14090
140901310
ref: 14090
COVER,FUEL GAUGE
€ 12.50
32052
320521370
ref: 32052
BRACKET-TANK,FR
€ 16.00
32052A
320521371
ref: 32052A
BRACKET-TANK,RR
€ 16.00
39156
391561334
ref: 39156
PAD,FUEL TANK,CNT
€ 39.50
39156A
391561335
ref: 39156A
PAD,FUEL TANK,RH
€ 16.00
39156B
391561336
ref: 39156B
PAD,FUEL TANK,LH
€ 16.00
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
€ 5.00
49019
490191070
ref: 49019
FILTER-FUEL
€ 15.00
49019A
490191076
ref: 49019A
FILTER-FUEL,ON
€ 19.00
51001
510011528H3
ref: 51001
TANK-COMP-FUEL,C.W.RE
€ 1,126.50
51001A
510011528H8
ref: 51001A
TANK-COMP-FUEL,EBONY
€ 1,042.00
51023
510231195
ref: 51023
TAP-ASSY,FUEL
€ 105.50
51049
510491079
ref: 51049
CAP-TANK,FUEL
€ 106.50
52005
520051114
ref: 52005
GAUGE,FUEL
€ 172.00
53044
530441268
ref: 53044
TRIM,L=1930
€ 31.00
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
€ 4.50
92002
920021237
ref: 92002
BOLT,6X20
€ 2.50
92002A
920021700
ref: 92002A
BOLT,6X14
€ 4.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
€ 2.50
92037A
920371069
ref: 92037A
CLAMP,L=60
€ 1.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92055
920551386
ref: 92055
RING-O,ID=9.5
€ 2.50
92055A
920551387
ref: 92055A
RING-O,ID=11.5
€ 2.50
92055B
920551419
ref: 92055B
RING-O,TAP LEVER
€ 3.00
92075
920751114
ref: 92075
DAMPER,FUEL TANK,RR
€ 11.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
€ 3.00
92143
921431088
ref: 92143
COLLAR,L=6.6
€ 3.50
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
€ 2.50
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
130
130J0820
ref: 130
BOLT-FLANGED,8X20
€ 0.50
132
132J0635
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
92144A
921441722
ref: 92144A
SPRING,TUBE PROTECTOR
€ 3.00
92160
921603720
ref: 92160
DAMPER
€ 8.00
92170
921701492
ref: 92170
CLAMP
€ 3.00
92190
921901365
ref: 92190
TUBE,5X8X230
€ 2.50
92190A
921901424
ref: 92190A
TUBE,ON,FILTER-TANK
€ 4.50
92190B
921901425
ref: 92190B
TUBE,ON,TANK-TAP
€ 6.00
92190C
921901426
ref: 92190C
TUBE,RES,FILTER-TANK
€ 6.00
92190D
921901427
ref: 92190D
TUBE,RES,TANK-TAP
€ 6.00
92190E
921901434
ref: 92190E
TUBE,7X10X230
€ 9.50
