BRAKE PEDAL
ZX1100G2 ZZR1100 1998 FG

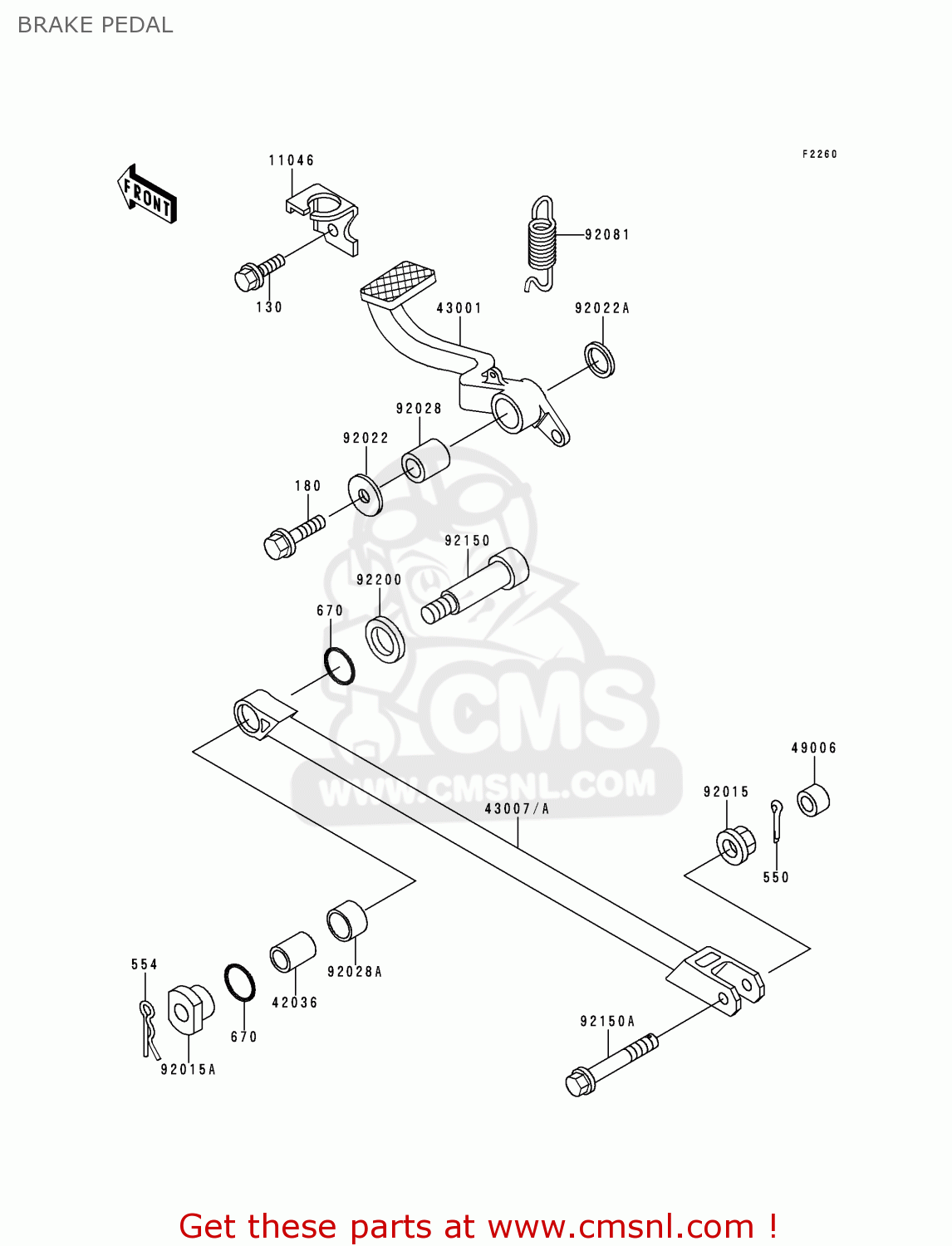

Brake pedal diagram ZX1100G2 ZZR1100 1998 FG
BRAKE PEDAL ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
130
130H0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
180
180H0614
ref: 180
BOLT-UPSET-WS
€ 1.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
670
670B2016
ref: 670
O RING,16MM
€ 1.00
11046
110461252
ref: 11046
BRACKET,REAR BRAKE SW
€ 5.50
42036
420361242
ref: 42036
SLEEVE,10.1X16X20
€ 9.50
43001
430011292
ref: 43001
LEVER-BRAKE,PEDAL
€ 41.50
43007A
430071165GD
ref: 43007A
ROD-TORQUE,G.GRAY
€ 76.00
49006
490061218
ref: 49006
BOOT
€ 3.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151747
ref: 92015A
NUT,8MM
€ 12.00
92022
920221282
ref: 92022
WASHER,7X28X1.6
€ 3.00
92022A
92022326
ref: 92022A
WASHER,15.3X24X1
€ 2.50
92028
920281282
ref: 92028
BUSHING,BRAKE PEDAL
€ 9.50
92028A
920281468
ref: 92028A
BUSHING
€ 6.00
92081
920811833
ref: 92081
SPRING,BRAKE PEDAL
€ 7.00
92150
921501167
ref: 92150
BOLT,SOCKET,8X61
€ 12.00
92150A
921501539
ref: 92150A
BOLT,FLANGED,8X47
€ 6.50
92200
922001313
ref: 92200
WASHER,10MM
€ 3.00
